Window Spring

A handy person from Florida says:
December 31, 2019

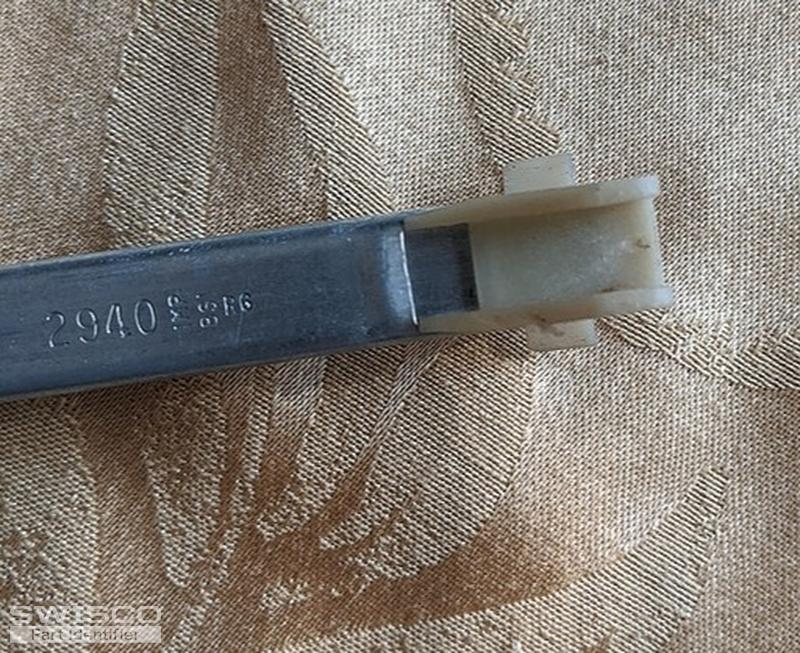

Not counting the connectors, the metal body is 30 inchese
Thumbnail of the uploaded file named 2940 balance stamp
Thumbnail of the uploaded file named IMG_20191231_120924.jpg
Thumbnail of the uploaded file named IMG_20191231_120927.jpg
Thumbnail of the uploaded file named IMG_20191231_120933.jpg
A quick learner from Florida says:
December 31, 2019

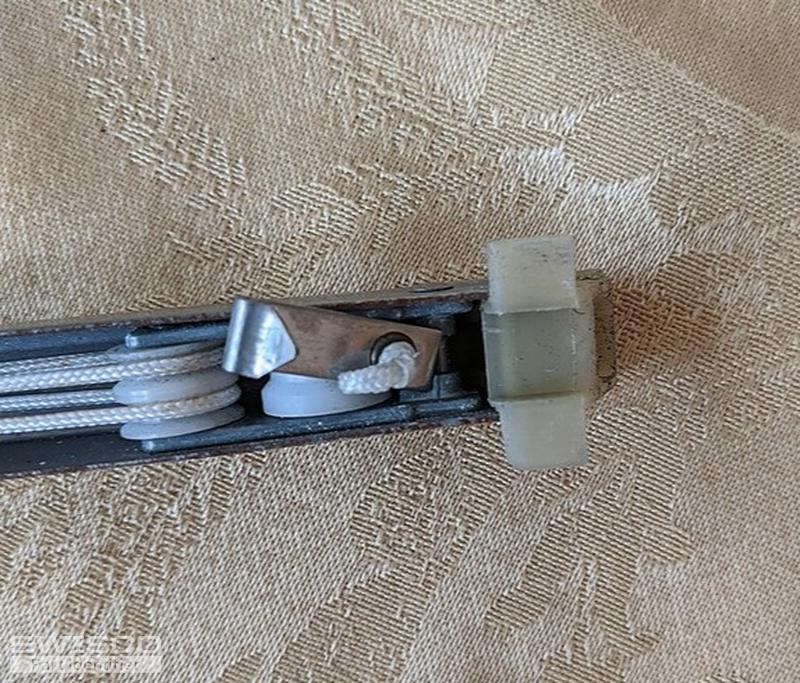

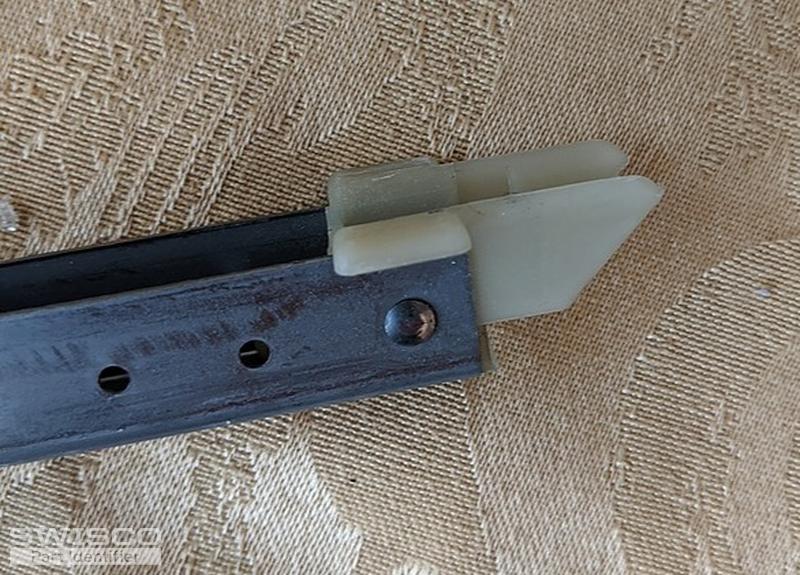

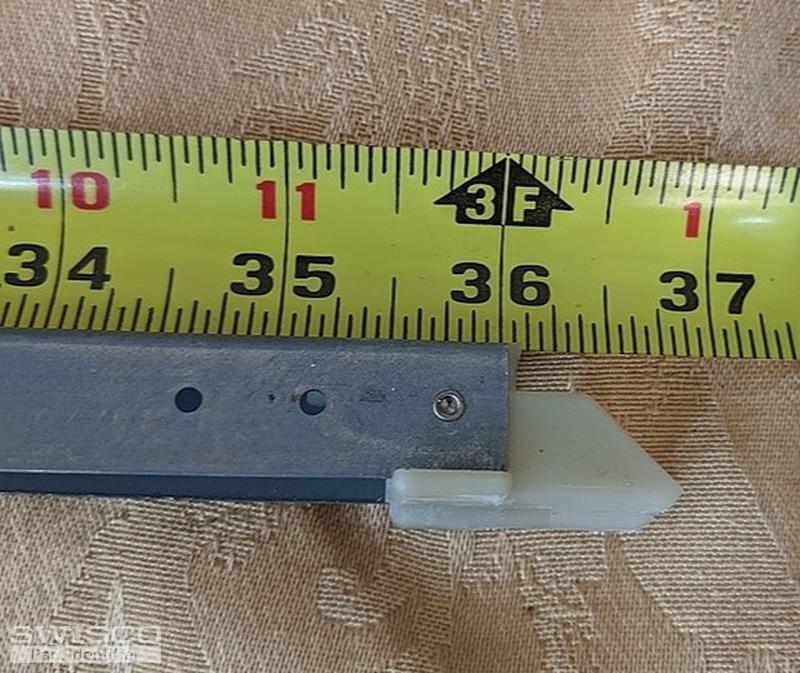

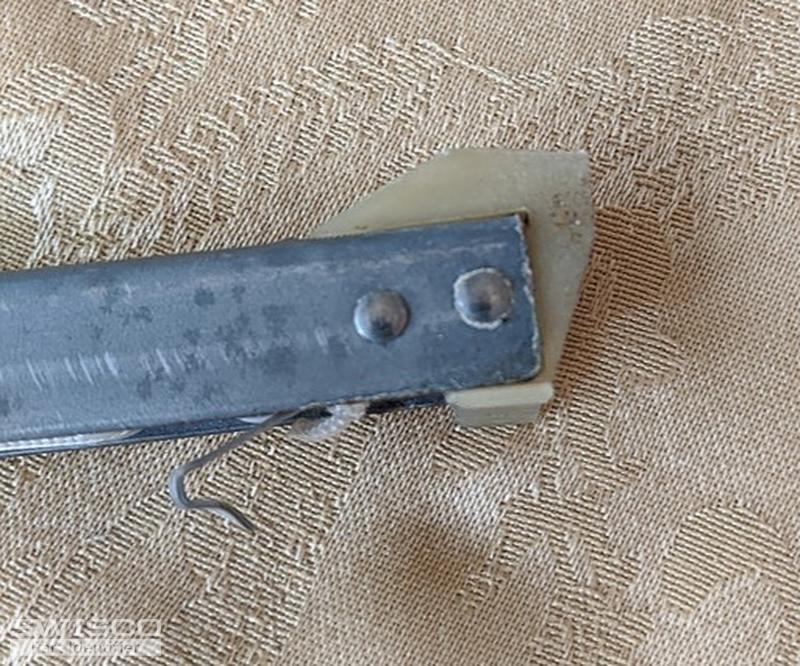

Does this help to identify the part?

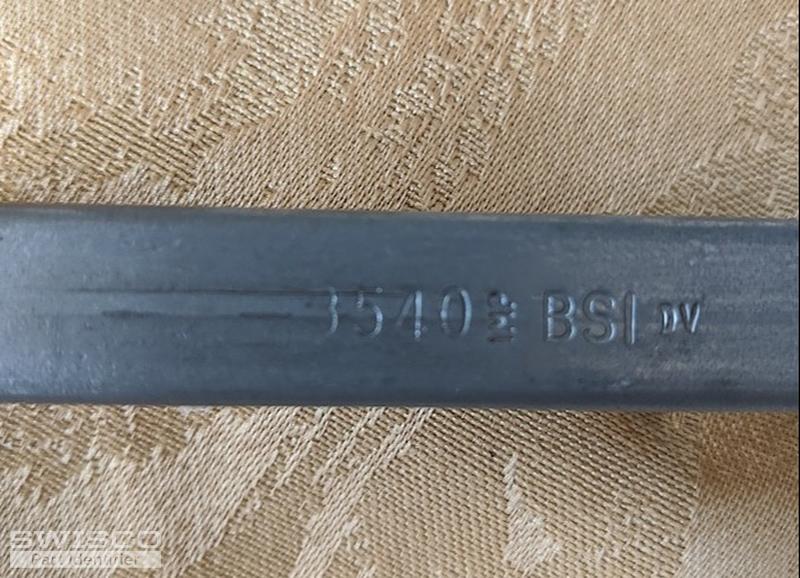

Thumbnail of the uploaded file named 3540 balance stamp
Thumbnail of the uploaded file named IMG_20191231_121200.jpg
Thumbnail of the uploaded file named IMG_20191231_121203.jpg
Thumbnail of the uploaded file named IMG_20191231_121212.jpg
Thumbnail of the uploaded file named IMG_20191231_121343.jpg
Profile picture of Bob
Bob from SWISCO responded:
January 2, 2020

Thanks for writing in. See either our S380-30 or S385-30, as well as either our S380-36 or S385-36. The only difference between the Series 380 and Series 385 is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. For the 30" long balances, you will need a stamp option of 2940; for the 36" long balances, you will need a stamp option of 3540. Let us know if you have any other questions.
36" Series 380 Channel Balance
36" Series 380 Channel Balance
S380-36
$12.27
36" Series 385 Channel Balance
36" Series 385 Channel Balance
S385-36
$12.27
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
