Window Spring Balancers

Home Owner from Ft Myers, FL

Feb 2, 2017 7:21 pm

I need two window balancers for a double hung window that is approximately 51.5 inches wide and 61.5 inches tall. The sash weighs 42.5 lbs. The existing spring balancer is .5 inches wide and 29 1/4 inches long - metal section only. Need two sash clips as well.

Ted

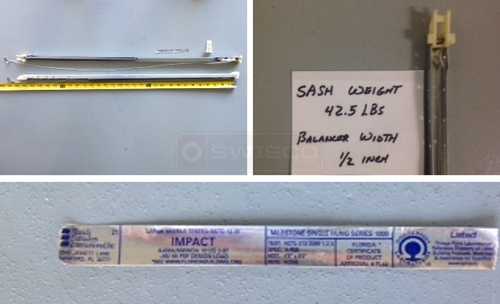

User submitted photos of a window balance.

5 Replies

Paul from SWISCO

Feb 9, 2017 10:17 am

It's hard to make out the nylon caps in your pictures. Those are the most important details. Can you take a clear close up photo of the top and bottom nylon attachments? Can you also show me a clear picture of the clip at the end of the cord?

Quick Learner

Feb 10, 2017 9:48 am

Paul:

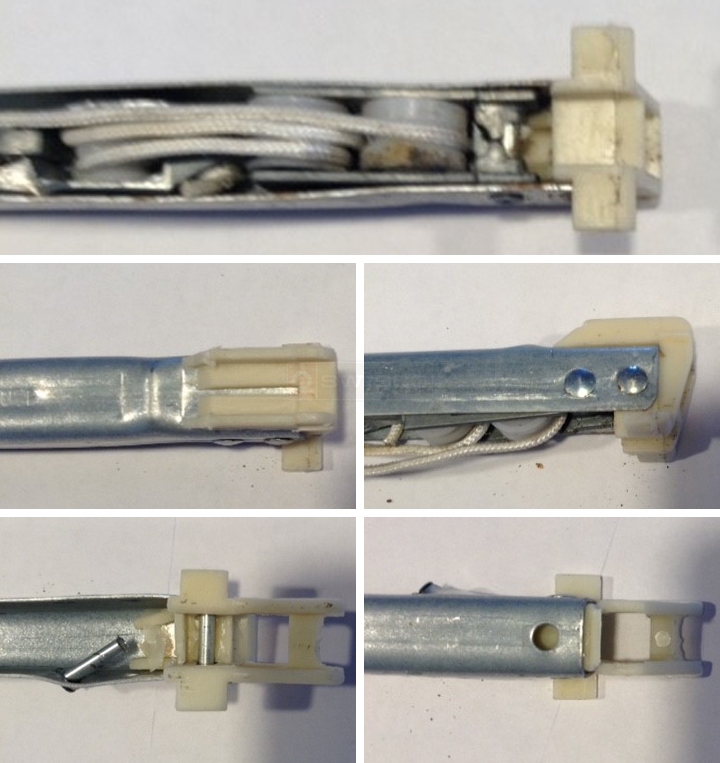

I am trying to send you 3 pics of the top clip, 3 pics of the bottom clip, 2 pics of the "clip: at the end of the cord and 3 pics of the sash clip. Sent 5 so far.

Ted

Quick Learner

Feb 10, 2017 9:51 am

Paul:

More pics

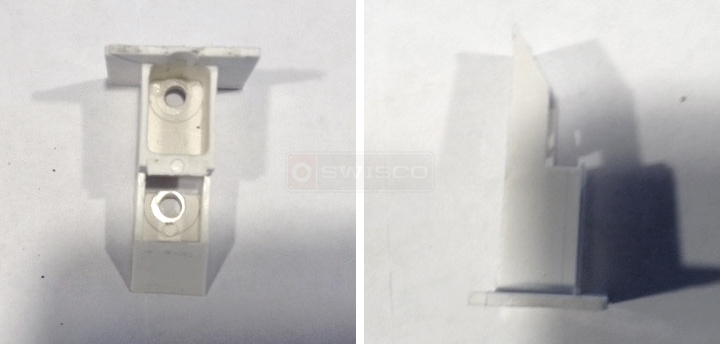

User submitted photos of a top sash guide.

Paul from SWISCO

Feb 15, 2017 12:28 pm

Thanks! Please see our Series 380 channel balance and 18-180 top sash guide. These appear to match what you have.
