Window Spring Replacement 32-4 TG5 CMC 54

Home Owner from Tustin, CA

Jun 18, 2024 4:48 pm

Looking for part window balance. Metal is 33 inches long. Weights about 31 pounds.
Current balance has 32-4 TG5 CMC 54 stamped on it. Thanks

5 user uploaded images

5 Replies

Home Owner from Tustin, CA

Jun 20, 2024 5:15 pm

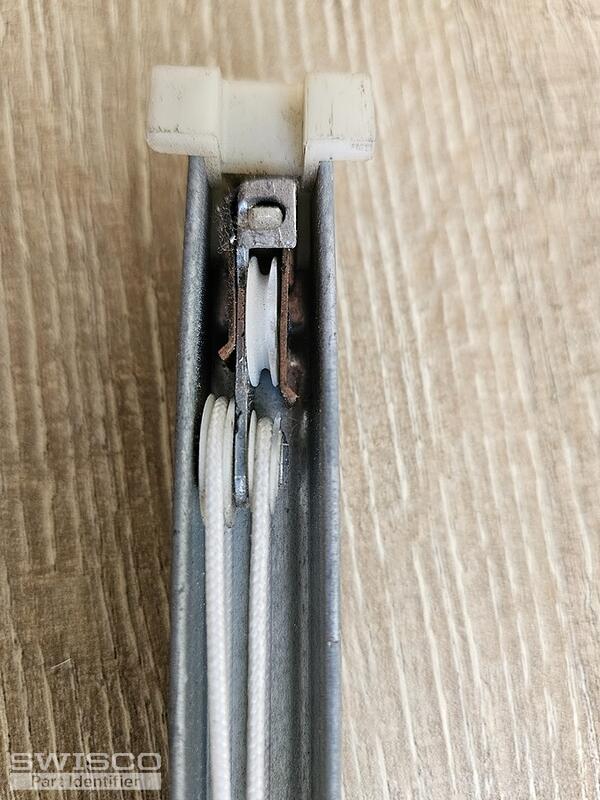

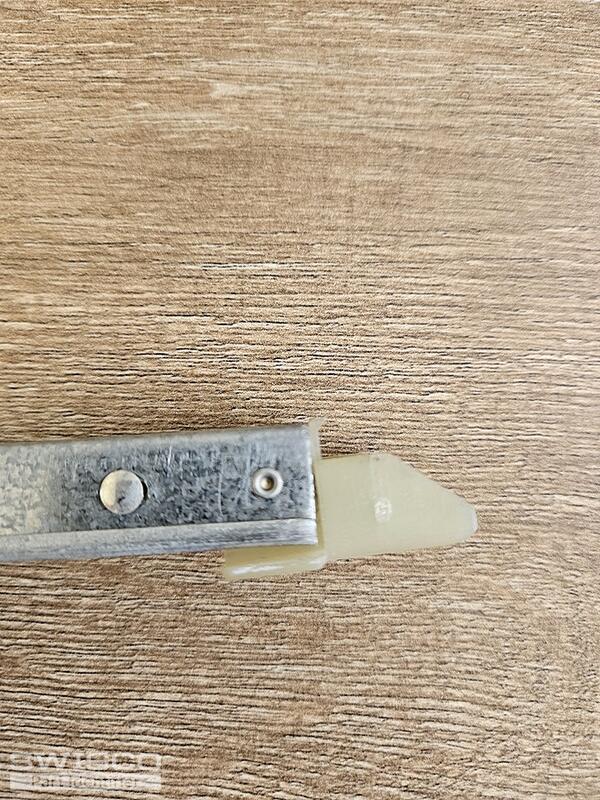

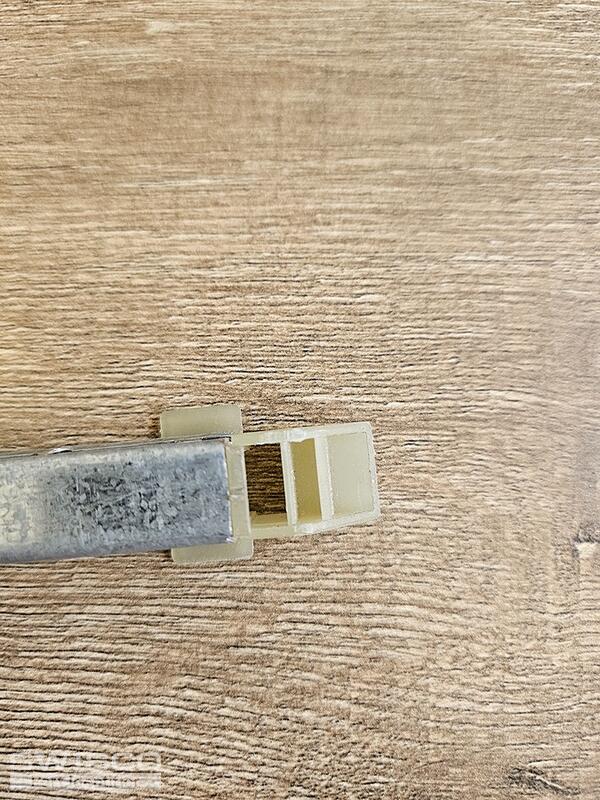

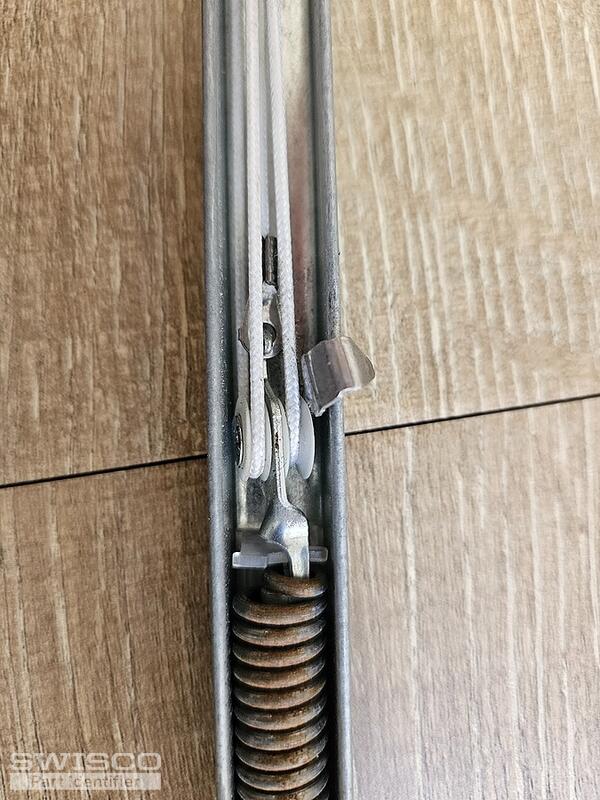

Here are some more photos to help with identifying the part needed. Thanks

3 user uploaded images

Emily from SWISCO

Jun 21, 2024 9:18 am

Hello there!

It looks like you have the S380-33 or S385-33 channel balances. The best match will depend on the depth of the bottom shoe. A pair of balances with the 3240 stamp is calibrated for a 23 to 28-pound sash. If you suspect your window sash is heavier than this, we recommend weighing it to confirm.

Comparison of the S380 and S385 balance shoes.

Home Owner from Tustin, CA

Jun 21, 2024 12:25 pm

Thank you! I made the order.

Emily from SWISCO

Jun 21, 2024 1:14 pm

Thank you for your order! I'll be here if you need anything else.
