Hi I have two windows that do not stay open and need this part. There is also another window that just needs one. My Contractor removed this for me. I already have the two videos that instructed how to remove the part and also how to replace it.
I'm not sure if the clear part is part of the window balance, it was just with what he removed from the window.
Thanks!
Window Spring coil balance
Home Owner from Flourtown, PA 19031
Mar 11, 2025 4:27 pm
4 user uploaded images
4 Replies
Jasmine from SWISCO
Mar 12, 2025 2:50 pm
Hey there,

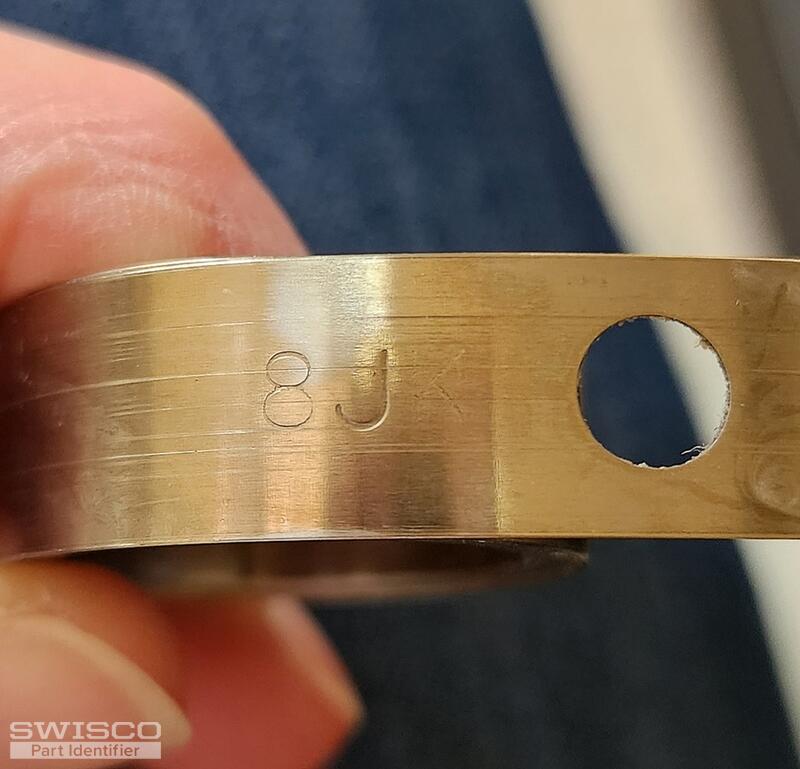

Thanks for posting! You'll need the 15-087 Coil Housing Pivot and the Series 180 Coil Balance to replace your assembly. Since your housing is stamped with an 8, you can use the S180-08.
The clear bracket can be replaced with the 16-031 Mounting Bracket.
Detail of 15-087
Dimesnions for 16-031
Home Owner from Flourtown, PA 19031
Mar 12, 2025 7:45 pm
Do I need two for each window? One for each side?
Jasmine from SWISCO
Mar 13, 2025 9:44 am
Yes, it would be encouraged to replace both sides. This will prevent the newer assembly from wearing out faster than it should.
