Window Springs for 3 windows

Question

Hello,
I'm looking to find replacement parts for the following:
*All windows are non-tilting & All channels are 9/16" wide
Window #1) 2x Window Springs - 14" Length (metal) - Part # 13-4 FM5 CHC 8
Window #2) 2x Window Springs - 20" Length (metal) - Part # 19-4 KN
WIndow #3) 2x Window Springs - 26" Length (metal) - Part # 25-4 JJ5 CMC 50

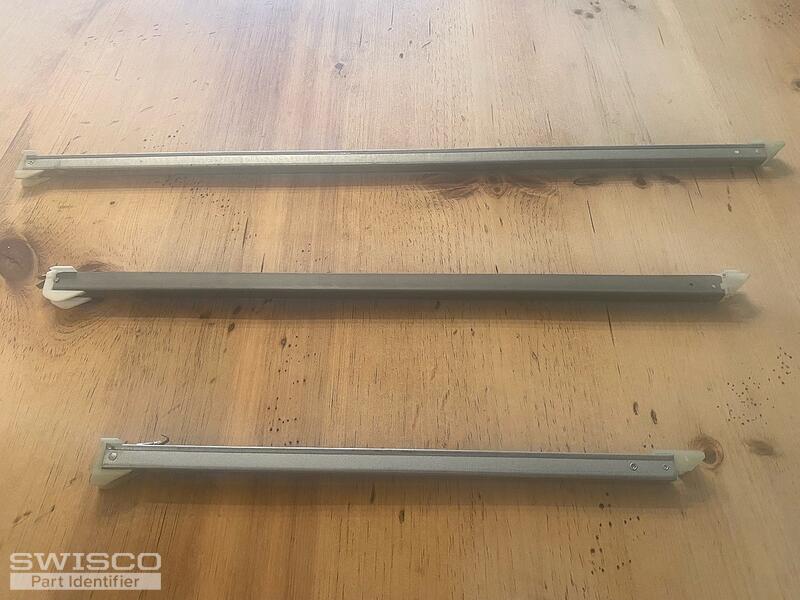

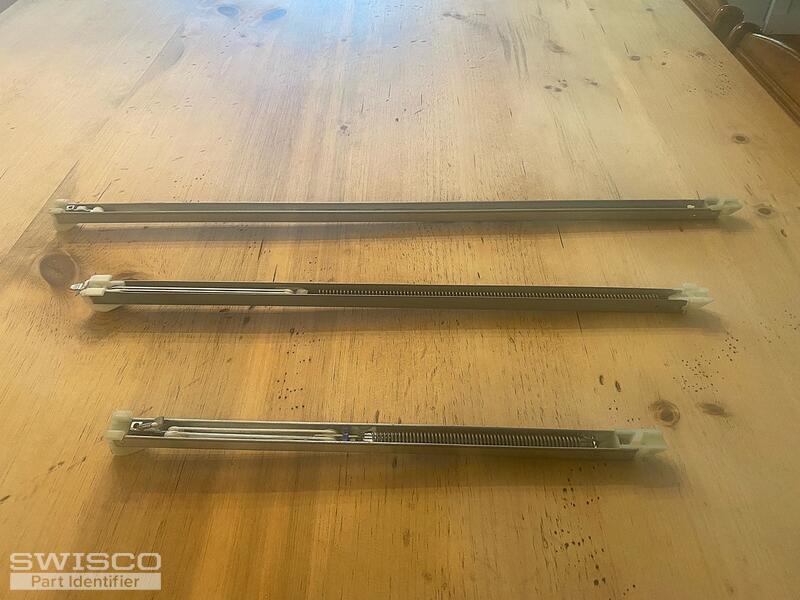

Notes: The pictures show only 1 of each spring for the three windows. In total, I will need 6 springs total, 2 of each shown.

Tom · Accepted Answer

It looks like you have a mix of different configurations here. The 13-4 and 25-4 look like typical stock balances. They would either be the Series 380, Series 385, or Series 378 depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

The 19-4 however is what's called an "extended travel" channel balance and we can only supply this as a custom order. It's not a stock assembly and none of our stock balances are meant to replace it.

I can help with that, but can you kindly confirm the length of the metal channel? It should be 19-7/8", not 20".

For now, I'll email you a custom purchase link that will let you add 2 of these 19-4 balances to your cart. That will allow you to checkout with the other stock balances in one order.
