Window Support Spring : SWISCO.com

Home Owner from Hawaii

Nov 7, 2024 4:19 pm

Hi Team!

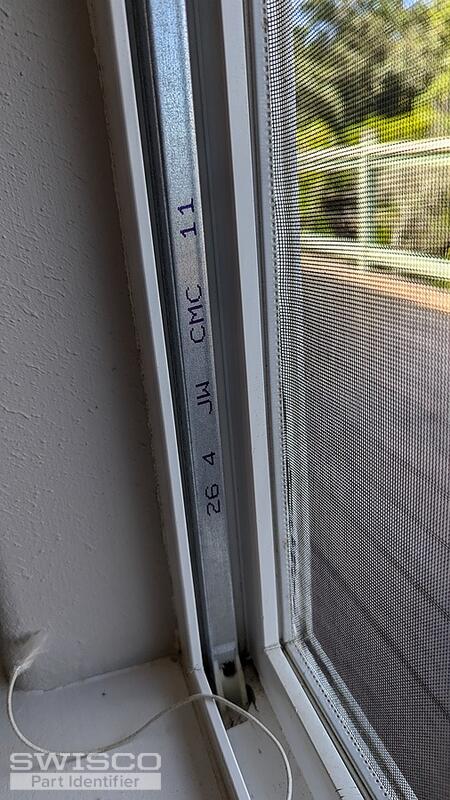

The spring mechanism that helps this window raise and lower has broken. I'd love to replace the pair of mechanisms in this window!

See attached photo - and if you'd be so kind, let me know what parts I should order.

Thanks so much for your time!

Kevin

1 user uploaded image

13 Replies

Casey from SWISCO

Nov 8, 2024 1:57 pm

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us both ends and the pulley cord of an intact balance removed from the other side of an identical window, that will help us narrow down your options. We'll also need to see the connecting point between the spring and pulley inside the metal channel to confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Home Owner from Hawaii

Nov 8, 2024 3:15 pm

Awesome! Will provide this this weekend. Thank you so much for your response!!

Casey from SWISCO

Nov 8, 2024 3:37 pm

Great, just let us know if you need anything else in the meantime.

Home Owner from Hawaii

Nov 25, 2024 9:26 pm

Hey Team!

Will be trying to get you this info tomorrow or Wednesday. Sorry for the delay!

Kevin

Casey from SWISCO

Nov 26, 2024 7:54 am

No rush. We'll be here whenever you're ready.

Home Owner from Hawaii

Jan 18, 2025 6:10 pm

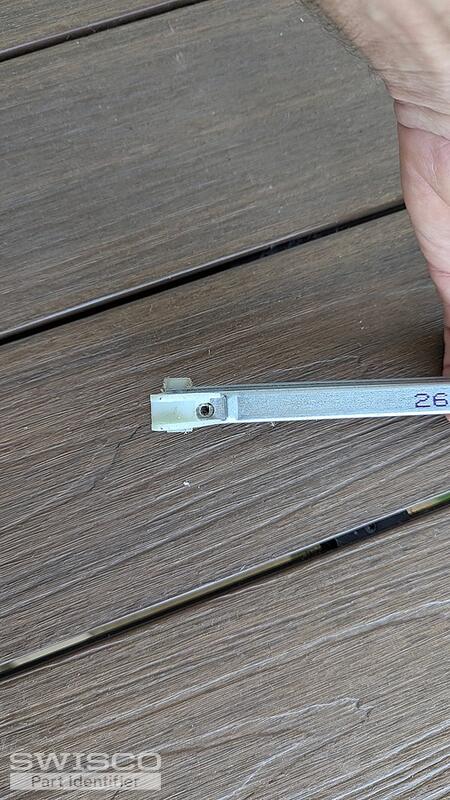

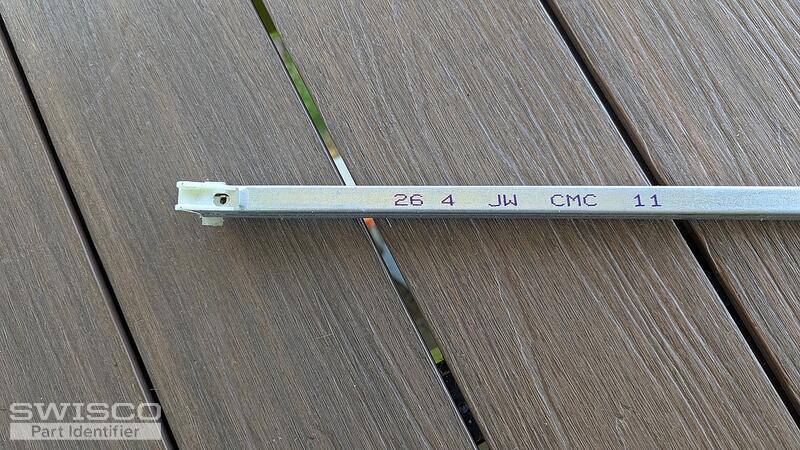

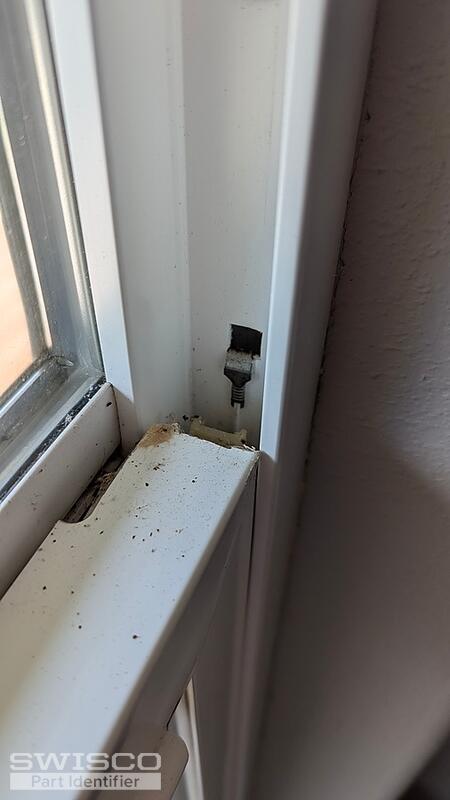

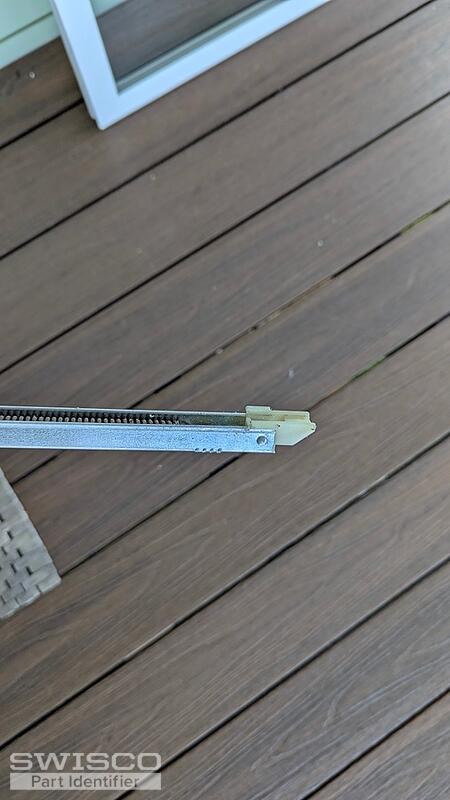

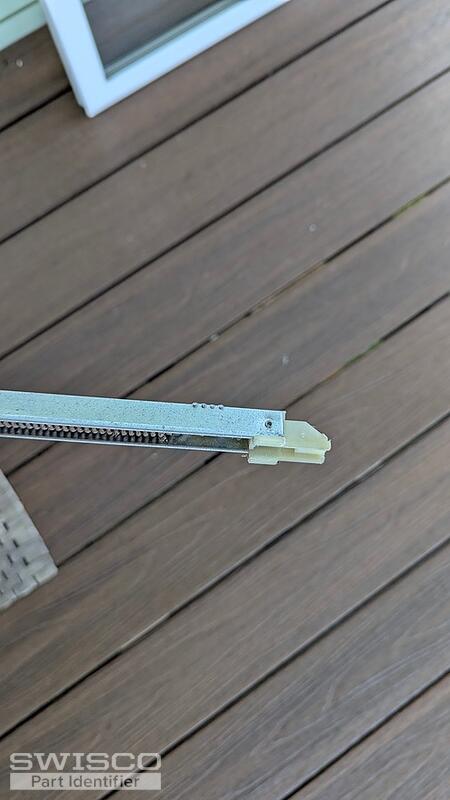

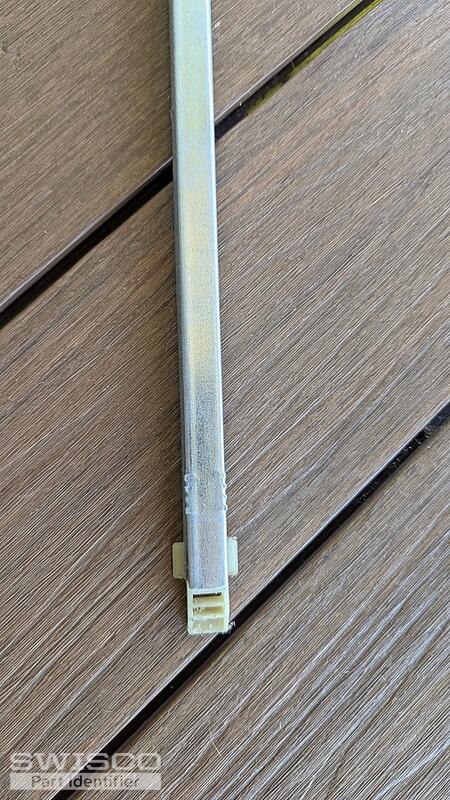

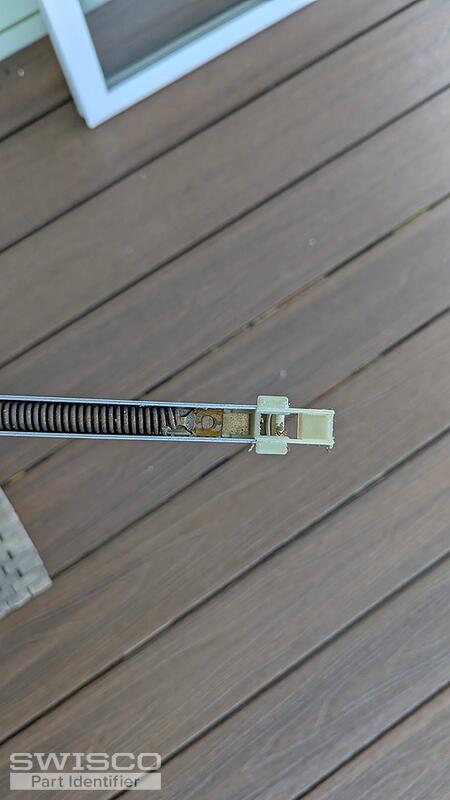

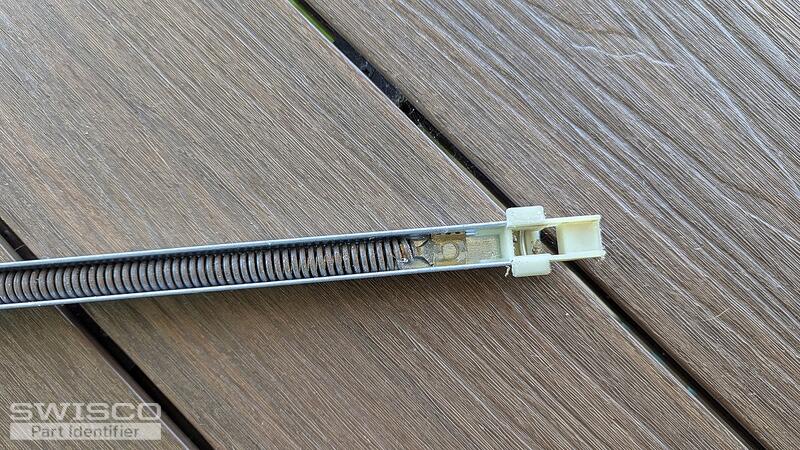

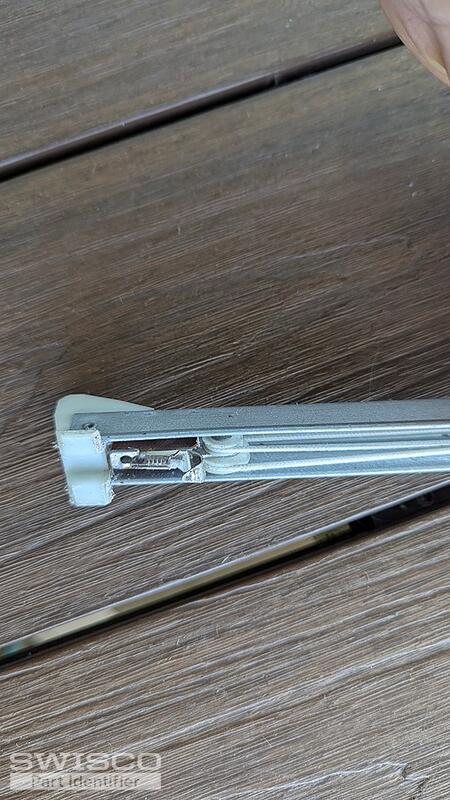

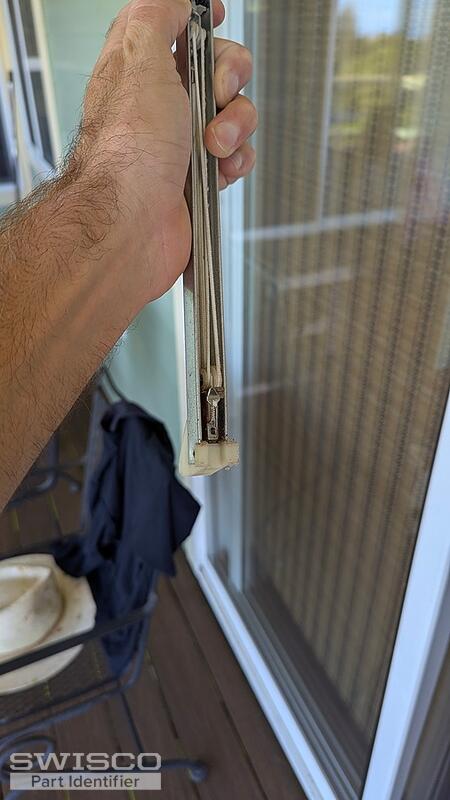

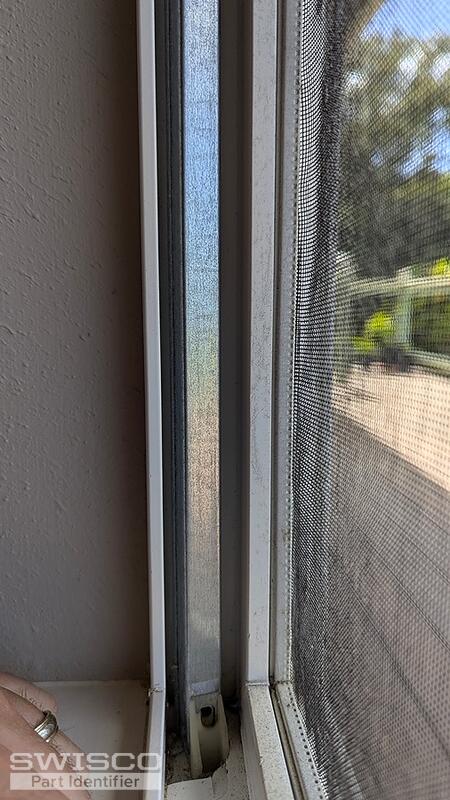

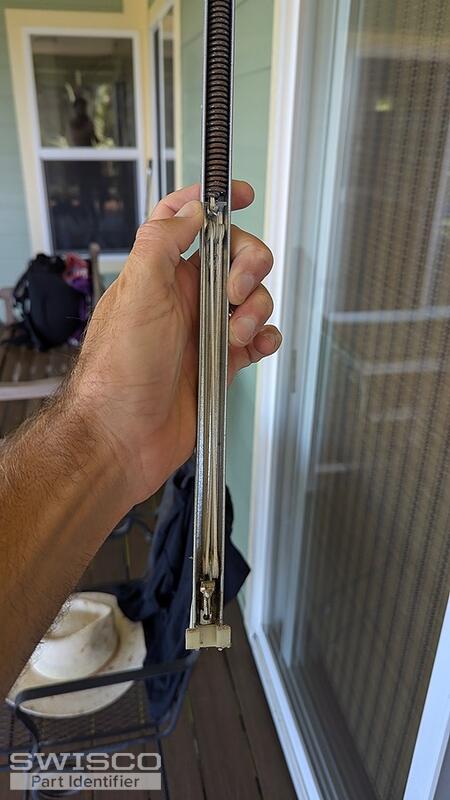

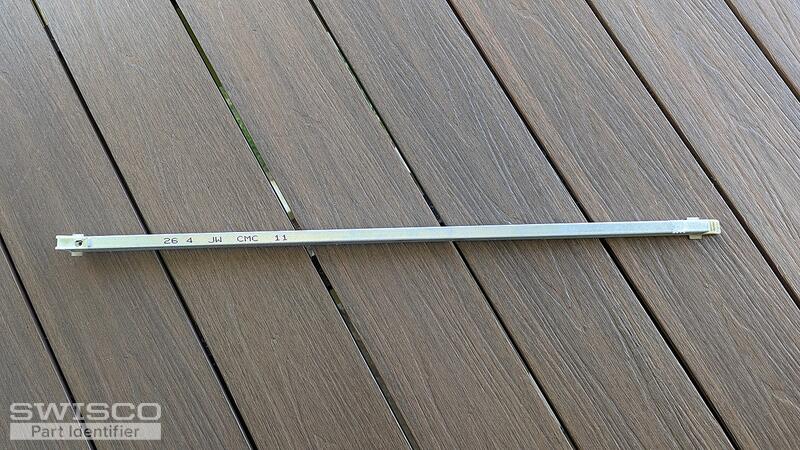

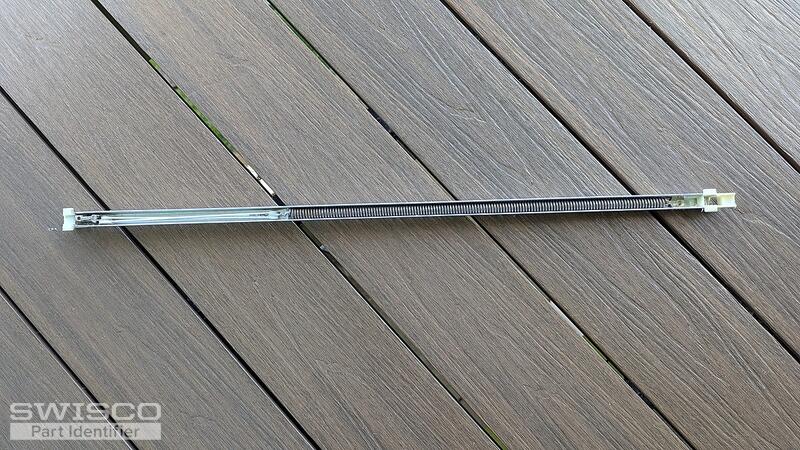

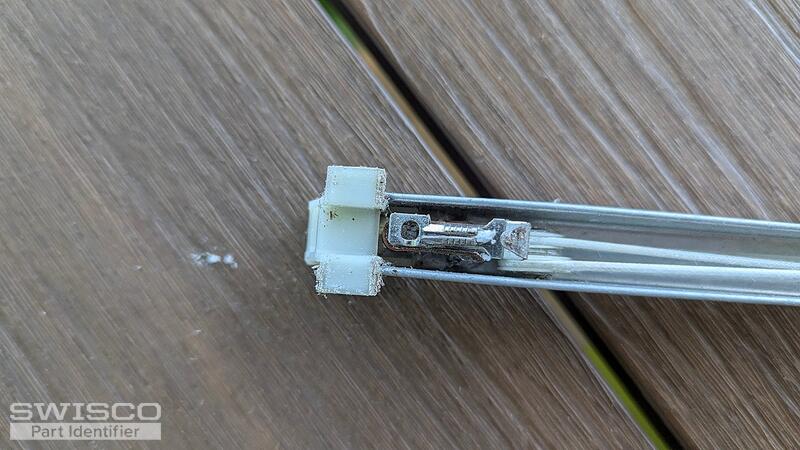

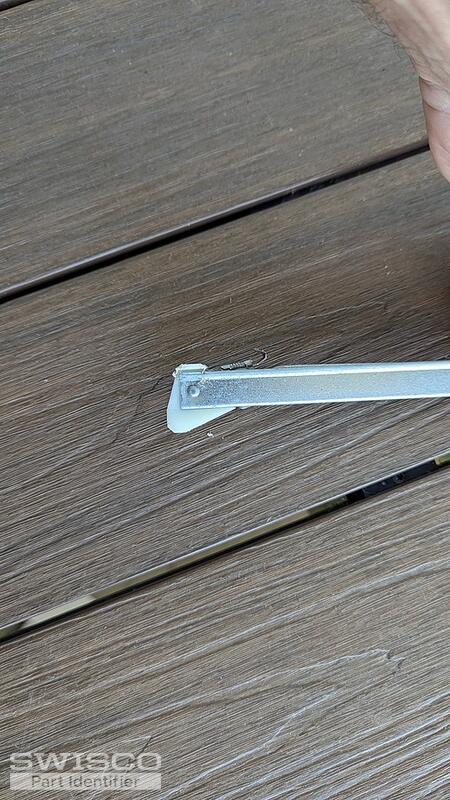

Hi Team!I was finally able to get it together to get pictures for you! We, luckily, had at least one balance that was intact. Attaching photos of it here!We'd like to order 3 completely new pairs of balances. I'd also love to have them shipped expedited, if at all possible - and if the costs are reasonable!Would you let me know what our next steps are here?Thank you so much for your help!

Kevin

5 user uploaded images

Home Owner from Hawaii

Jan 18, 2025 6:10 pm

More photos!

5 user uploaded images

Home Owner from Hawaii

Jan 18, 2025 6:11 pm

Additional photos!

4 user uploaded images

Home Owner from Hawaii

Jan 18, 2025 6:12 pm

Final batch of photos!

2 user uploaded images

Casey from SWISCO

Jan 21, 2025 9:39 am

Thanks for getting back to us. Based on your balance configuration, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2640 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from HI

Jan 31, 2025 3:37 pm

Thanks Casey. I need balances from the S385-27 series. Thank you so much for all your help. I will go ahead and order the balances on your website and get the 2640 spring strength option.

Casey from SWISCO

Jan 31, 2025 4:04 pm

Great! Just elt us know if you need anything else.
