Window Tilt Latch

A home owner from Lealnd, North Carolina says:
June 13, 2019
The above pictured tilt latch has a number on the slide: L306. It is spring loaded and rounded on the closed side.
The dimensions are: 3,3/8" long, 1" wide. Screw holes are 3/4" from each end and 2" apart center to center.

The manufacturer was Atrium Windows.

Thank you for your assistance.
Thumbnail of the uploaded file named Window Tilt Latch 2.jpeg
Thumbnail of the uploaded file named Window tint latch 1.jpeg
Thumbnail of the uploaded file named Window Tilt Latch 3.jpeg

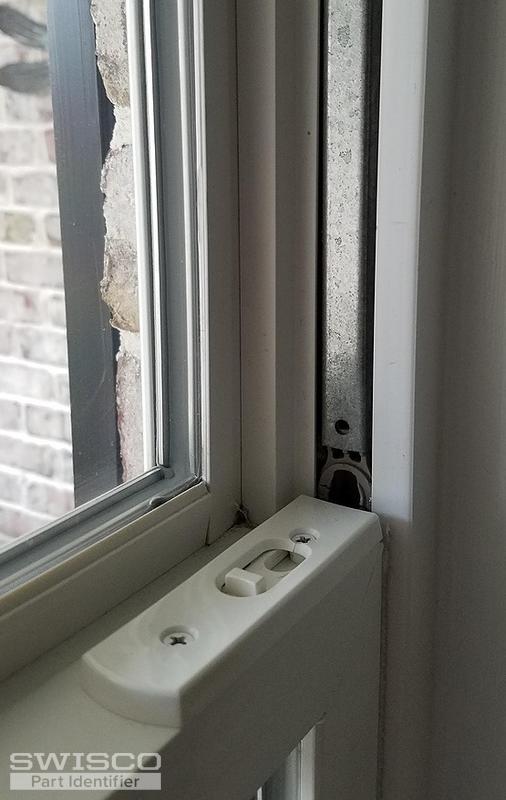

Thumbnail of the uploaded file named Window broken parts .jpeg

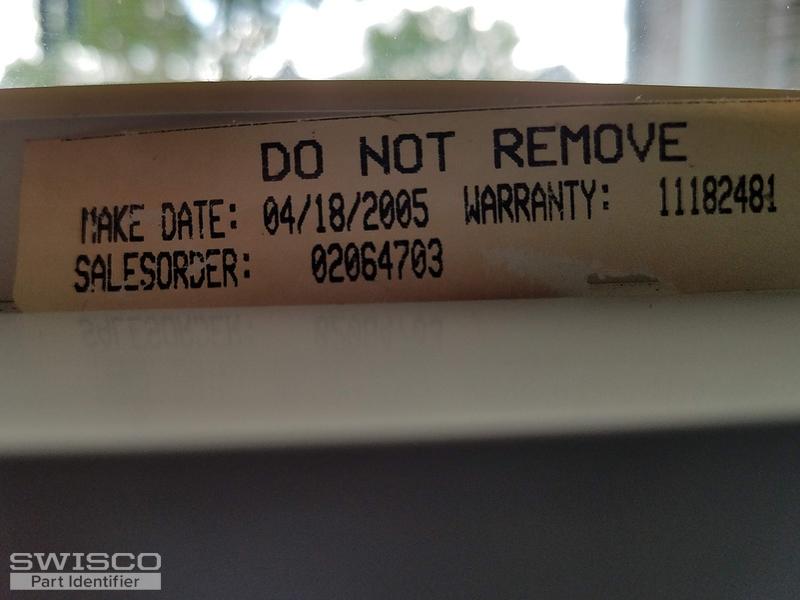

Thumbnail of the uploaded file named window warranty sticker.jpeg
Profile picture of Tom
Tom from SWISCO responded:
June 17, 2019

Thanks for reaching out to us. We don't have this exact tilt latch, but I think we may have something that can work. Start by looking at our 26-344; this has a 2" hole center spacing and a 3/4" front hole offset. That matches the hole placement on yours, but ours is 1-1/16" wide. I can't tell if you h ave the room for that extra 1/16" or not. Let me know what you think!
Top Tilt Latch Pair, 2", 3/4"
Top Tilt Latch Pair, 2", 3/4"
26-344
$5.22
