Window Tilt Latch Identification

Quick Learner from New York

Aug 18, 2024 12:20 pm

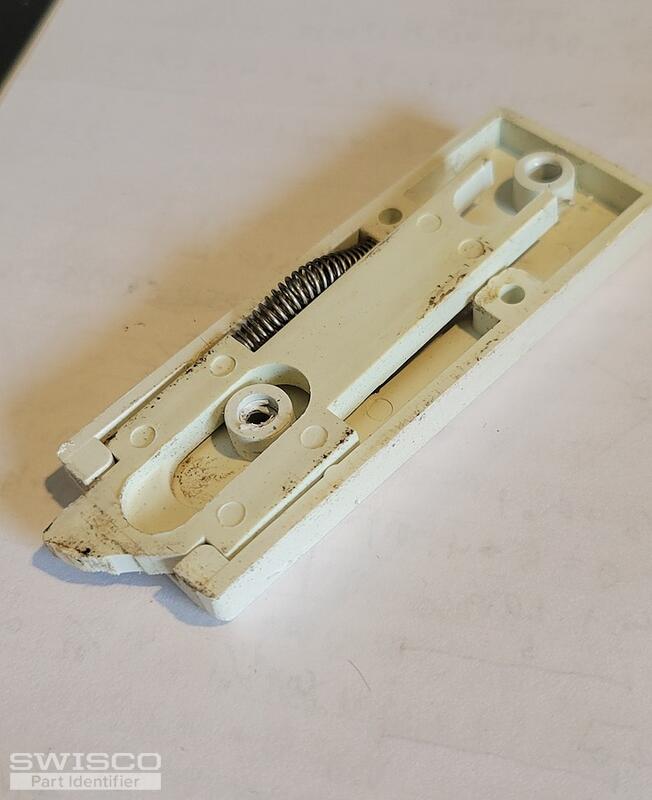

I don't see any name, numbers, or markings on the latch. This latch is different in terms of that there is a screw gap for the screw holding the corner together.

tilt latch

tilt latch

tilt latch

20240818_121406

4 user uploaded images

3 Replies

+ Add a Comment

Emily

Emily from SWISCO

Aug 21, 2024 10:00 am

SWISCO

EXPERT

Hello there!

Thanks for reaching out to us. We're happy to look into this. Can you write out the installation hole center spacing and the backset? That should help with our search.

Quick Learner from New York

Aug 21, 2024 5:39 pm

The centered hole spacing is 2" inches apart and backset dimensions is roughly 6/8" inches.

Emily

Emily from SWISCO

Aug 22, 2024 8:01 am

SWISCO

EXPERT

Thank you! Our 26-337, 26-344, and 26-435 measure 2" on the installation hole centers. Review the rest of the specifications and see if one of these matches what you're searching for.

Detail of 26-337

Detail of 26-337

Dimensions for 26-344

Dimensions for 26-344

Alternate image for 26-435

Alternate image for 26-435
