Window Tilt Latch identification

A quick learner from Rhode Island says:
August 4, 2022
Hello,
my window tilts are all broken, as you can see in the picture latch3.jpg
I am looking to replace these pieces
Let me know if you need anymore information to identify this part
Thank you!
Jesse

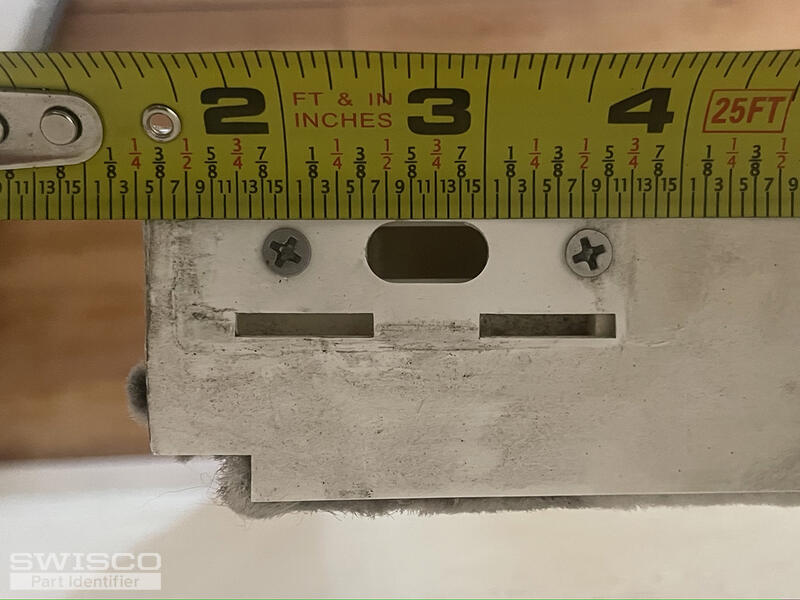

Thumbnail of the uploaded file named latch3.jpg

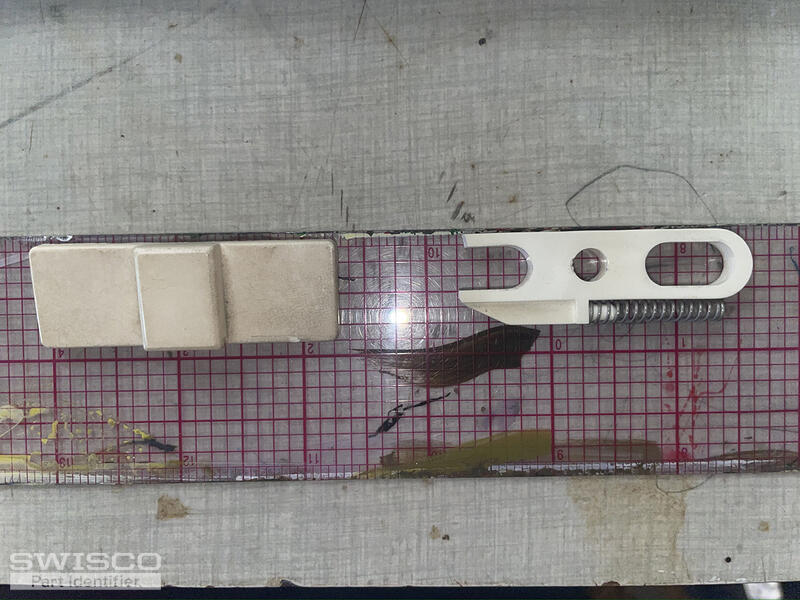

Thumbnail of the uploaded file named latch2.jpg

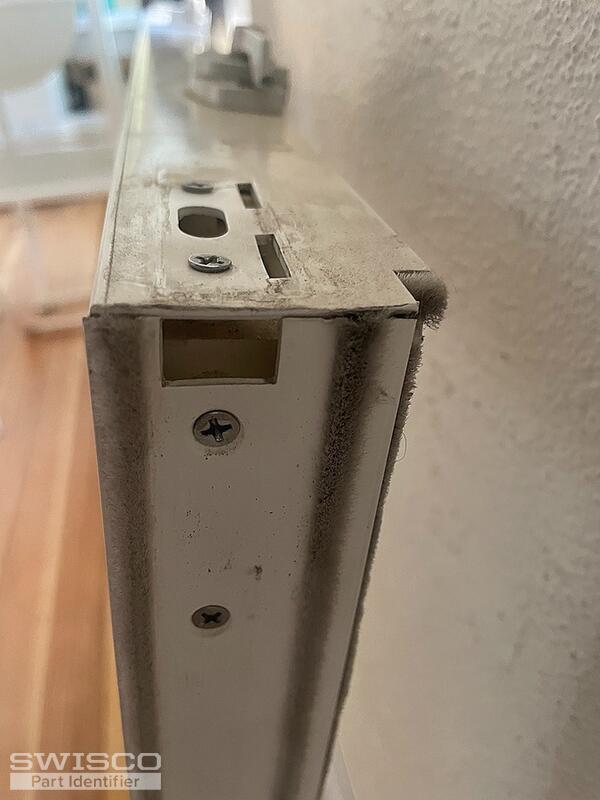

Thumbnail of the uploaded file named latch1.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 9, 2022

Hello,

Unfortunately, I don't believe that we can supply the internal latch shown in your photos. With that being said, see our video below that shows the process of converting your window to use surface-mounted tilt latches.

Since your sash is a unique shape, the trick is to avoid the existing holes in the sash when choosing replacement latches from our selection here. A handful of our surface-mounted options could work for you depending on the dimensions that you need but you can start by reviewing the specifications of the 26-193 and 26-194. The installation holes measure 2-5/8" apart, which looks like they would be long enough to cover the original holes and latch cutout in your sash but I'm not sure if the 7/8" width will be large enough. Take a look and see what you think.

LH Rollyson Tilt Latch, 2-5/8"
LH Rollyson Tilt Latch, 2-5/8"
26-193
$2.27
RH Rollyson Tilt Latch, 2-5/8"
RH Rollyson Tilt Latch, 2-5/8"
26-194
$2.27
Replace an Internal Latch with a Surface Mounted Latch [1080p]
Replace an Internal Latch with a Surface Mounted Latch [1080p]
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
