Window Tilt Latches
Contractor from St Louis MO
Jan 18, 2023 5:28 pm

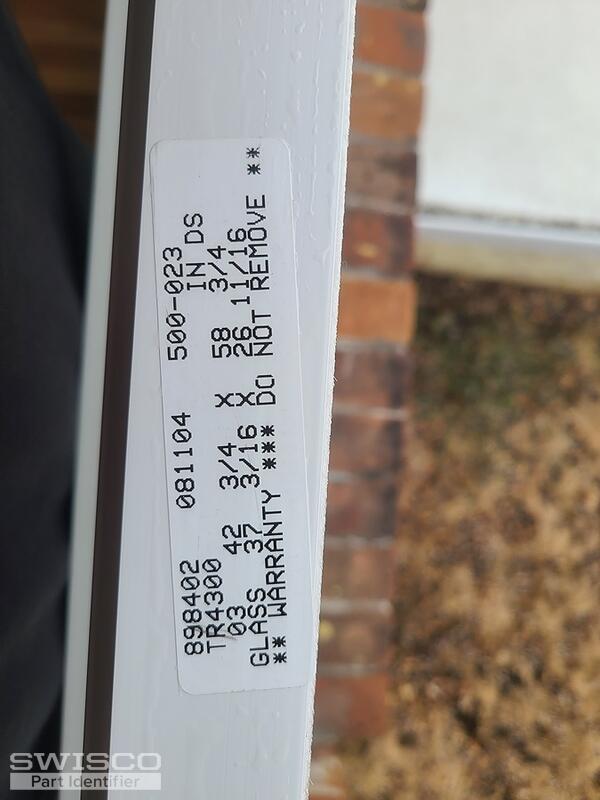

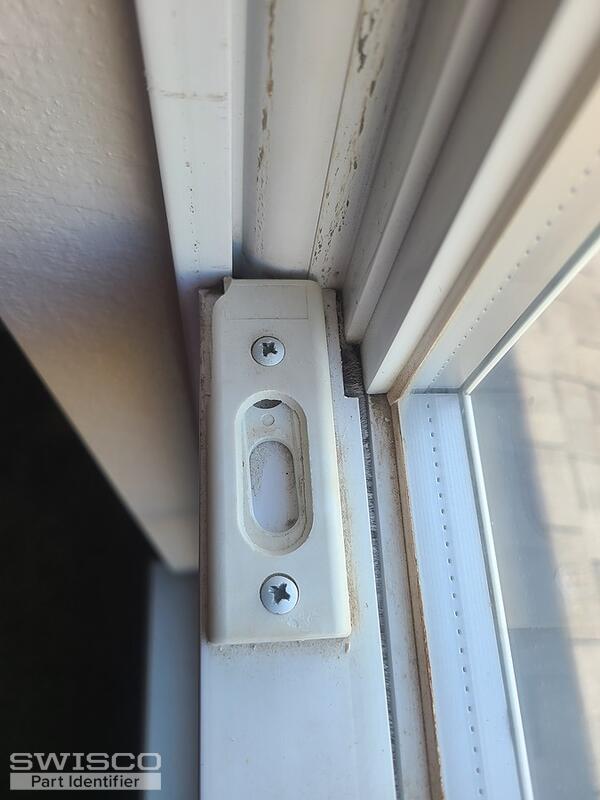

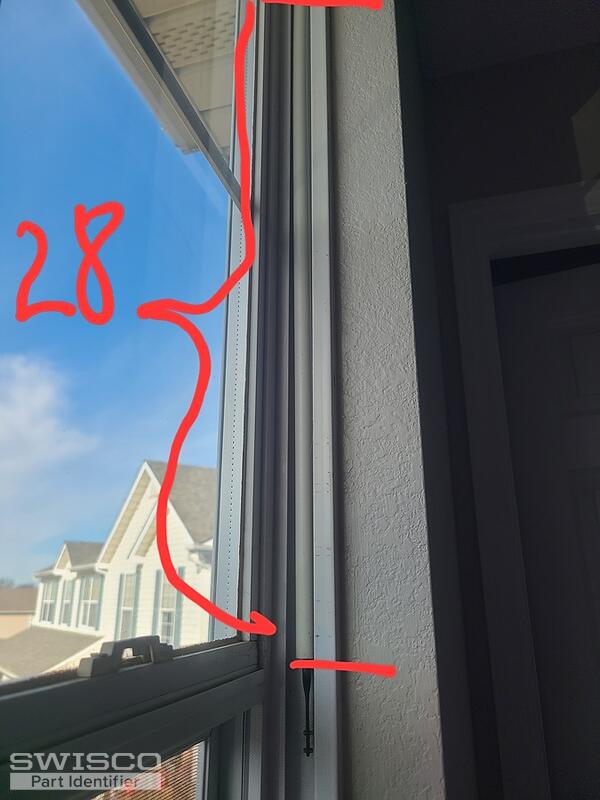

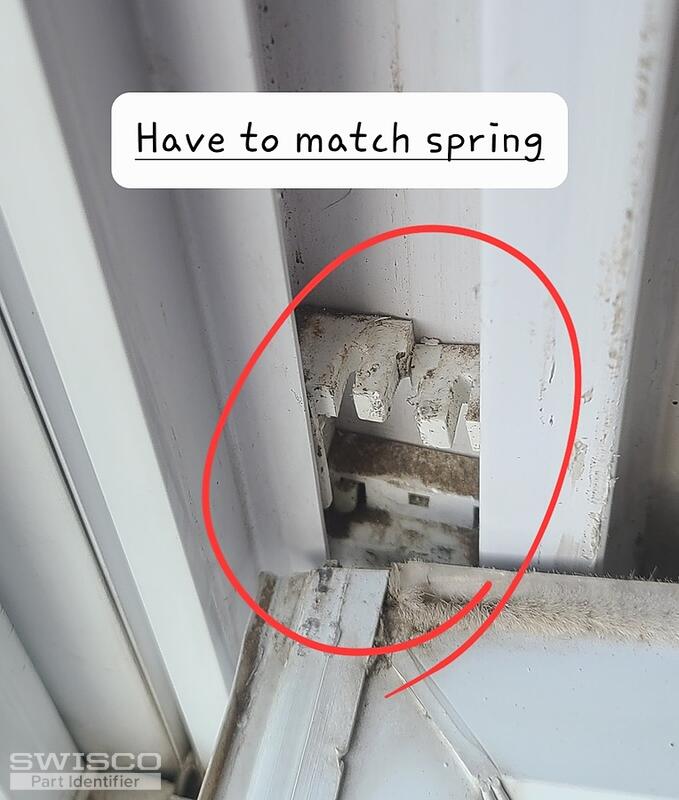

We are needing the Tilt in latches for 3 windows left and right. We also need the sash balancer 28" long. Along with the locking mechanism for the balancer left and right.
4 user uploaded images
2 Replies
Tom from SWISCO
Jan 23, 2023 2:00 pm
Hello! Thanks for reaching out to us.
Your spiral balance looks like it'll be a match for either our 3/8" diameter Series 900 or 9/16" diameter Series 600. You need to measure the external tube to verify. It's probably going to be the Series 600 but you should still measure, just to be 100% sure.
I'm not sure what the tilt latch may be. Before I recommend anything, can you tell me the distance between the two installation holes, center-to-center?
