Window Tilt Latches

Search
Start a new Discussion
Home Owner from Jacksonville FL
Dec 27, 2025 3:03 pm

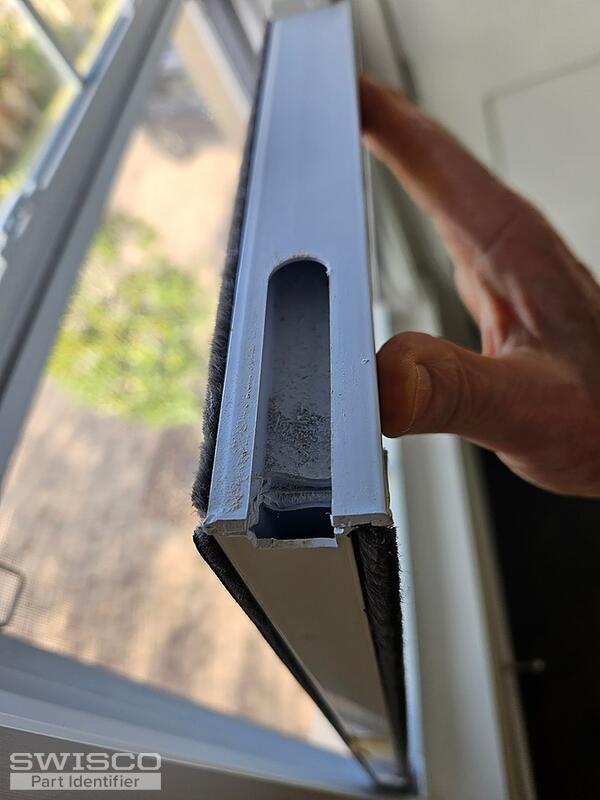

I have to replace window tilt latches on a number of my vinyl windows.  I've attached a picture of the current latch and the window sill without the latch installed.  The dimensions match the dimensions on your part number 26-244A.  Do you think these will fit properly?

I bought similar latches from Home Depot (Prime-Line F 2749) with same dimensions as your 26-244A, but they had a tab protruding on each side and so would not slide in all the way.  Otherwise, they appeared to fit just fine.

Thanks,

Ted


4 user uploaded images
4 Replies
Bob
Bob from SWISCO
Dec 27, 2025 4:47 pm
SWISCO
Expert

Hey Ted. If the dimensions match what we show below, then I do think the 26-243A and 26-244 Tilt Latch pair is our best match. One issue may be that the tooth on your old latches has a curve, while the tooth on the 26-243A and 26-244A is straight. I am afraid I can't promise that won't affect compatibility with your window. However these remain our best option for you, if dimensions otherwise match.

Dimensions for 26-244A
Dimensions for 26-244A
Dimensions for 26-244A
Dimensions for 26-244A

Home Owner from Jacksonville FL
Dec 28, 2025 9:42 am

Thnaks very much for the prompt reply Bob.  I'm afreaid I don't understand what you mean by the tooth  - could you please point out exactly where this tooth is on your latch and on mine?

Ted

Bob
Bob from SWISCO
Dec 30, 2025 4:20 pm
SWISCO
Expert

Hey Ted. Let me clarify. The tooth is the part that extends and 'latches' to the window jamb. You'll see on your old tilt latches that it has a curved edge. Ours is straight. Sometimes this is an issue and thwarts a replacement from working; sometimes it's fine. It depends on the window. Unfortunately we can't say what the case will be for you, but if all other dimensions I listed are equal, then the 26-243A and 26-244A tilt latches remain our best bet for you.

Reply to Thread
Current Photos:
