I believe the existing windows are Jeld-Wen.

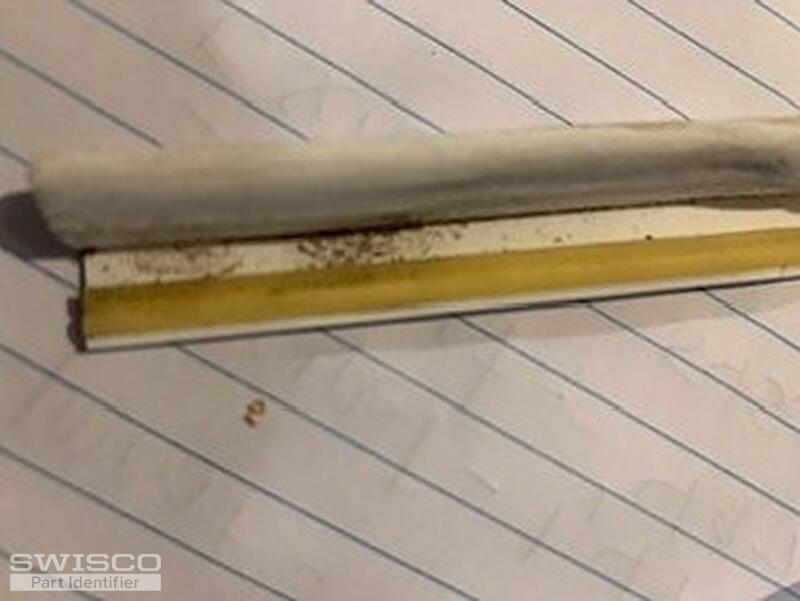

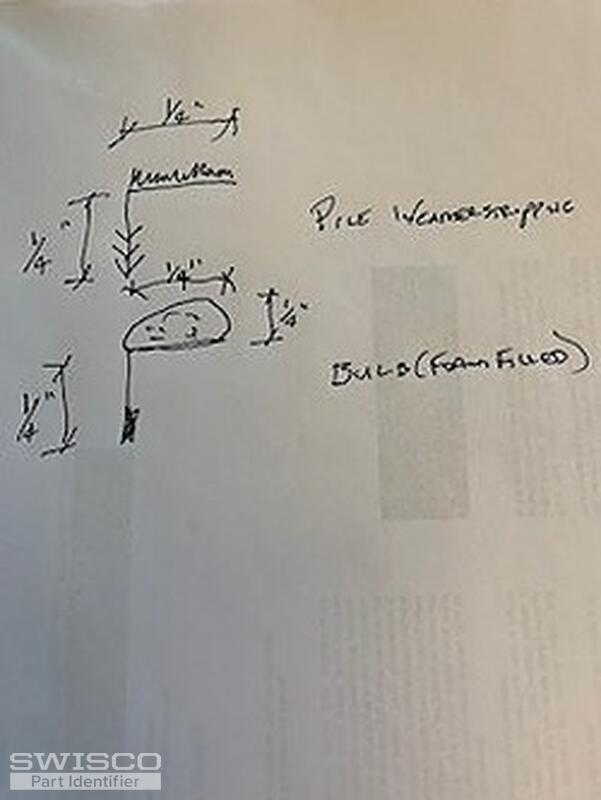

I am looking to source pile weatherstripping for the cross rail, bulb type weatherstripping for the sill and a new compression jamb with internal spring balance.

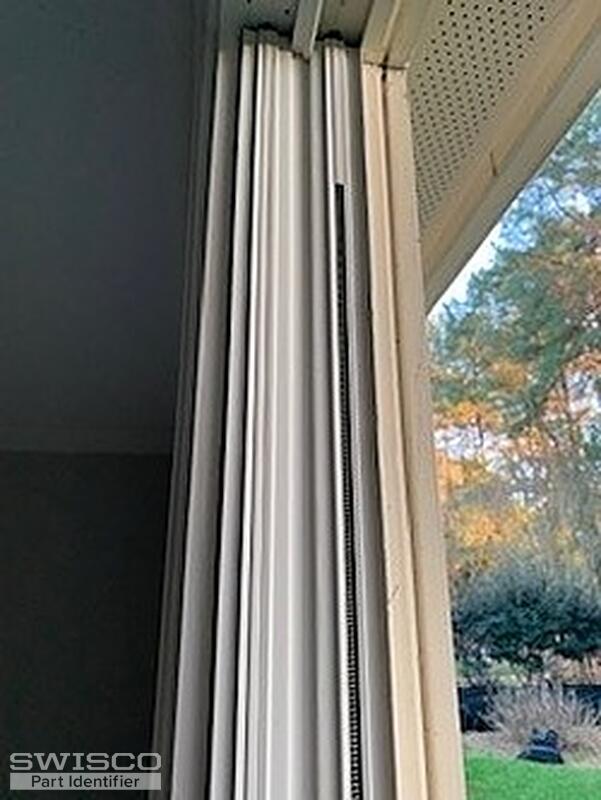

The compression jamb has a failed spring on one side. The jamb is 3-3/8" wide by 73-1/2"/74-1/4". The connection piece to the window frame that is in the jamb (no picture) is a white plastic piece with a hole for the pivot and a screw above it.
Thanks
Window Weatherstripping and Compression Jamb
Quick Learner from Wake Forest, NC
Nov 22, 2022 8:26 am
5 user uploaded images
4 Replies
Tom from SWISCO
Nov 29, 2022 3:47 pm
Hello! This looks to be a match for our 58-055 angled base bubble seal. Please review our dimensions and see what you think.
Profile view of 58-055
Home Owner from Yuma Arizona
Nov 29, 2022 8:50 pm

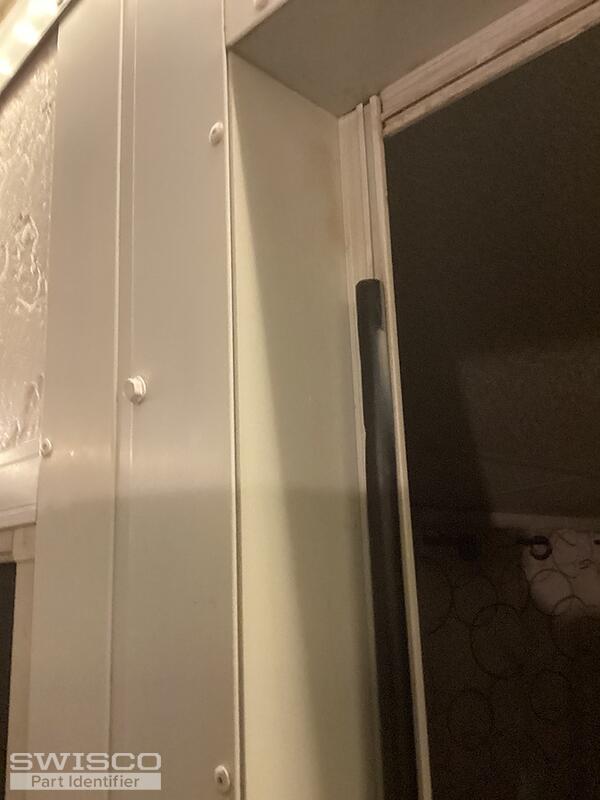

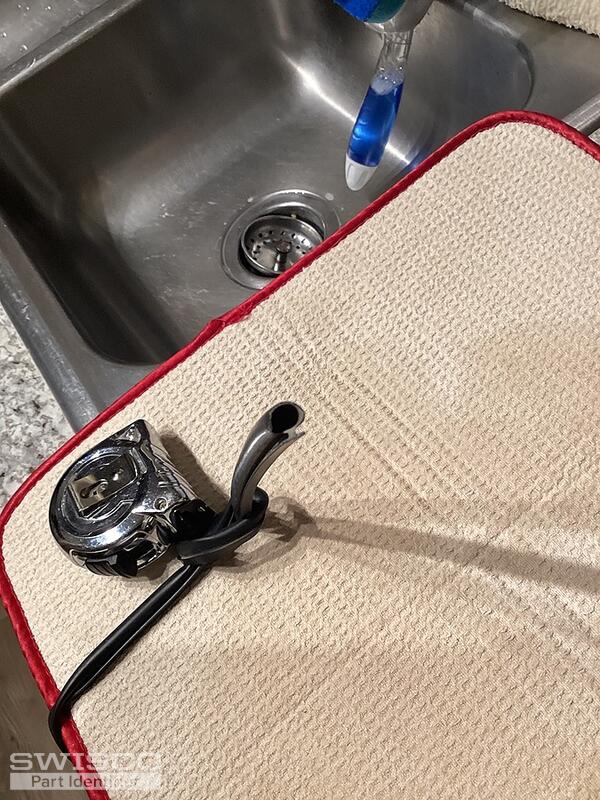

Looking for weatherstripping similar to that shown in attached photos. The diameter of the bubble is approx 3/8". The kerf is approx 1/4. It is made of flexible rubber and used as seal on metal door.
2 user uploaded images
Tom from SWISCO
Nov 30, 2022 9:01 am
Your bubble seal looks different from those shown in the original post. Rather than having a ribbed kerf, yours has a "T" shaped base. With that in mind, consider our 58-135 as a possible replacement.
Profile view of 58-135
