Window arms

A home owner from Monmouth beach nj says:
June 3, 2023
These were installed around 1986 when units were built.. I have 3 wood windows, all on right side with lock to left of the handle?when you open, they don't catch as you turn crank so it takes awhile to fully open.
Didn't want to completely remove since I needed to close window afterwards?
These were on top deck so second picture was from outside looking in.. wanted to make sure I ordered the right part

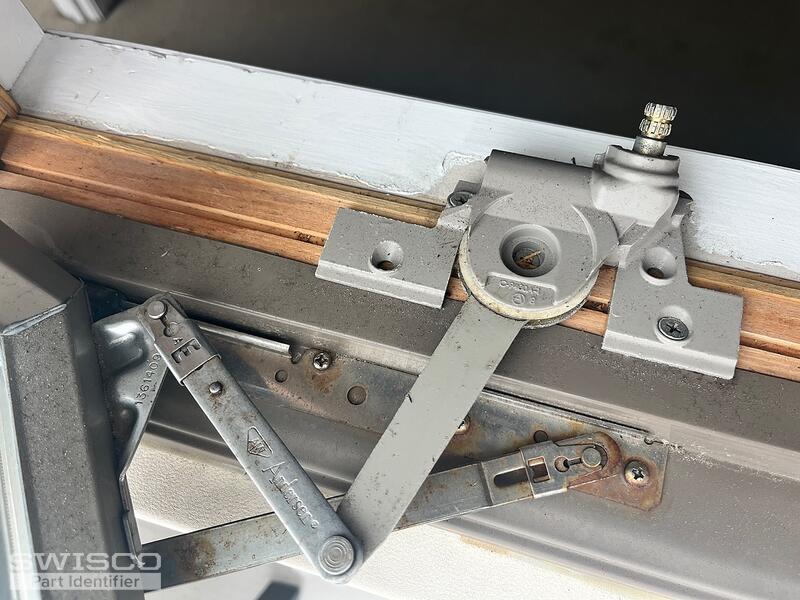

Thumbnail of the uploaded file named IMG_3815.jpeg

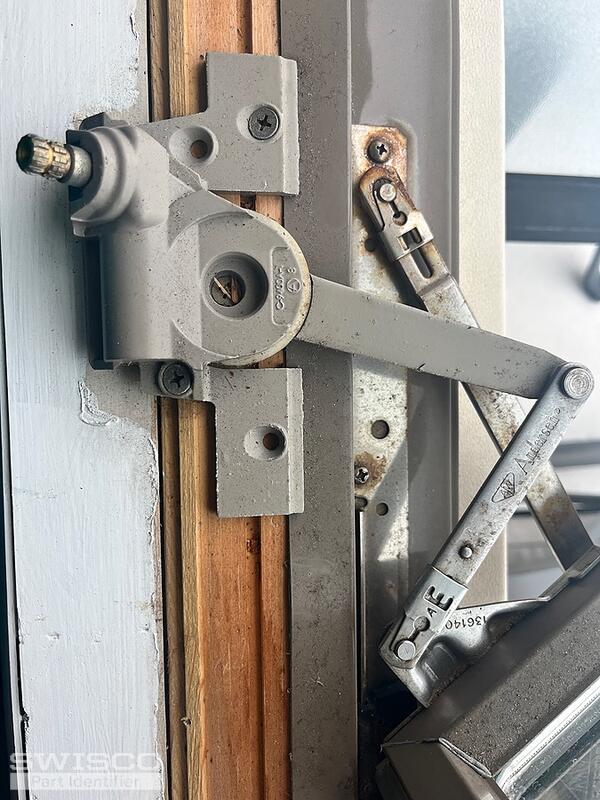

Thumbnail of the uploaded file named IMG_3816.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 3, 2023

Hello there. This looks like the Andersen 39-264 . Take a look and see if you agree. For new handles and covers, see our 39-267 and 39-152 .

A home owner from Monmouth beach nj says:
June 3, 2023
That looks like the part. Does it come in the stone color and would I be able to order 3..do you think I also need the handles? Could they have become a little stripped over time from not catching?

John
Profile picture of Bob
Bob from SWISCO responded:
June 6, 2023

Yes, the 39-152 cover and 39-267 handle are available in stone. If you haven't already, I highly recommend viewing the store pages I linked to above. We list detailed information for each part, as well as pricing. This is also where you would begin your order by adding them to your cart.

As for the operator stripping, it is possible that the handle would strip. However it's more likely that the worm gear of the operator spline itself strips out first from over-torqueing. To be perfectly honest I almost never see the handle stripping out before the gear.

Andersen Split Arm Crank
Andersen Split Arm Crank
39-264
$26.35
Andersen Classic Handle
Andersen Classic Handle
39-267
$7.40
Andersen Classic Operator Cover
Andersen Classic Operator Cover
39-152
$5.92
