Window bal replacement

A quick learner from Waikoloa Hi says:
Don't know which option to select

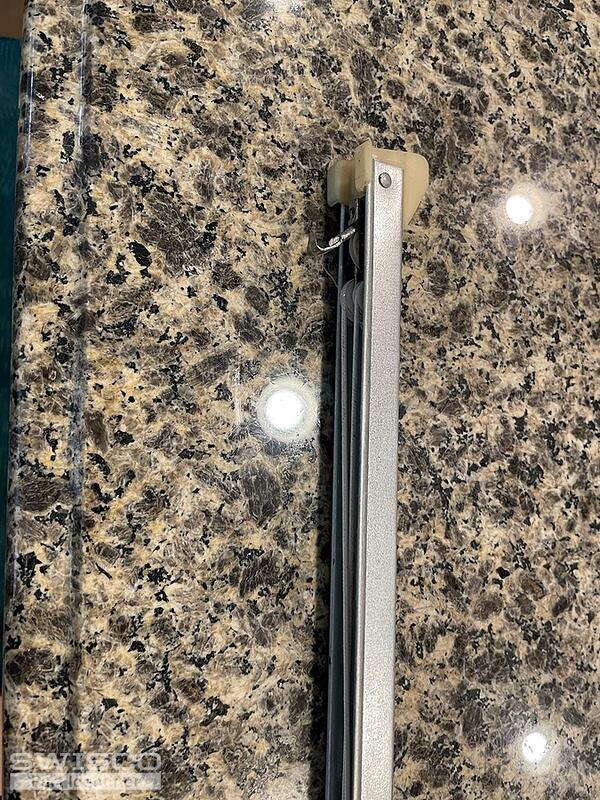

Thumbnail of the uploaded file named 59F638FB-6883-4D37-B685-8F7B35BDC216.jpeg

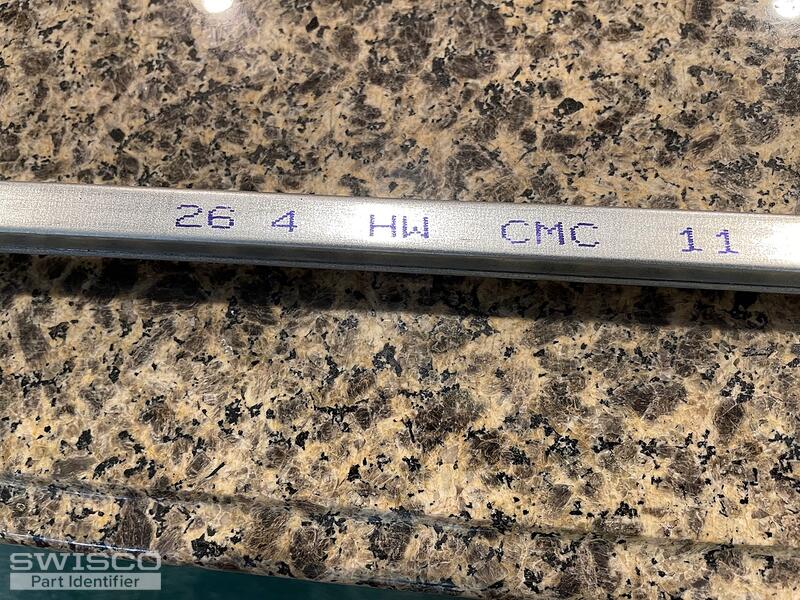

Thumbnail of the uploaded file named 3E3D81CB-6C17-4582-AF2D-5F45E5517CAC.jpeg

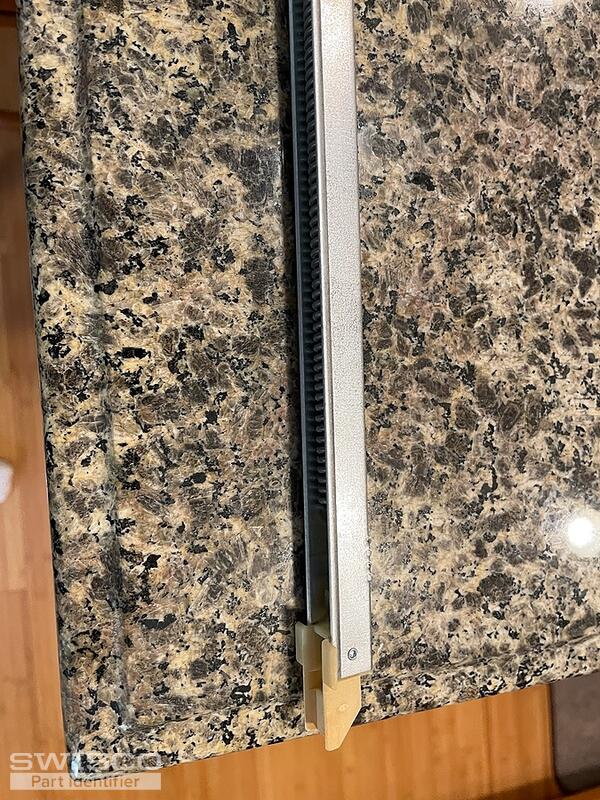

Thumbnail of the uploaded file named D94A1BCE-C0D7-4498-8AB4-FDD909B907C5.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need the 2640 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
How to Identify Replacement Channel Balances
How to Identify Replacement Channel Balances
VIDEO
WATCH >
How to Replace a Non-Tilt Channel Balance
How to Replace a Non-Tilt Channel Balance
VIDEO
WATCH >
How to Repair a Jammed Window
How to Repair a Jammed Window
VIDEO
WATCH >
How to replace a channel balance
How to replace a channel balance
GUIDE
READ >
