Window balance

A handy person from Merritt Island FL says:
April 1, 2021
I will send additional photos
Thumbnail of the uploaded file named 20210401_105554.jpg
Thumbnail of the uploaded file named 20210401_105552.jpg
Thumbnail of the uploaded file named 20210401_105546.jpg

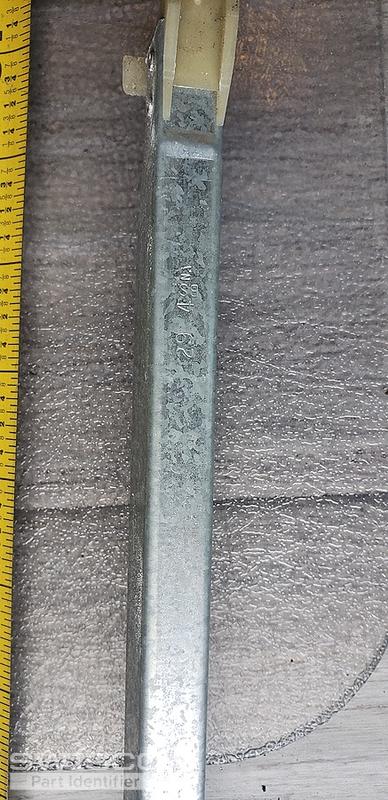

Thumbnail of the uploaded file named 20210401_105544.jpg

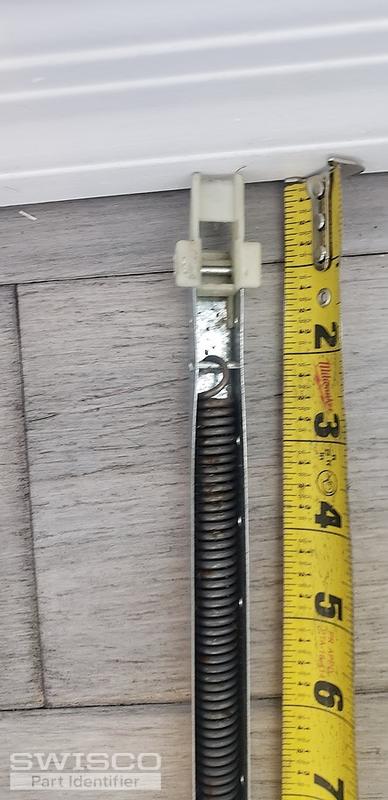

Thumbnail of the uploaded file named 20210401_105538.jpg
A handy person from Merritt Island FL says:
April 1, 2021

I purchased top sash guides. order#1601747

They don't seem to fit correctly

Its a kinco window.

Balance seems to be bad as well. Please advise on the right model #'s thank you for your help.

Kevin

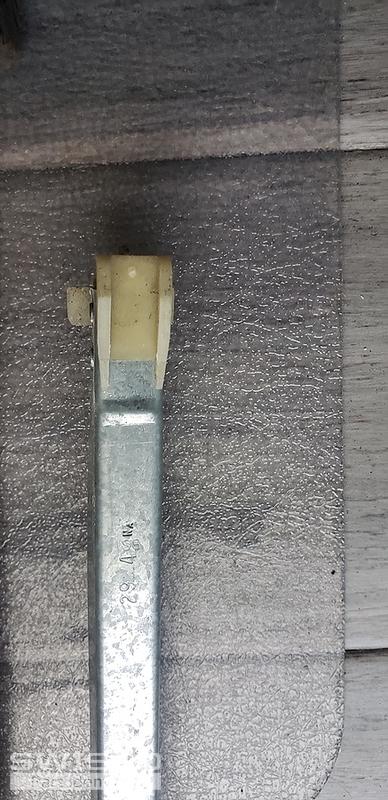

Thumbnail of the uploaded file named 20210401_105546.jpg

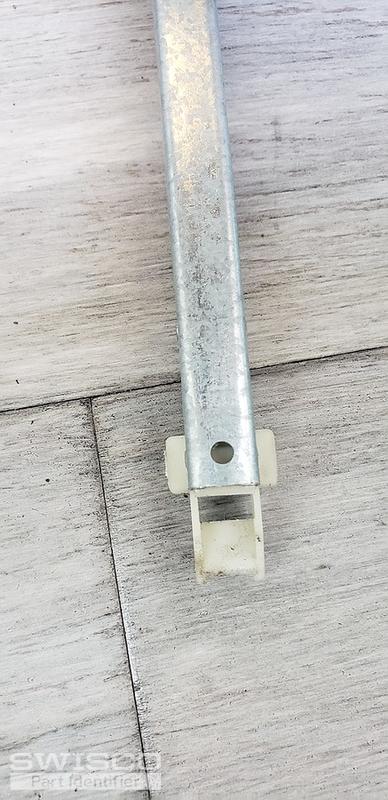

Thumbnail of the uploaded file named 20210401_105552.jpg

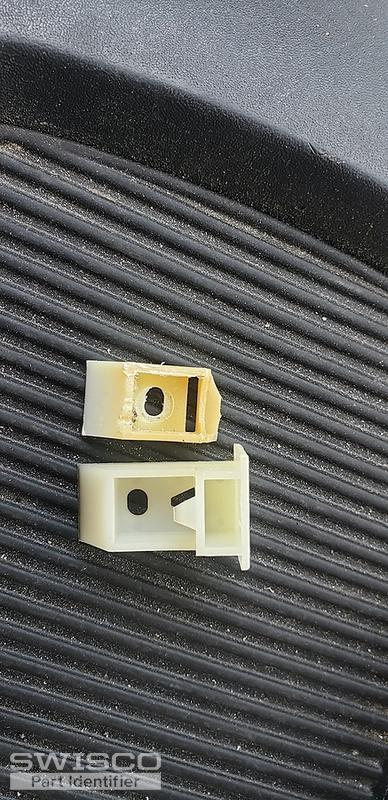

Thumbnail of the uploaded file named 20210401_111835.jpg

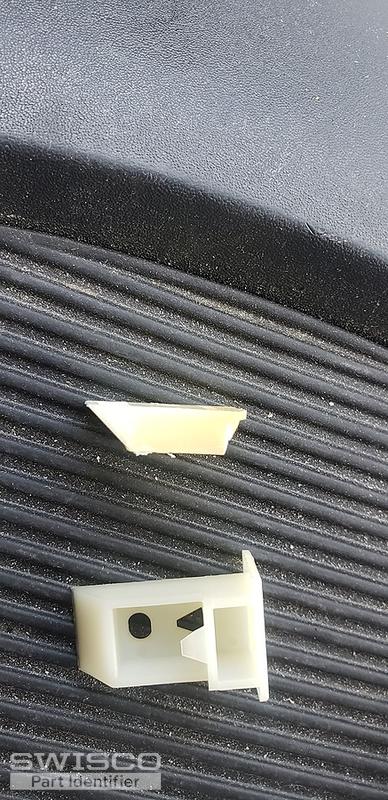

Thumbnail of the uploaded file named 20210401_111839.jpg

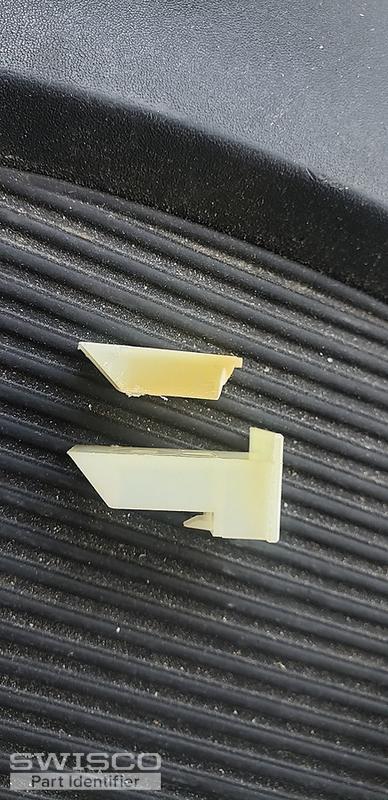

Thumbnail of the uploaded file named 20210401_111845.jpg
Profile picture of Paul
Paul from SWISCO responded:
April 5, 2021

You are showing us a broken top sash guide without dimensions, so look and compare Kinco's other top sash guide, the 18-166. Compare to an undamaged guide to see if this matches up. As far as the channel balance goes, if the depth of the bottom balance fitting is 1-3/32", then you can use S385-30 with a stamp option of 2940.
5/8" Top Sash Guide, Kinco
5/8" Top Sash Guide, Kinco
18-166
$1.33
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
