Window balance

Question

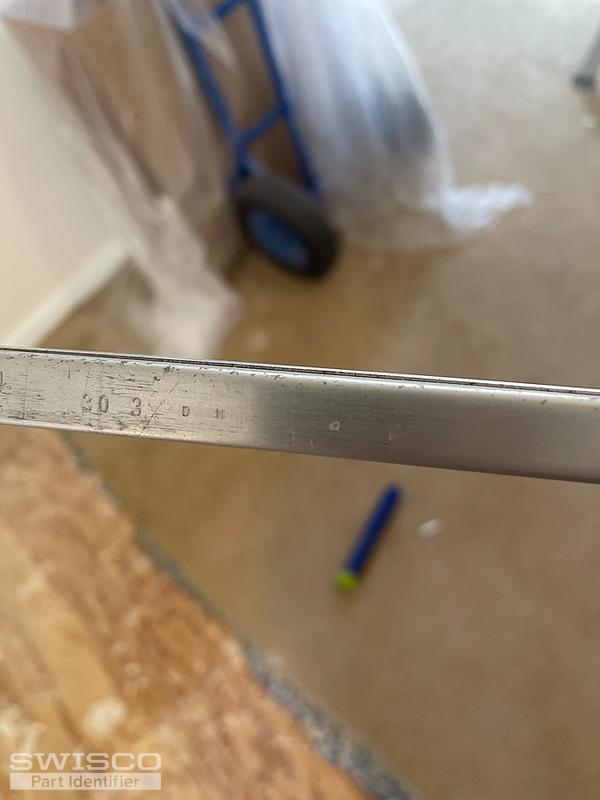

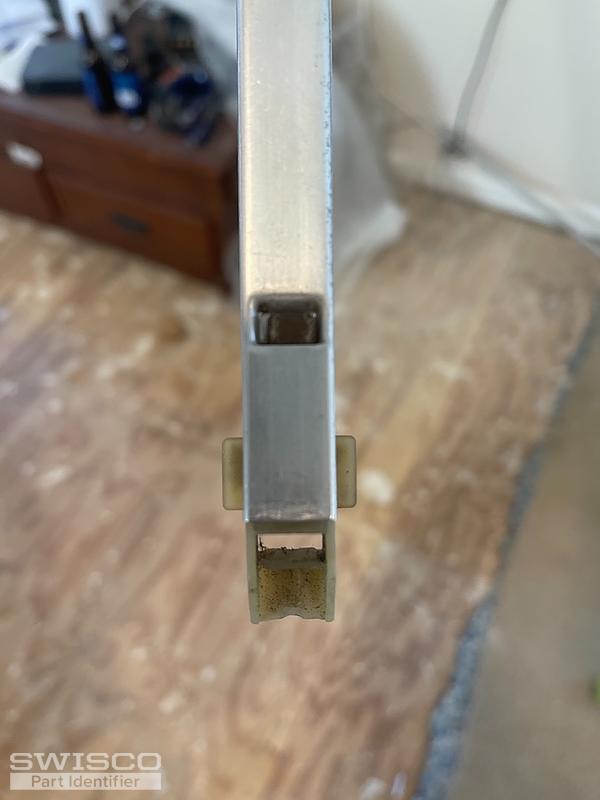

I am searching for replacement window balancers. I am having a hard time determining the correct ends. The metal is 31" long x 1/2" . Stamped on it 30 3 D H. The wings measure 15/16 apart 1"deep. Any help would be greatly appreciated. Thank you

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3030 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
