Window balance

A home owner from Carlsbad, CA says:
July 14, 2021

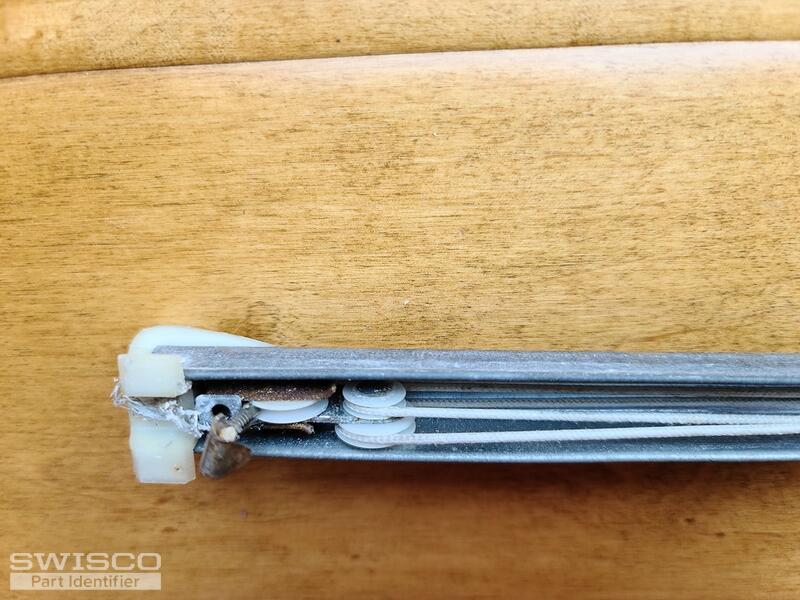

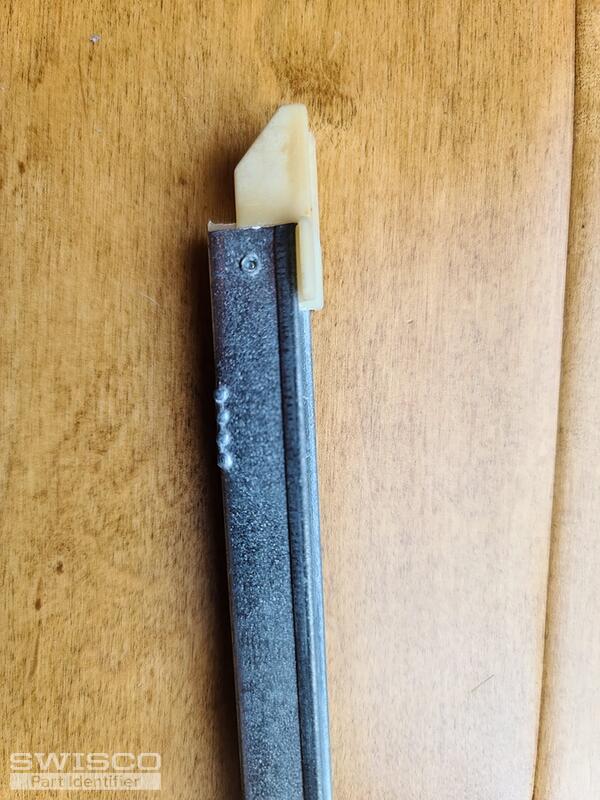

I have more fix but I can't upload. My window weight is about 18lb.
Thumbnail of the uploaded file named 20210714_110310.jpg
Thumbnail of the uploaded file named 20210714_110147.jpg
Thumbnail of the uploaded file named 20210714_110053.jpg
Thumbnail of the uploaded file named 20210714_110010.jpg
A home owner from Carlsbad, CA says:
July 14, 2021
26 4 fx CMC 11
I think this is part's #.
Thumbnail of the uploaded file named 20210714_110147.jpg
Profile picture of Emily
Emily from SWISCO responded:
July 19, 2021

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. If your window sash weighs exactly 18 pounds, you'll need the 2630 stamp option for a sash weighing 13 to 19 pounds. You might want to re-weigh your sash to confirm that it indeed weighs 18 pounds.

If you have any further questions just let us know.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
