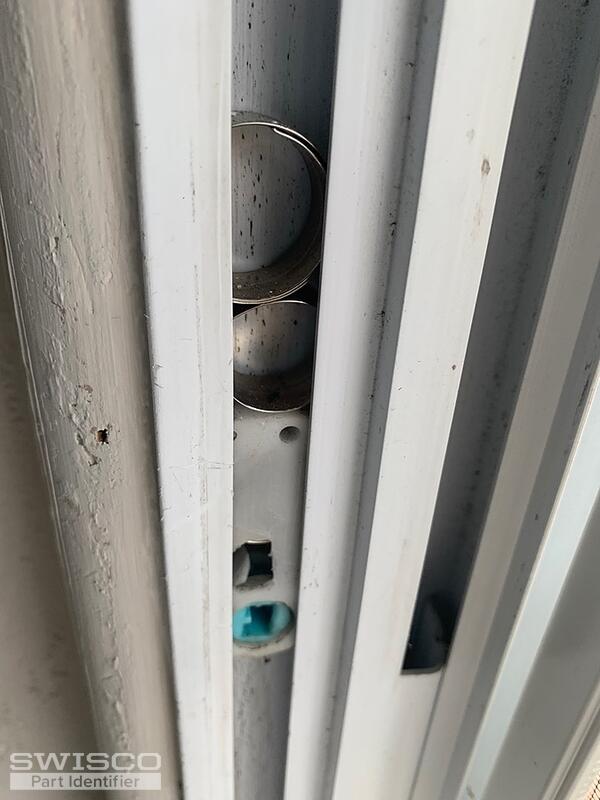

Hi, I need to obtain two of these coil balances. They use a single coil. The weight of the pain is about 16 to 16.5 lbs. you can also let me know if there are other associated parts that I may need in addition to the coils. I may have to cut a slot in the track as there is no way to remove the coil without spreading the entire jamb.
Let me know your thoughts.
Thanks much.
Courtney
Emily from SWISCO responded:
August 15, 2022

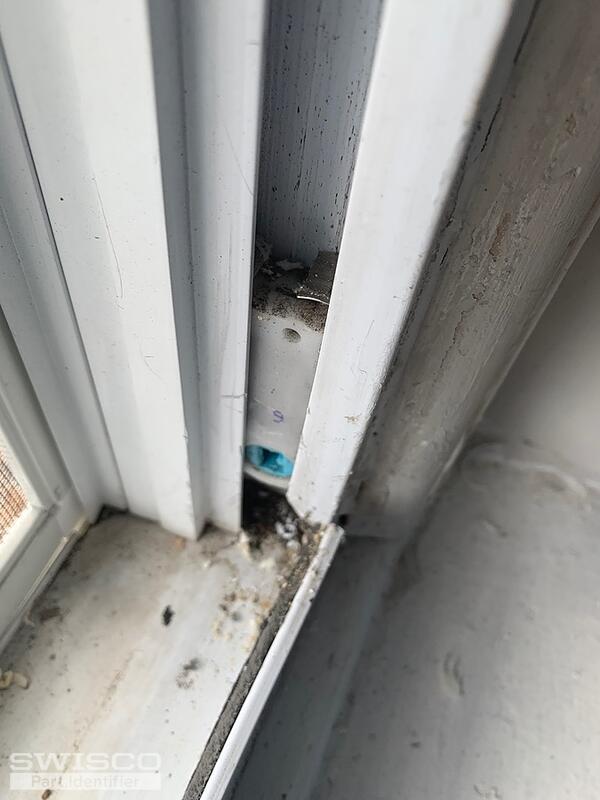

Hi, Courtney. The pivot shoe in your pictures resembles our 15-087 which uses the Series 180 coil springs. Since your shoe is stamped with the number "9", see the S180-9 9 pound spring. Look these parts over and see what you think. |
Emily from SWISCO responded:
August 15, 2022
No, all these parts are sold separately. With coil balance assemblies, you only need to replace what's broken. So if the coil springs and other parts pictured in the diagram are in working order, you can re-use them. |
