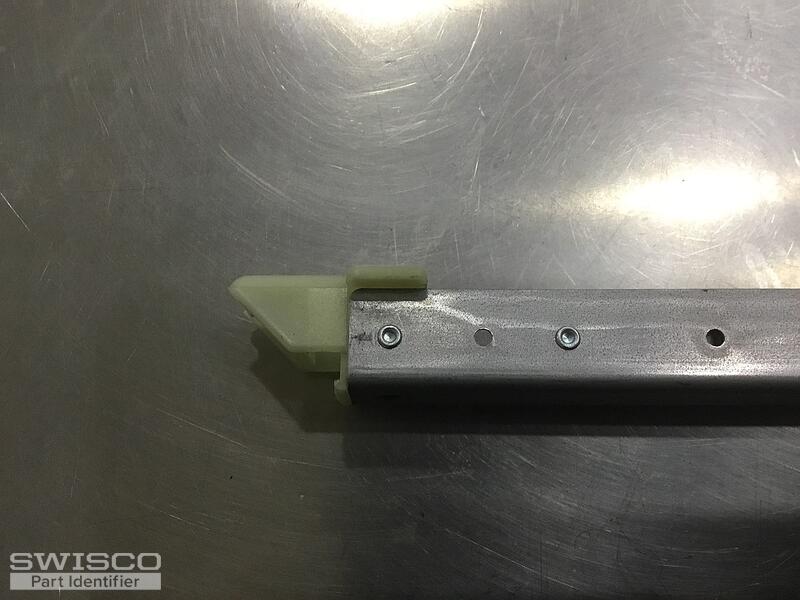

Hi I need 4 of this balances if you could help me with this pictures I would appreciate it. thank you
Window balance
Quick Learner from Orlando
Dec 15, 2022 1:37 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Dec 15, 2022 2:03 pm
Hello,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need the stamp code on your metal channel to choose the corresponding spring strength option for your replacement balances. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Orlando
Dec 15, 2022 2:29 pm

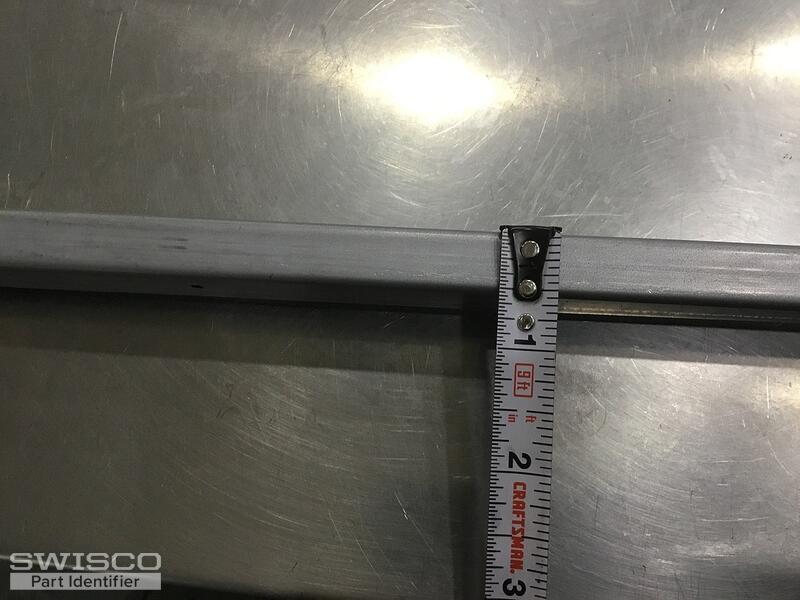

Hi Casey I measured the base again and I'm getting 1 3/32" across thanks
Casey from SWISCO
Dec 15, 2022 2:54 pm
Great, then you'll need the S385 channel balance. Once you confirm the stamp code on your original balance, you should be good to go.
