Window balance : SWISCO.com

Quick Learner from Oregon

May 28, 2023 2:36 pm

Can you please help us determine which window balance to purchase to replace this one? The window says EPI. It's on the left side of the window. Thank you!

3 user uploaded images

4 Replies

Lauren from SWISCO

May 31, 2023 11:30 am

Hello, thank you for posting,

To further review, are you able to show us closer images of the top and bottom nylon attachments? From there we can narrow down the series of balance for your window. Thank you!

Quick Learner from Oregon

May 31, 2023 2:50 pm

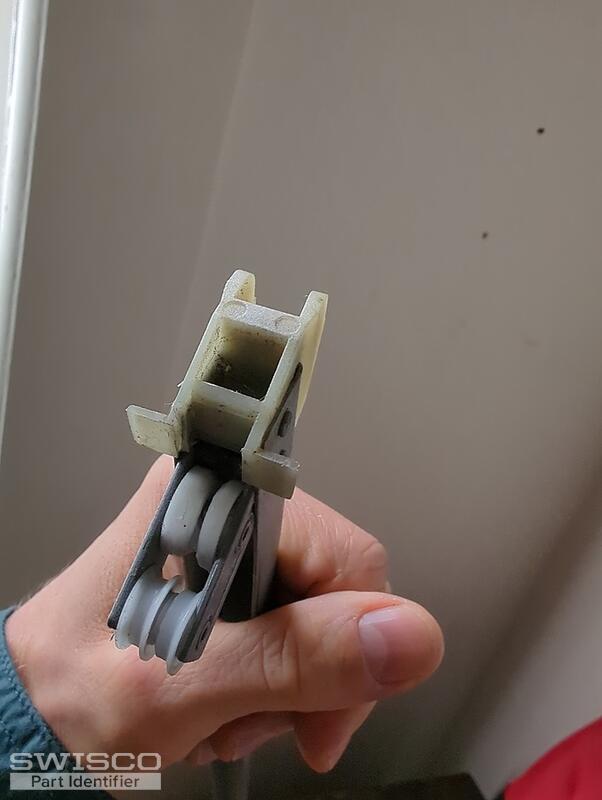

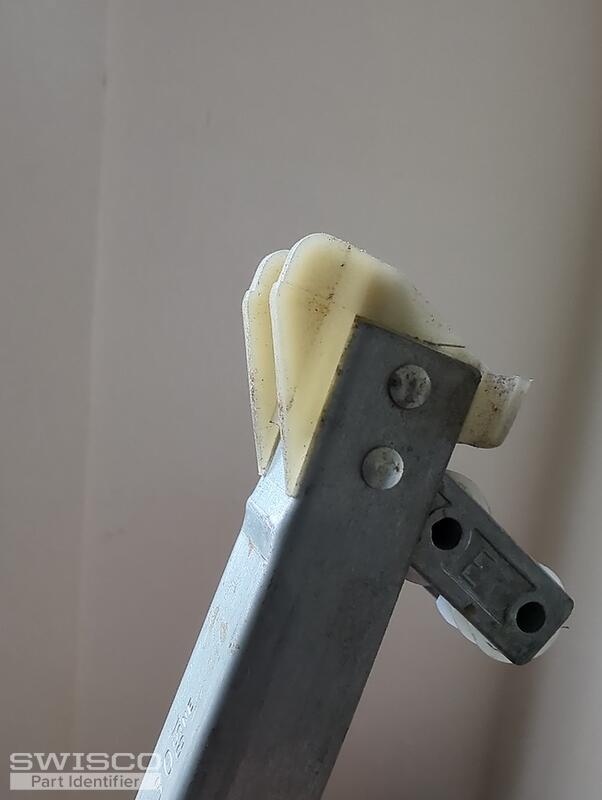

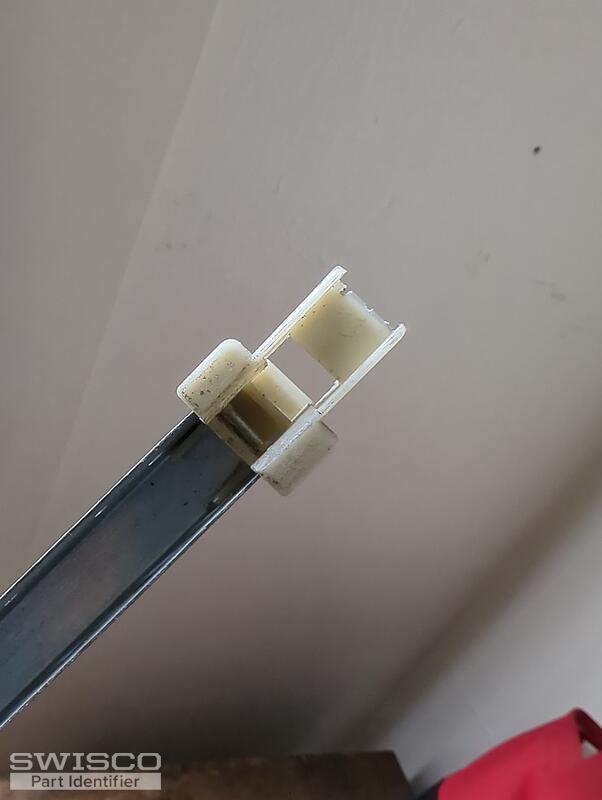

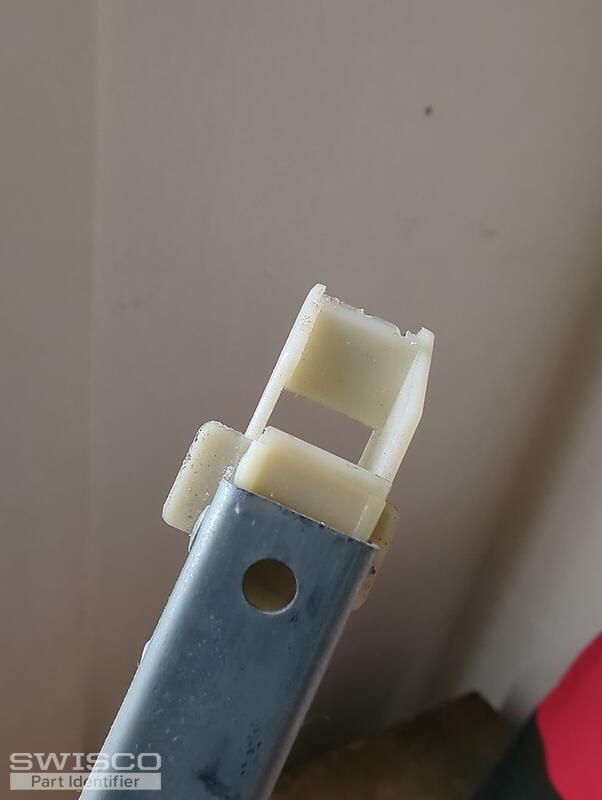

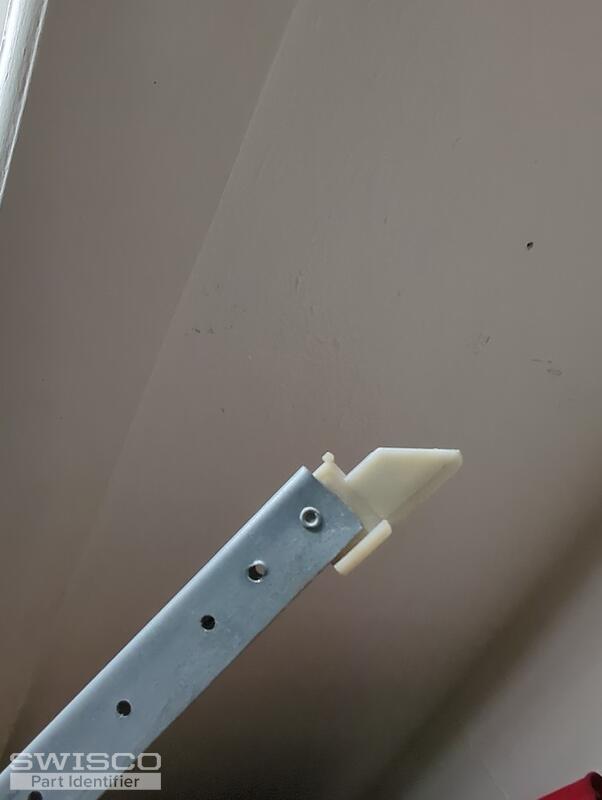

Thanks for your response. Are these photos helpful?

Thanks,
Joey

5 user uploaded images

Lauren from SWISCO

May 31, 2023 3:24 pm

Thank you for the additional pictures!

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 29" long and you will need a 2830 stamp option.

Please review and let me know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
