Window balance

Quick Learner from Jacksonville florida

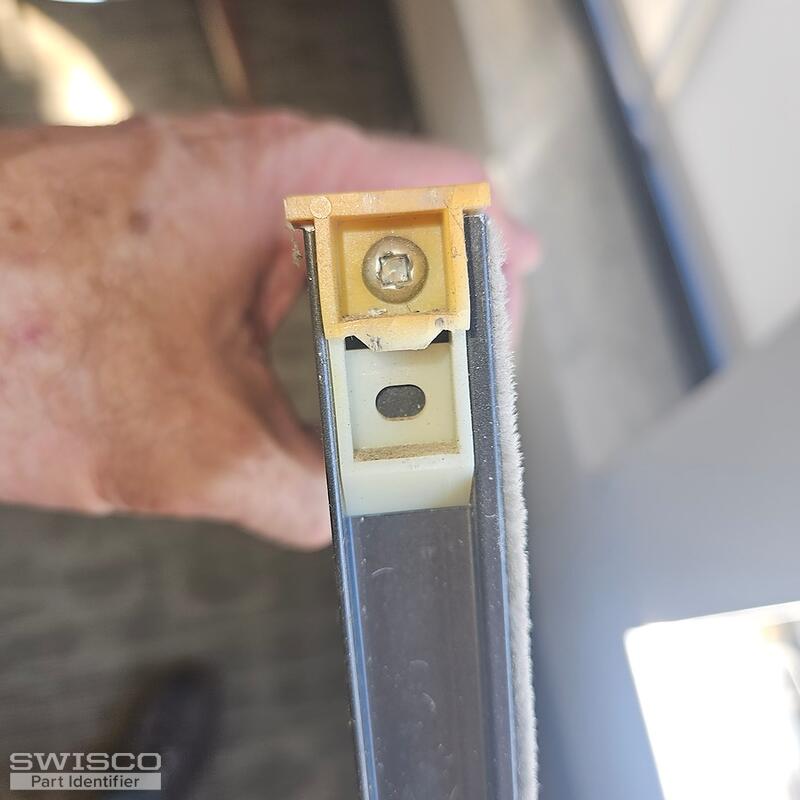

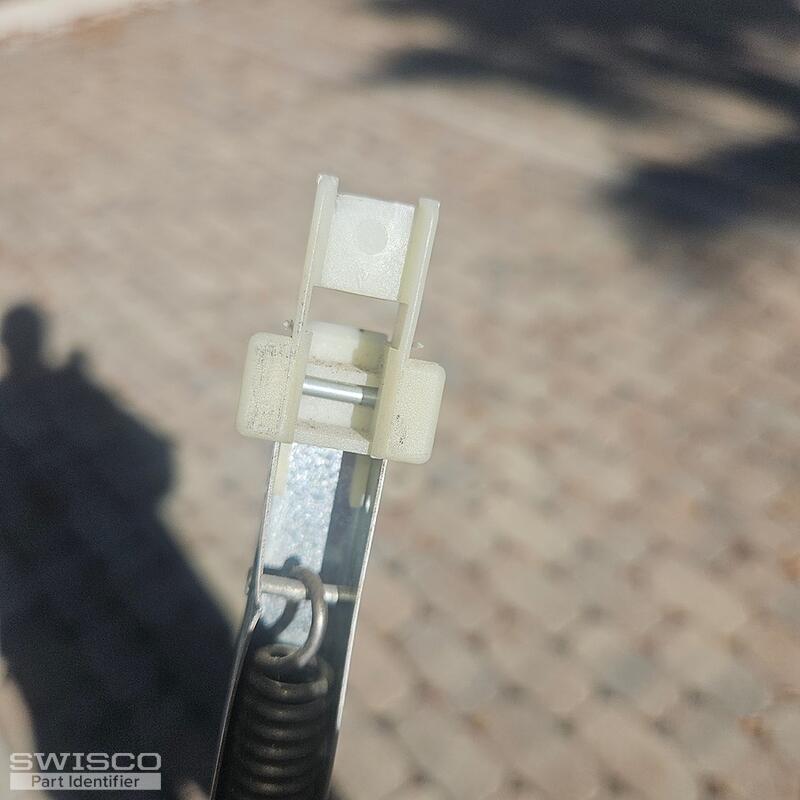

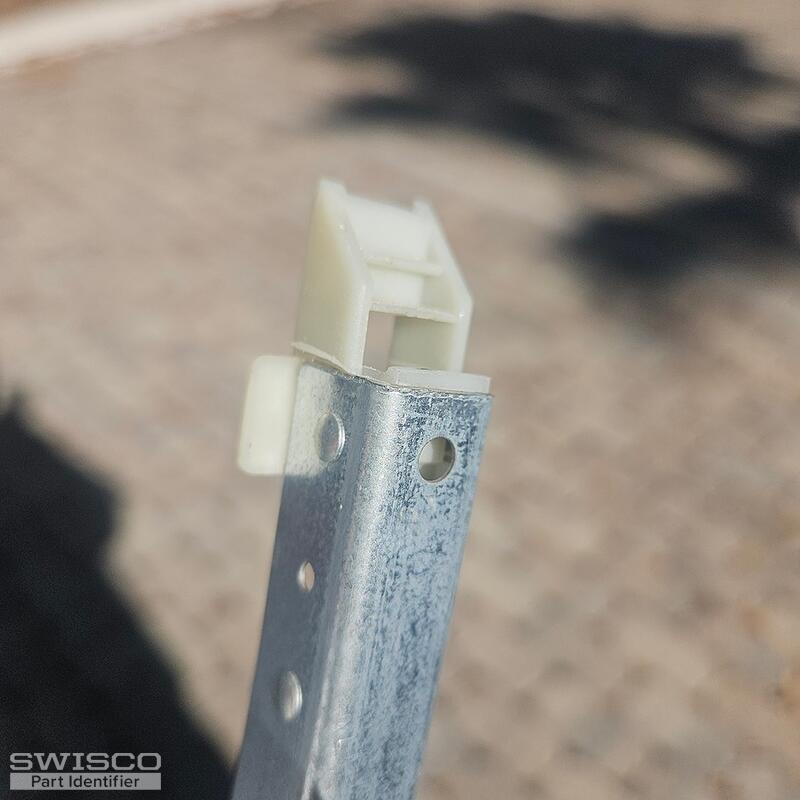

The metal part is 30" long x 1/2" wide. The top sash guide is 7/8" wide x 1 1/2" tall.

4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! I am certain we have a replacement recommendation for your window balance; however, to identify the correct replacement, I'll need to see a photo of the top nylon attachment. Please also confirm the measurement for the depth (front to back) of the bottom shoe.

Profile view of a winged balance attachment
Profile view of a winged balance attachment

Your top sash guide reminds me of the 18-166 5/8" Top Sash Guide for Kinco windows. Carefully look over the dimensions to confirm that this is the correct fit.

Detail of 18-166
Detail of 18-166

Profile view of 18-166
Profile view of 18-166

Quick Learner from Jacksonville florida
Bottom shoe depth is 1"
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming! You can use the S380-30 Channel Balance. You'll need to select the 2940 stamp option.
