Window balance: "26 3 DU CMC 4"

Handy Person from Irvine, CA

Jul 16, 2024 2:06 am

Hi,

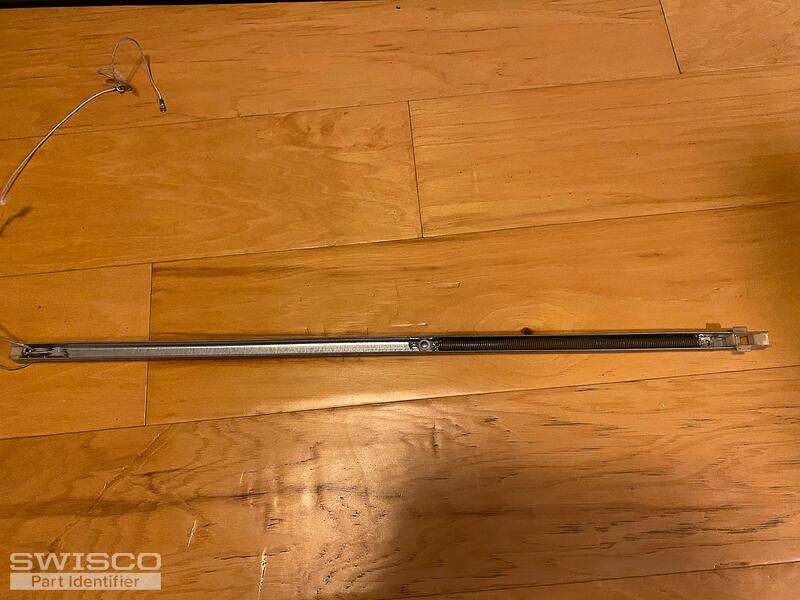

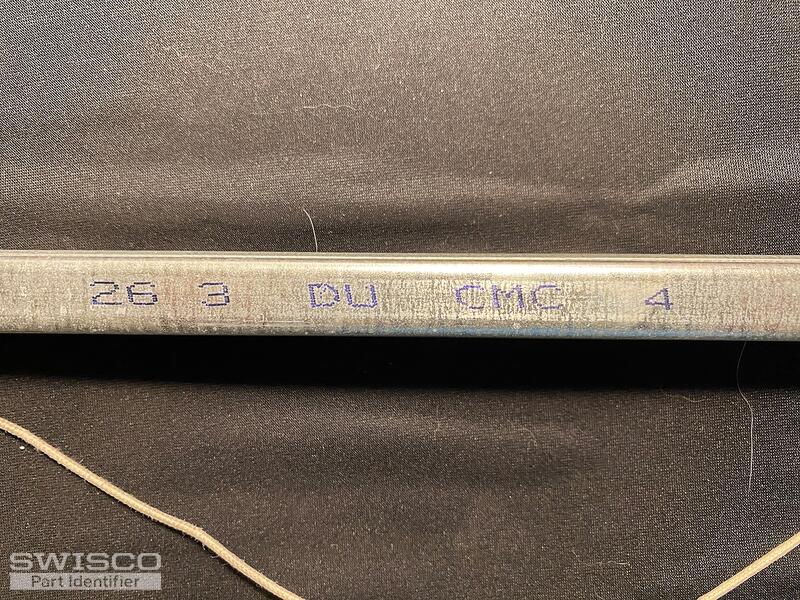

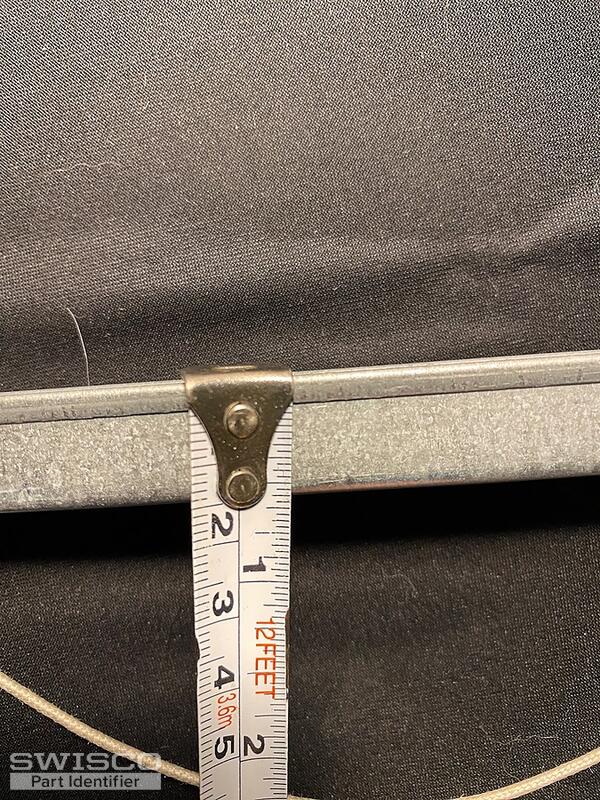

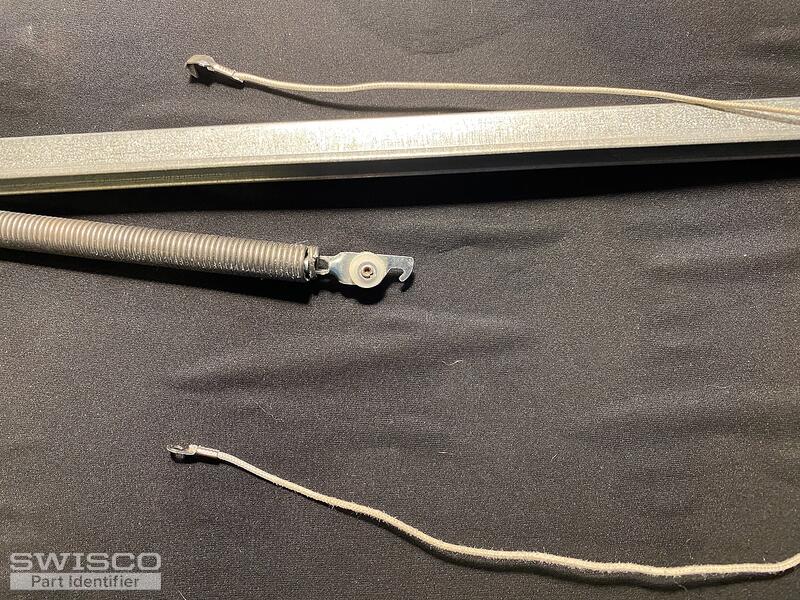

My window balance is broken, and its code is "26 3 DU CMC 4." I included a few photos. Can you recommend the right part? I may need to buy two. Thank you.

5 user uploaded images

8 Replies

Handy Person from Irvine, CA

Jul 16, 2024 2:07 am

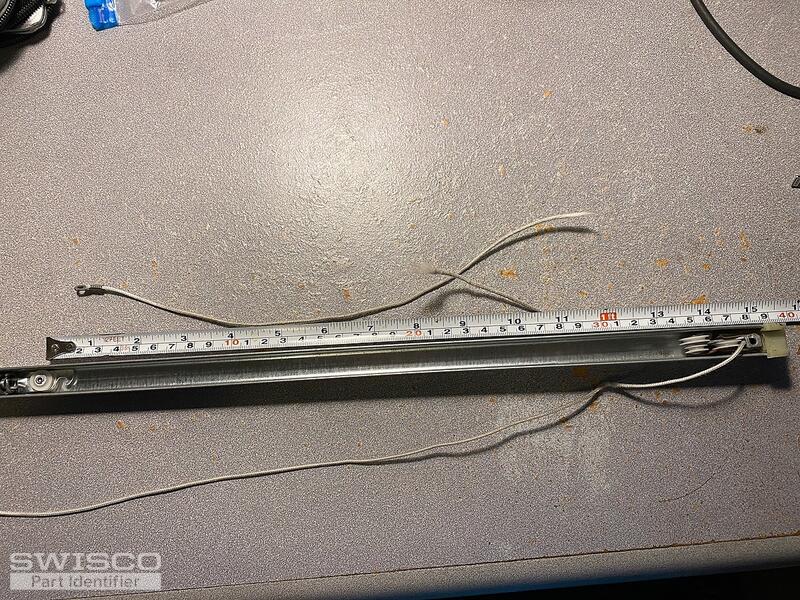

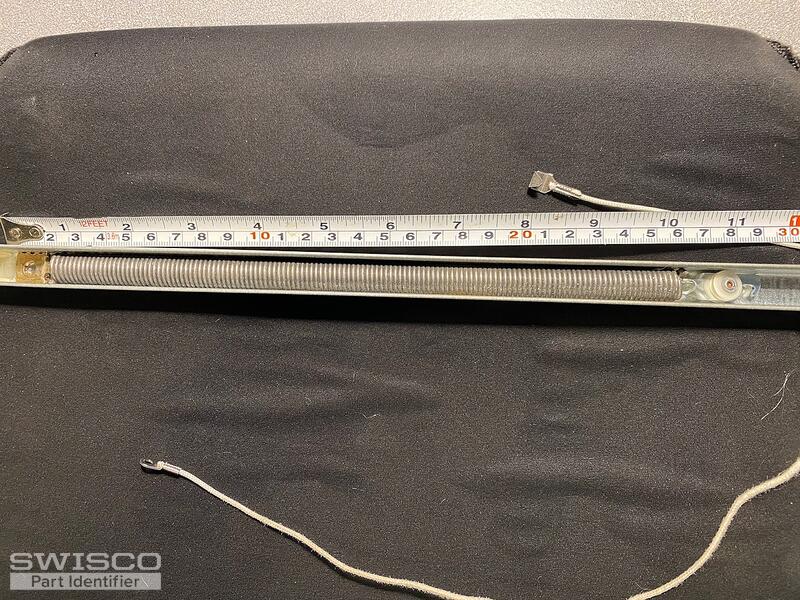

Two additional photos to provide more information.

3 user uploaded images

Jasmine from SWISCO

Jul 17, 2024 2:33 pm

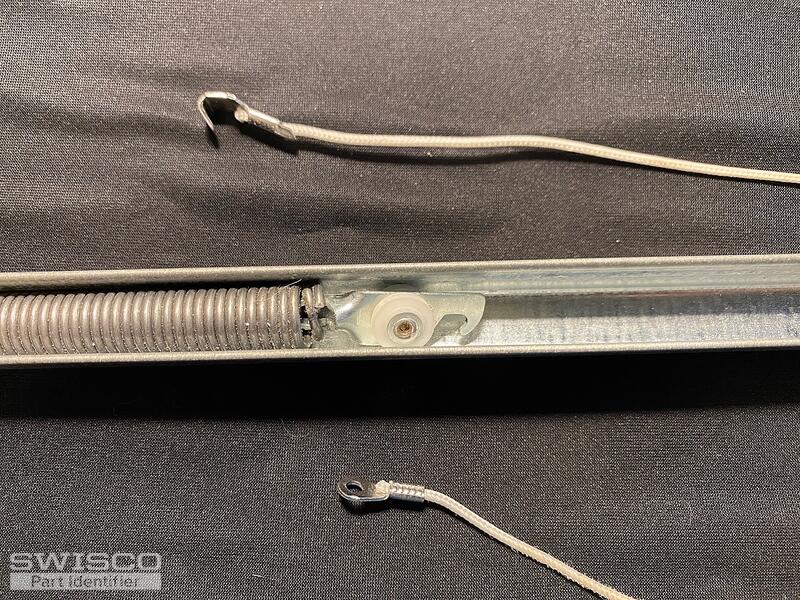

Thanks for writing in! I am confident we can supply you with a replacement for the balances you have but I'll need to see a clearer photo of the bracket installed at the center of the balance.

I see it here in the photos but it is difficult to make out its shape, even when zooming on the photo. This bracket typically connects the pulley system to the spring in the center of the balance.

Please don't hesitate to reach out with any questions you might have.

Handy Person from Irvine, CA

Jul 18, 2024 1:42 am

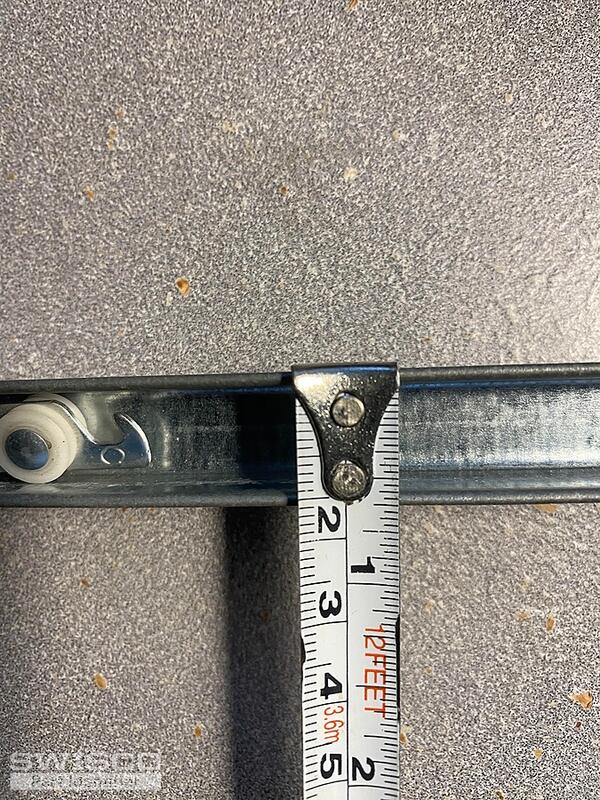

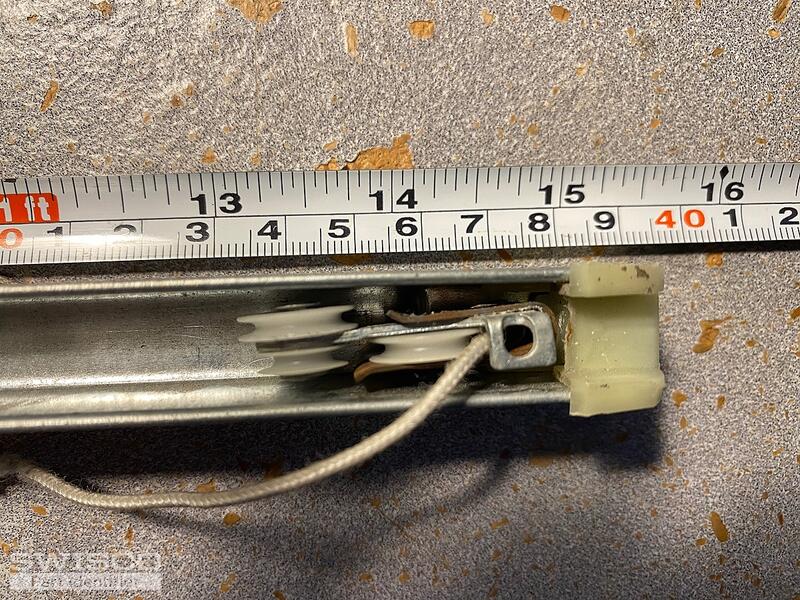

Thank you for the reply. I attached additional photos. Hope they are clear.

5 user uploaded images

Jasmine from SWISCO

Jul 18, 2024 10:09 am

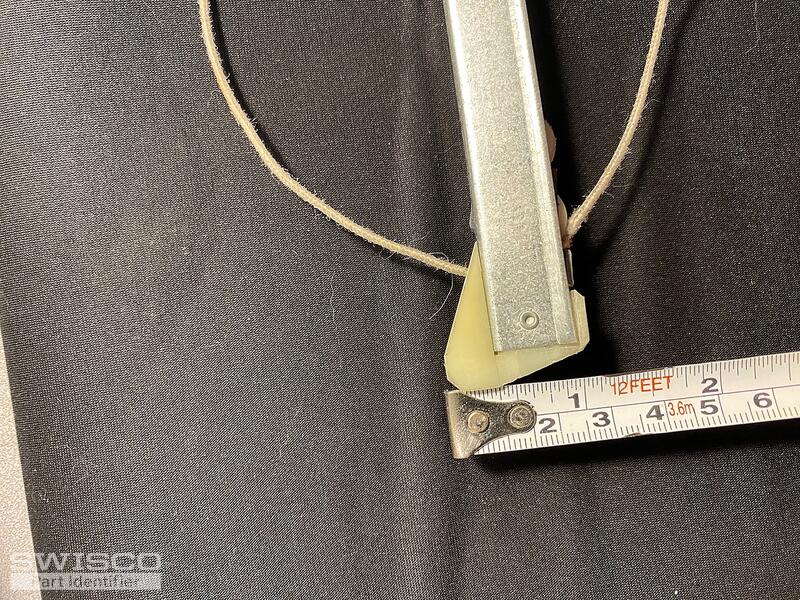

Thanks for the photos! Your balances can be replaced with either the S380-27 with a 1" shoe depth or the S385-27 with a 1-3/32" shoe depth. To determine which of these is the correct replacement, you'll need to confirm the measurement for the depth of your shoe.

You'll need the 2630 stamp option.

Comparison of the S378, S380 and S385 balance shoes.

Handy Person from Irvine, CA

Jul 18, 2024 12:35 pm

Thank you. I just purchased two parts of S385-27 with the 2630 stamp option. Hopefully it's correct!

Handy Person from CA

Jul 31, 2024 12:55 pm

I installed both balances just now and they worked perfectly. Thank you very much for the great help!

Jasmine from SWISCO

Jul 31, 2024 2:59 pm

Thanks for taking the time get back to us! I'm glad to hear that these are what you needed to repair your windows.

Please don't hesitate to reach out with any other hardware repairs you might have.

Have a great weekend!
