Window balance 30 inch stamp r 29-5 winged : SWISCO.com

Home Owner from Florida

Dec 14, 2024 11:11 pm

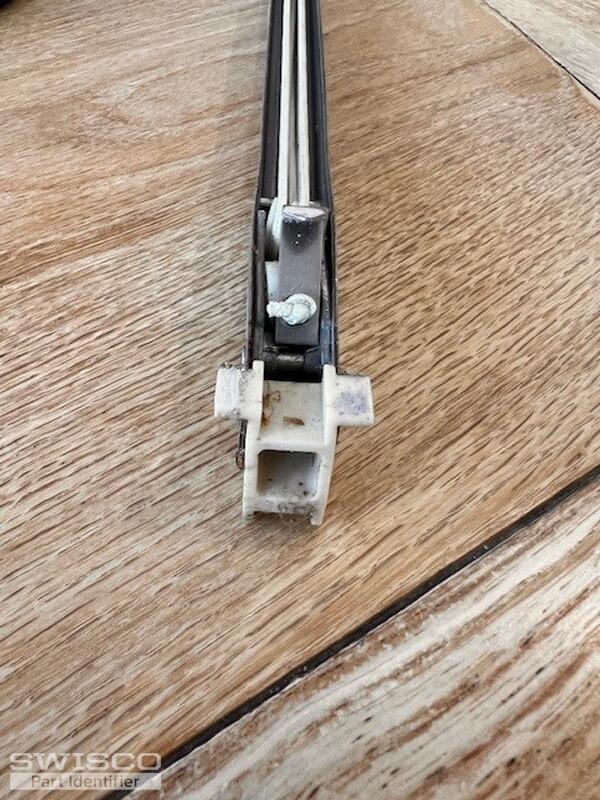

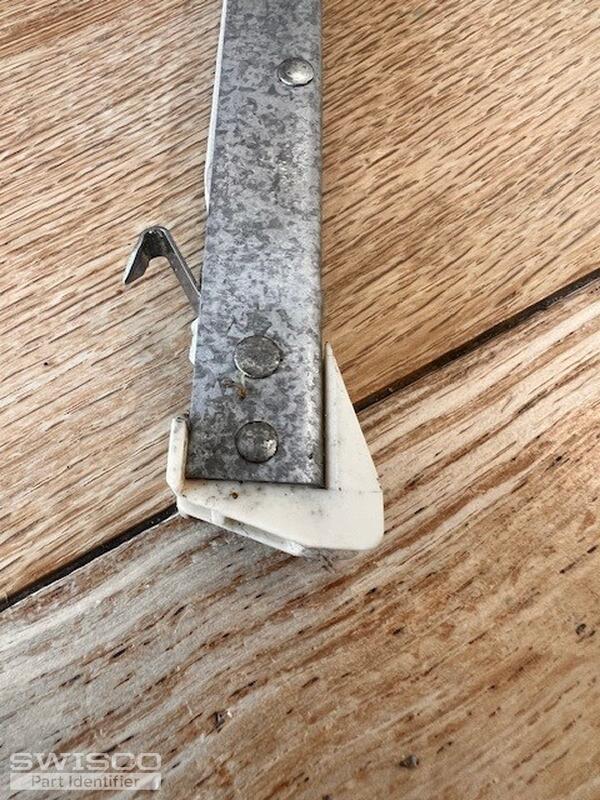

Trying to replace some window balances. They are chanel balances for a non- title windlow and are 30 inch long and 5/8th wide. The stamp on the bottom front is "r 29-5". It is a block and tackle connector. The ends are winged.
Which window balance should I buy?

4 user uploaded images

6 Replies

Emily from SWISCO

Dec 16, 2024 1:22 pm

Hi there!

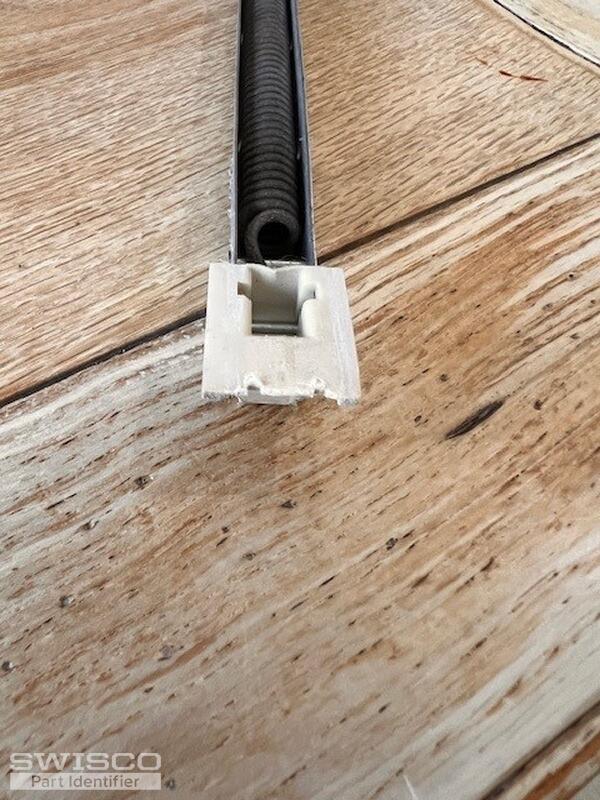

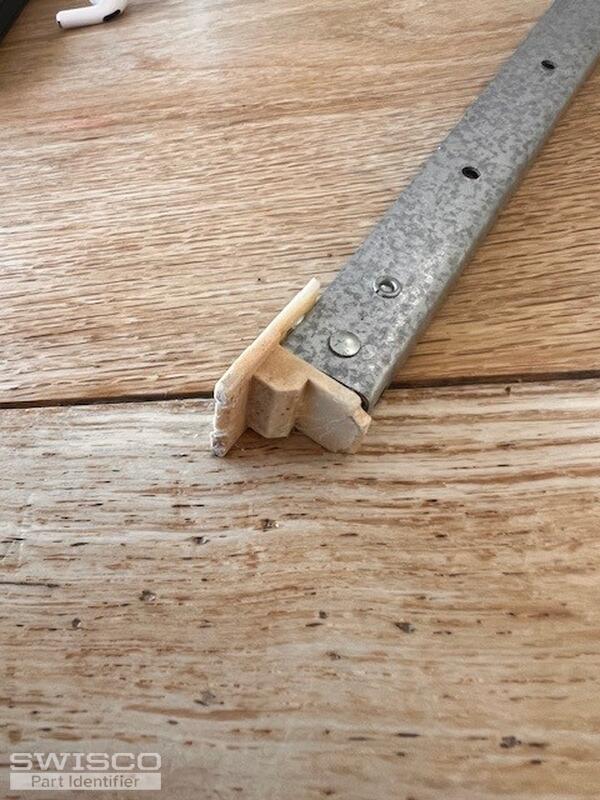

Thank you for reaching out to us. We're happy to look into this. Can you show us an up-close photo of the top fitting? Can you also measure the bottom shoe as shown below and tell us the depth?

Profile view of a winged balance attachment

Home Owner from Florida

Dec 16, 2024 3:44 pm

7/8" wing width
1" bottom fitting depth

4 user uploaded images

Emily from SWISCO

Dec 17, 2024 8:04 am

Perfect, thank you! Our S377-30 with the 2950 stamp option looks like a match. This comes with the 19-018 top fitting and 15-005 1" deep shoe. Take a look and let me know if you have any questions.

Home Owner from Florida

Dec 29, 2024 9:42 am

Good morning,

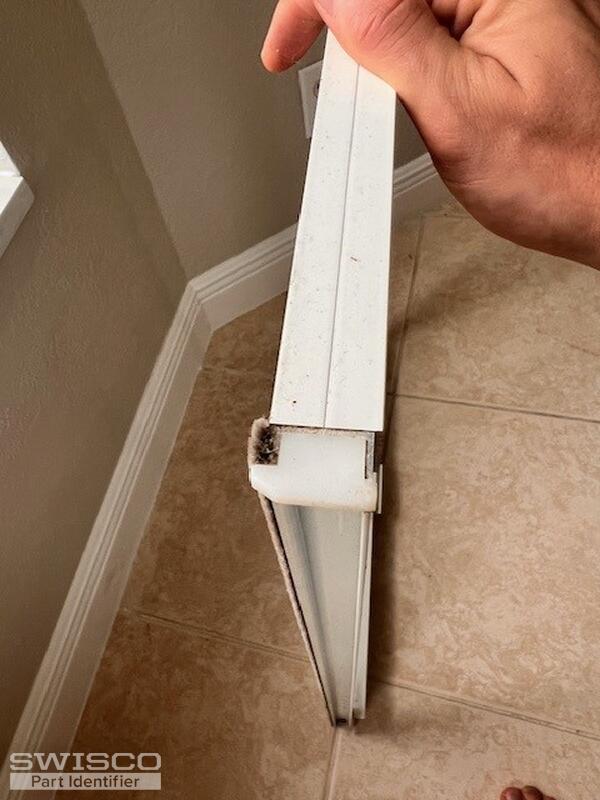

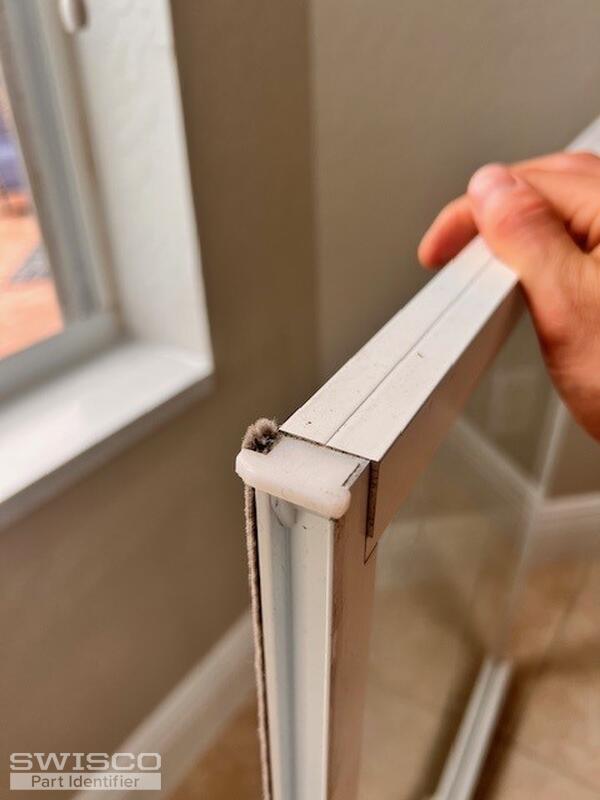

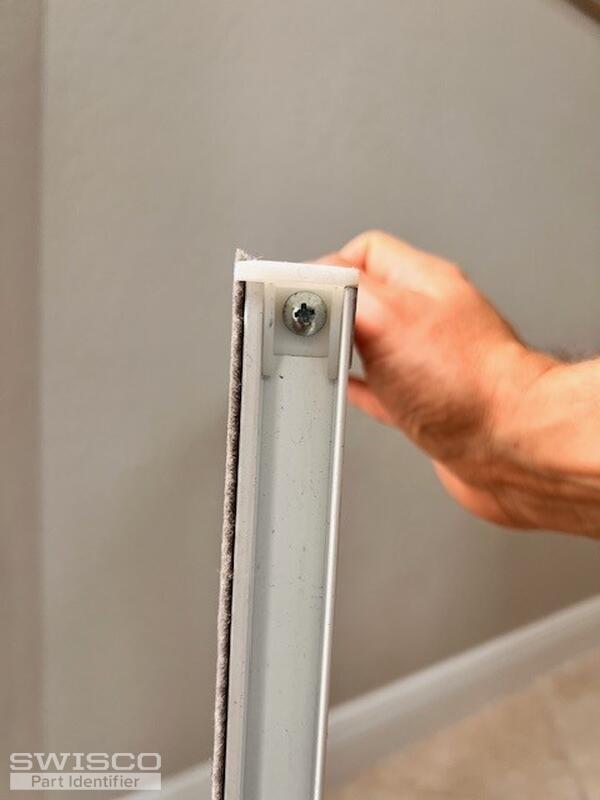

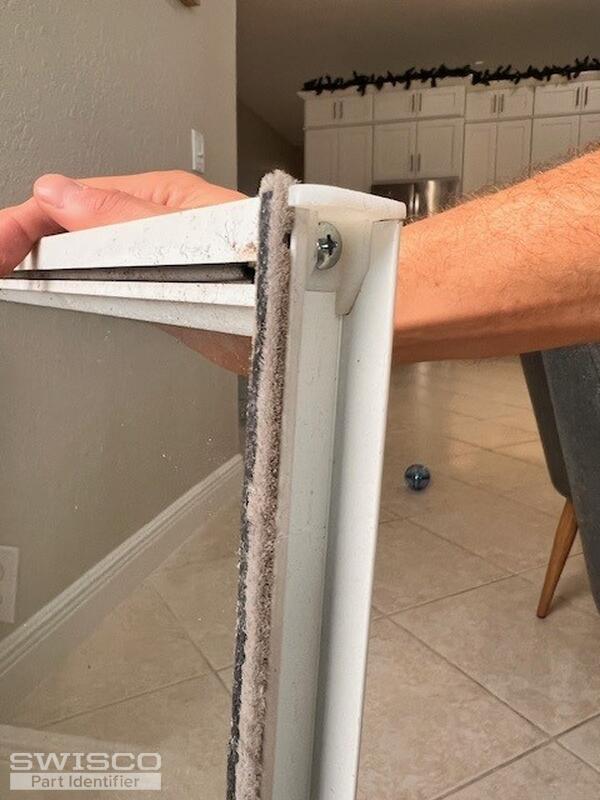

It seems that I am now in need of the plastic pieces that screw into the top of the window. Please see attached images. There is a right and a left.
Size:7/8" tall5/8" base width1" wings width9/16" depth
