Window balance ... 34 inches

A quick learner from Basking Ridge, NJ says:

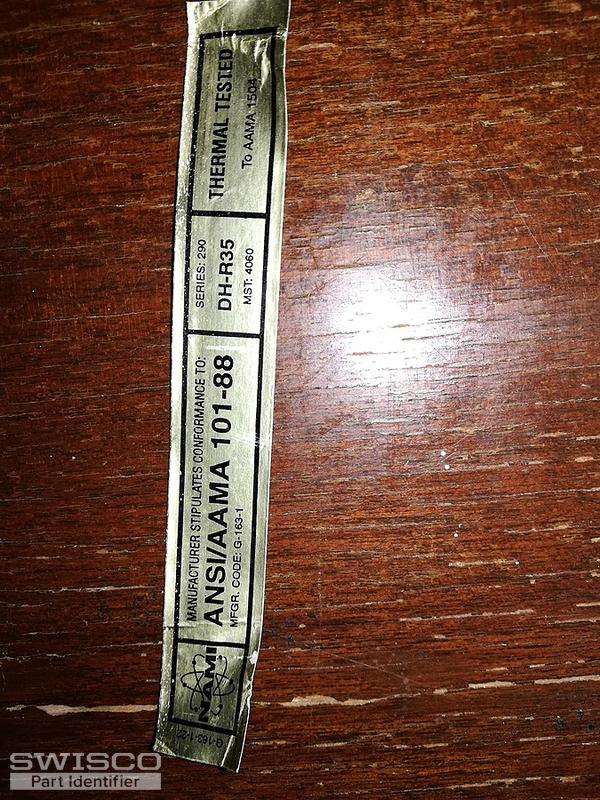

My window balance fell from the window pane and now needs to be replaced. The the spring is detached from the pulley as shown in the attached 3 pictures. I think that the maker of my window is "nami" as shown in the 4th picture (the window's label). Can you identify the balance so i can order its replacement?

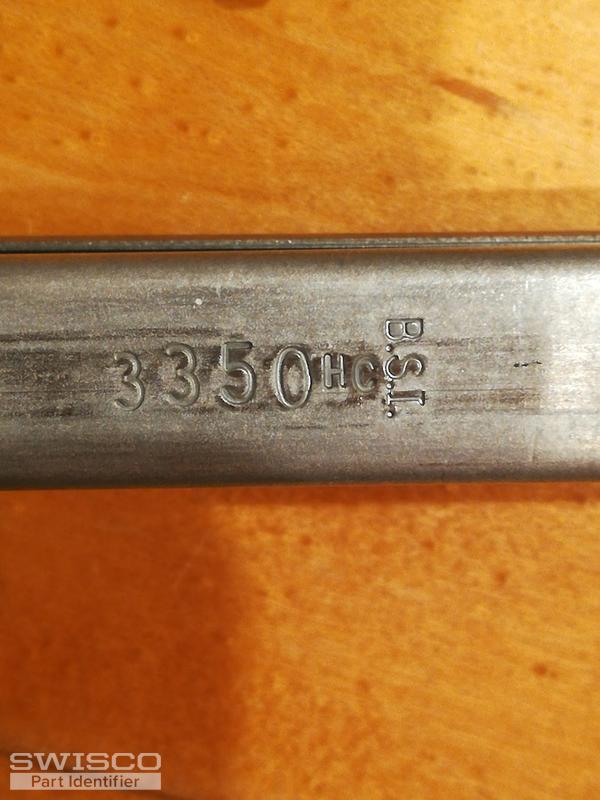

As a follow-up, added pictures of numbers stamped on my balance and broken plastic fitting on end with pulley. The width of channel holding the spring is 9/16 in.

Thumbnail of the uploaded file named 1603151103558769492285751853875.jpg
Thumbnail of the uploaded file named 16031511635814064080858345230247.jpg
Thumbnail of the uploaded file named 16031512065716707446366304392037.jpg
Thumbnail of the uploaded file named IMG_20201019_193356.jpg
Thumbnail of the uploaded file named IMG_20201019_202515.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello, thanks for posting! It looks like you will need our S395-34, with the stamp option 3350. Good luck with your repair!

A quick learner from Basking Ridge, NJ says:

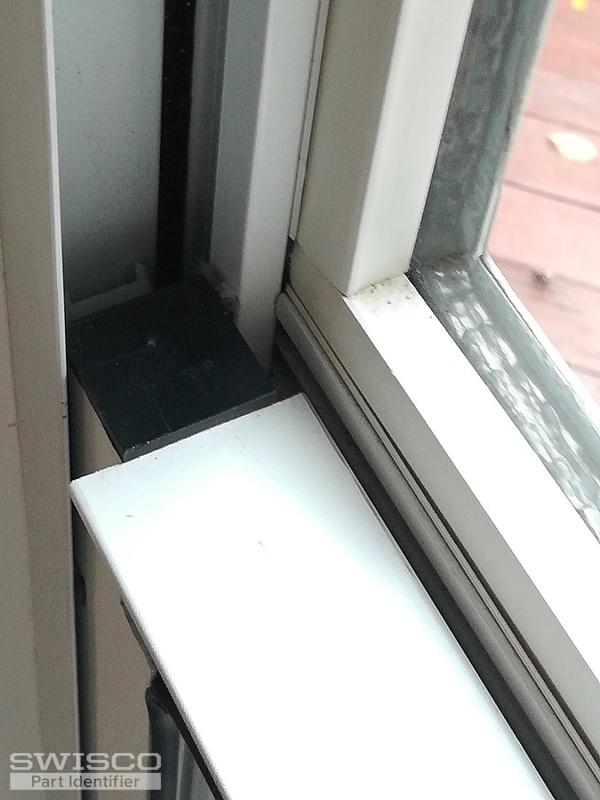

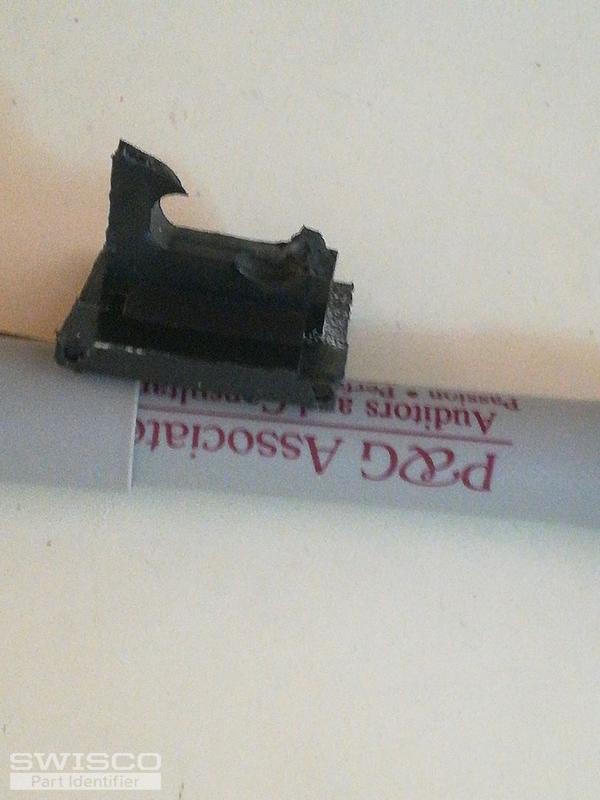

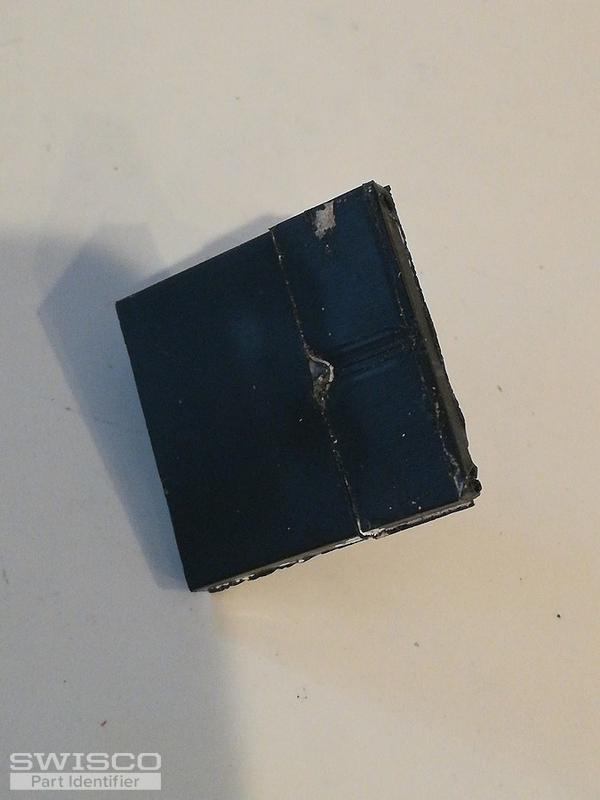

Hi. Will be ordering two balances and try the installation. Related to the job is one broken piece but not exactly the same as your top sash guide. See picture. Can you identify it and let me know if it's
only cosmetic? Thanks.
Thumbnail of the uploaded file named 16033752297165024598639779964966.jpg
Thumbnail of the uploaded file named 16033753056993209583059117737978.jpg
Thumbnail of the uploaded file named 1603375352802420006667117760079.jpg
Profile picture of Casey
Casey from SWISCO responded:

This does appear to be a top sash guide. The top sash guide serves the important function of containing your channel balance. Unfortunately I can not identify a replacement part without seeing a fully intact version. You can review the associated parts for some possible substitutes. Be sure to look over their dimensions and compare them to what you have.

A quick learner from Basking Ridge, NJ says:
Hi.
Attached are pictures of top sash guide. Please let me know if you can identify.
I got the balances.




Profile picture of Casey
Casey from SWISCO responded:

Take a look at our 18-157. This looks like a match to me!

A quick learner from Basking Ridge, NJ says:
Thanks. Just ordered the sash guides you identified. Had a test run with the new balances but found it difficult to get the window back in the frame. Keeping fingers crossed when i try intalling the window again with the new sashes.
A quick learner from Basking Ridge, NJ says:
Thanks for your help. After getting the parts you had recommend, i was able to successfully replace my broken window balancee and sash guides.
Profile picture of Casey
Casey from SWISCO responded:

I'm happy to hear that! We really appreciate your business, and hope you'll consider us for your future hardware replacement needs!
