Paul from SWISCO responded:
February 5, 2018
Thank you for your patience in this matter. Unfortunately, we do not have a replacement for this hardware. That shoe has been discontinued for many years and there is no existing replacement. You mentioned you only need the spring, though. While the spring cannot be replaced by itself, we could potentially replace the metal channel balance itself. You would just need to attach the shoe yourself.

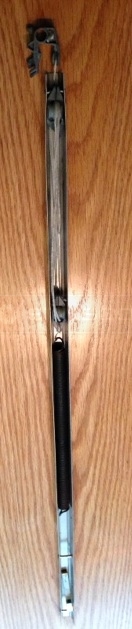

If you are interested, please let me know the length, width, and height of the metal channel, as well as the stamp printed on it. I would also like a clearer picture of the top of the balance where it attaches to the window frame. |
Paul from SWISCO responded:
February 19, 2018
The balance you purchased has a spring weight too strong for your window. Your original balance had stamping of "22". Therefore, our S751-23 channel balance with a 22R option should make a good replacement. It holds a sash weigh range of 10-18 pounds.
To switch the bottom balance shoe, first, you will need one locking plier and regular plier. Next, you pull the shoe from the balance a few inches and lock the cord with the locking plier, so that you can untie the new shoe and install the old shoe on the cord. |
