Window balance

Quick Learner from Bluffdale Utah
Jul 23, 2022 5:59 pm

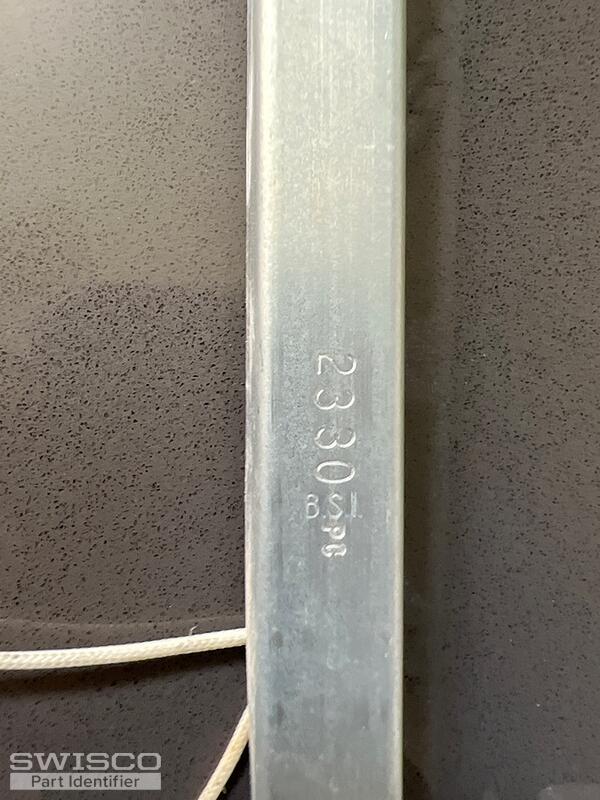

This is 24" long and marked 2320. BSI PO
I need 2

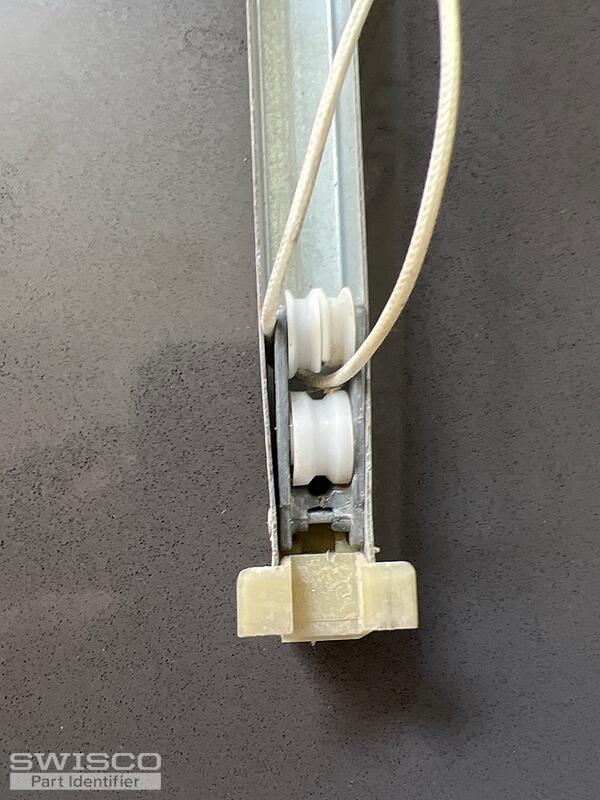

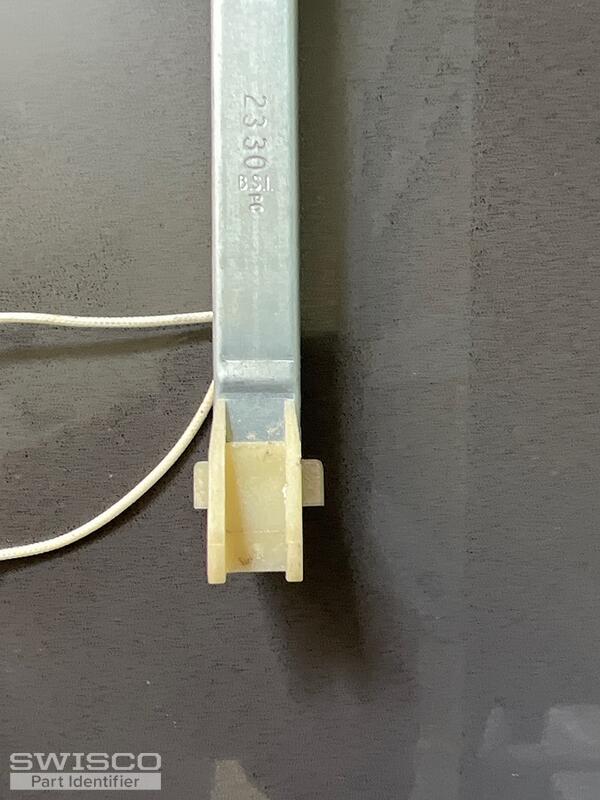

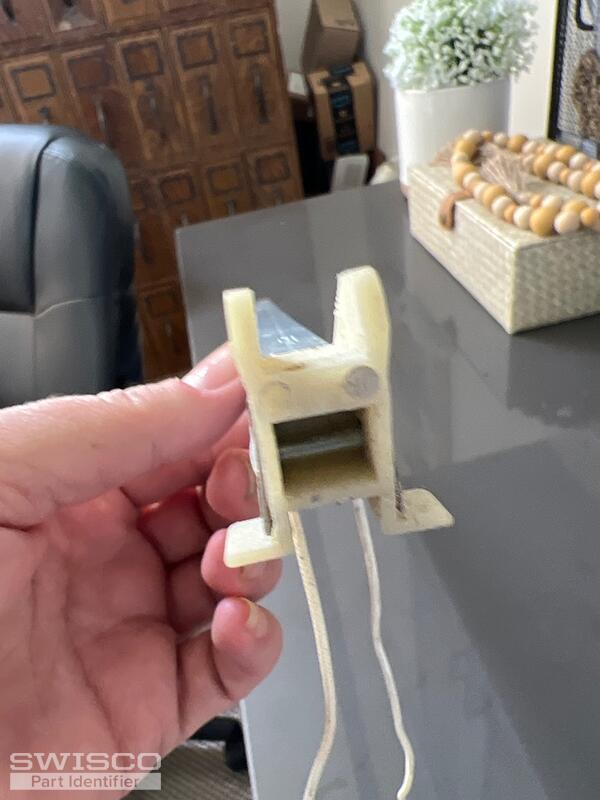

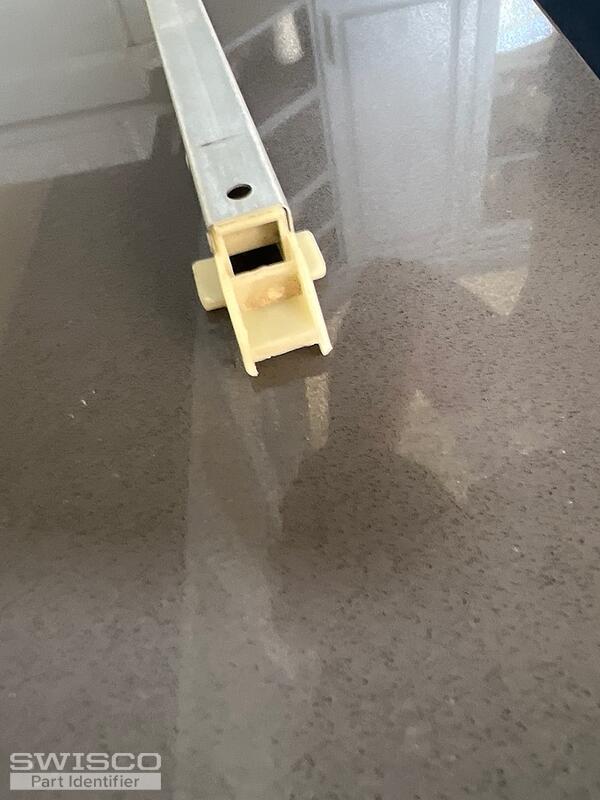

2330 BSI image image image image
5 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jul 27, 2022 3:57 pm
SWISCO
EXPERT

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2320 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
