Window balance

Quick Learner from Garden grove
Jun 18, 2024 4:24 pm

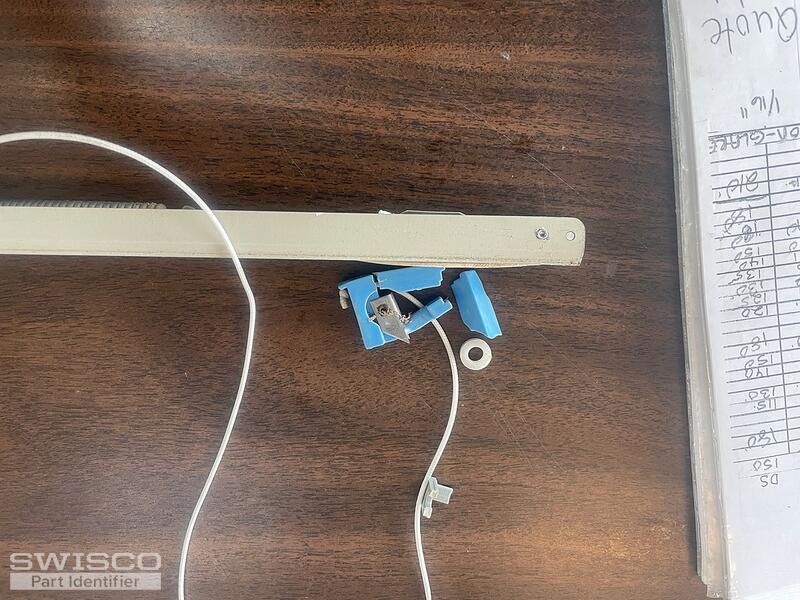

Can you help me look for this balance? It is 34 1/4" long

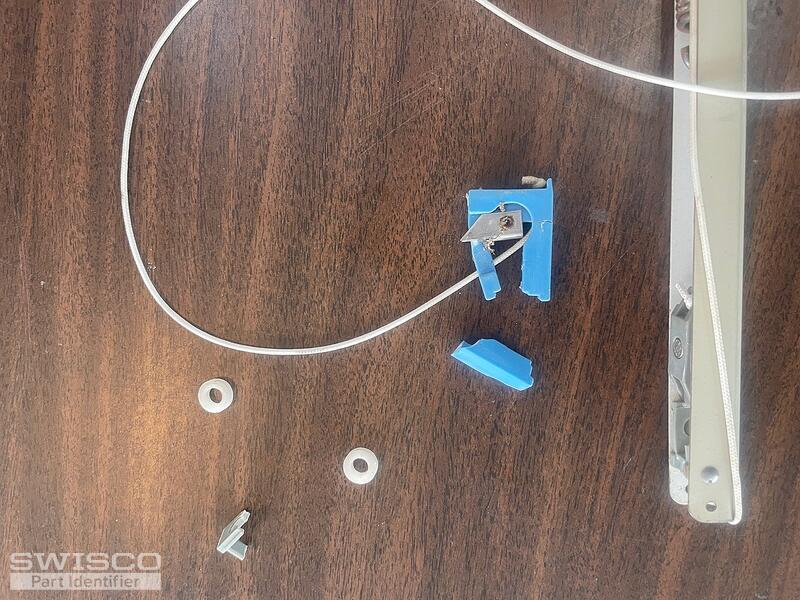

balance channel 32TG stamp channel holes knife lock shoe knife lock shoe blue
5 user uploaded images
1 Replies
Emily
Emily from SWISCO
Jun 21, 2024 8:58 am
SWISCO
EXPERT

Thanks for reaching out to us. This looks like a ribbed channel balance similar to the Series 751. However, your balance appears to use the 15-233 knife lock shoe which means this must be a custom order. Furthermore, the metal channel should measure 33" long based on your stamp. Can you confirm? Can you also confirm the depth and width of the metal channel?

If it's indeed 34-1/4", the closest we can offer is the 34" length but we can't promise a direct fit. Just something to keep in mind as custom orders are non-refundable.

Note that the S751 installs at the top of the track with an S-clip like the 19-029 or 19-030 so you'll want to ensure yours does as well.
