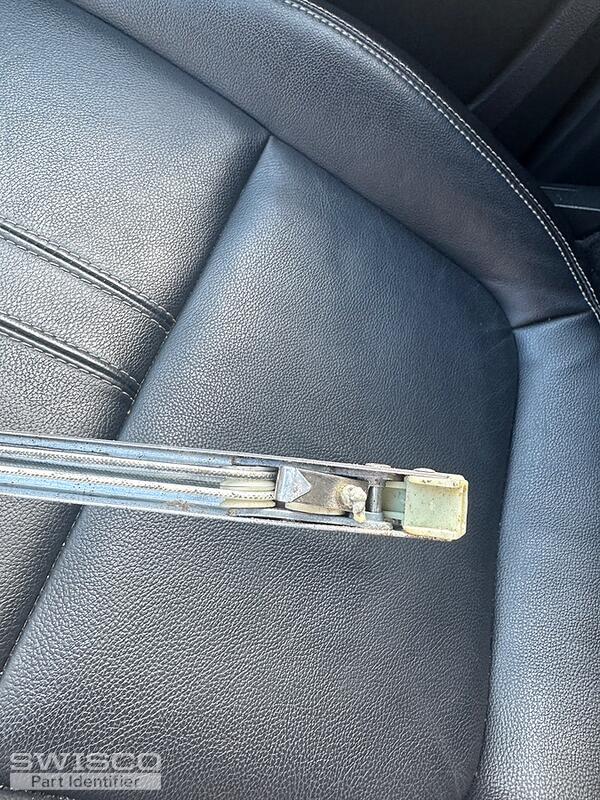

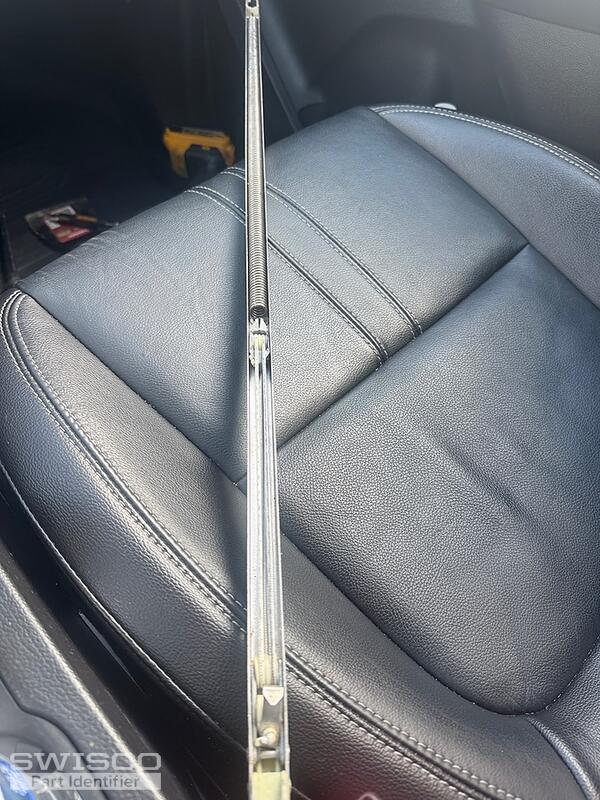

The metal rail is 29 inches long
the number stamped into the rail is J 2840
Window balance
Handy Person from Kansas City, Missouri
May 1, 2025 10:31 am
5 user uploaded images
2 Replies
Bob from SWISCO
May 1, 2025 11:37 am
Thanks for posting. It looks like this might be either an S351-29 or S390-29 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Measure your old balance's shoe depth to see what matches best. For a stamp option choose 2840 in either case.
Comparison of the S351 and S390 balance shoes.
