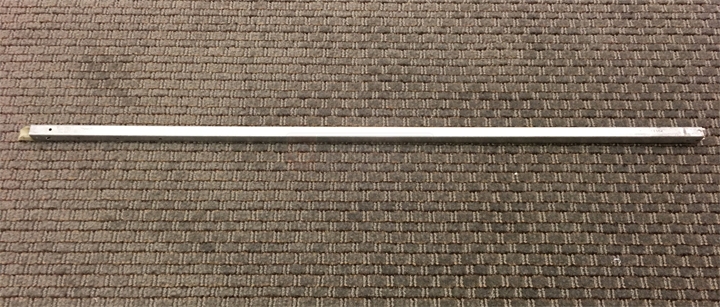

32" Window balance - 3140R

Quick Learner from NYC

Length-32"

Width- 1/2"

Number on the original channel balance was 3140R

32 inch Window balance - 3140R
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Sorry, Jake, but I can't tell what Series balance you need from this photo. It's clear that you need a 32" balance with a 3140 stamp option, but I need to see close-up photos of both ends of the balance to identify it further. Can you send more photos?-
Quick Learner from NYC
Hi Mike,

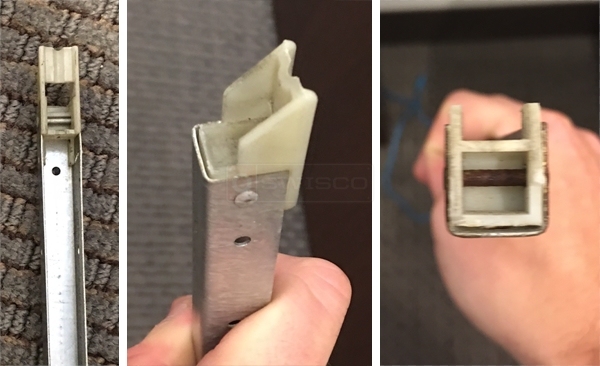

Thanks for getting back. Sure thing, let me know if these photos work.

Best,
Jake
Channel balance
Tom
Tom from SWISCO
SWISCO
Expert
Thank you! The top attachment looks like our 19-002, but the bottom attachment is still unclear. It appears to be broken. I would wager it originally matched either the 15-002 or 15-001. You will need to measure an undamaged version of this balance to confirm the better match. If it's a 15-002, I recommend our Series 351 balance. If it's a 15-001, I recommend our Series 390 instead.
