Window balance & tilt shoe

A home owner from North Fort Myers, Fla. says:

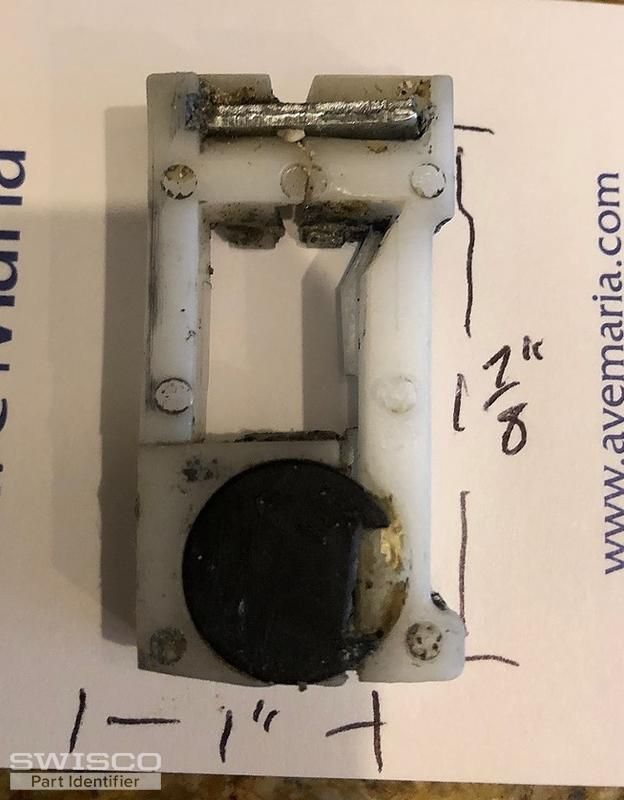

This piece is broken - balance tube is 34" long with a pale green end. Width of shoe is 3/8 & the other is 5/16.

Joe F

Thank you!

Thumbnail of the uploaded file named 6B59770E-E92C-428A-A2EF-FFC9AD4DD8FA.jpeg
Thumbnail of the uploaded file named 0CFC7A92-BD8F-4E6A-9D28-77267156AA35.jpeg
Thumbnail of the uploaded file named FE338505-E6E0-4EEC-861C-27671C817236.jpeg
Thumbnail of the uploaded file named 094EBDC2-EBE4-47F7-B283-8B37188D433B.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi Joe. Check out our 15-045 Pivot Shoe. Go over the dimensions to confirm this matches your old pivot shoe. Is the diameter of your spiral balance's outer tube 3/8"? If so, then see our S900-34. You will need a green tip option, which is for a window sash in the weight range of 14 through 26 lbs. Let me know if you have any other questions.

A home owner from North Fort Myers, Fla. says:

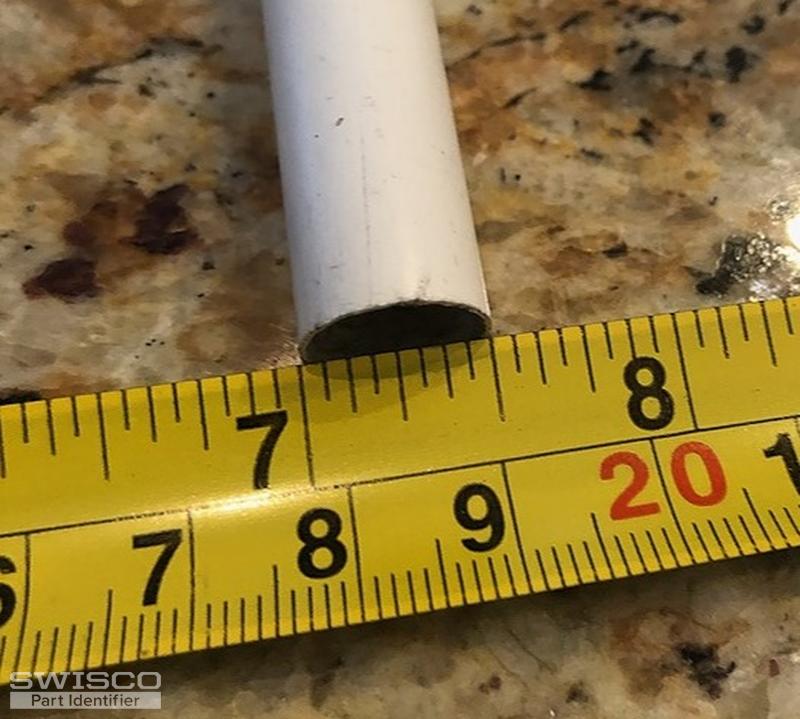

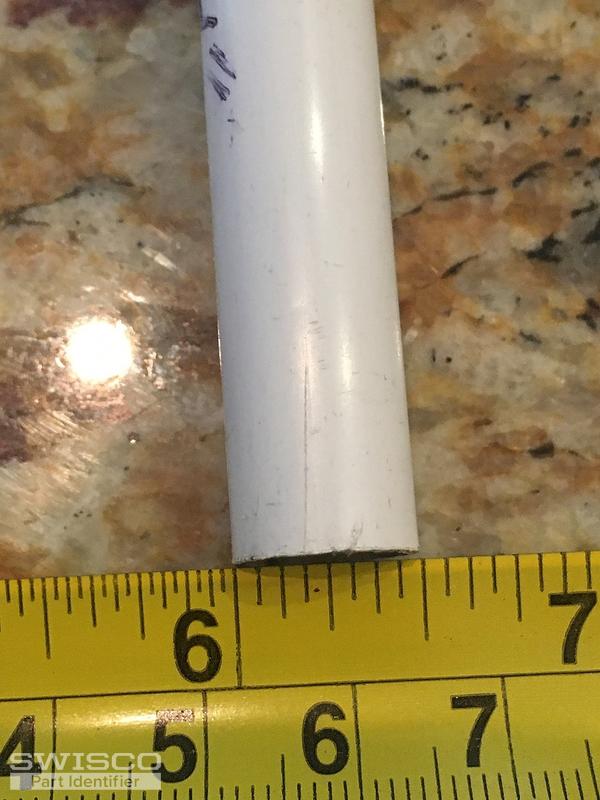

My balance rod is 34 inches long by 1/2 wide see photo the shoe is the right size
Thumbnail of the uploaded file named 2037B2D5-4ED0-4A76-B96C-38A8DFDE3582.jpeg
Thumbnail of the uploaded file named BA2771A8-1E56-4489-9F44-1DBD2A78B513.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Can you double-check the tube diameter further along the balance? It's a bit difficult with these old plastic tubes, but I suspect this is closer to 5/8". Let me know.
