Window balance for 36 pound sash

Home Owner from Springfield MO

May 27, 2025 11:25 am

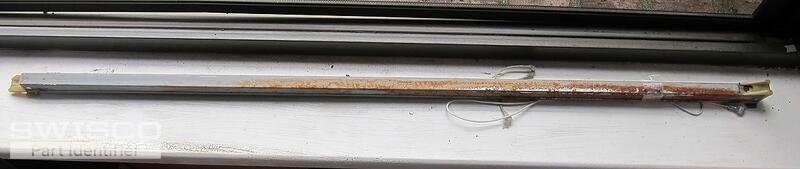

The balance is marked "28 5 DL Caldwell" as shown in one of the photos. It's winged on both ends. Can you help me make sure I order the right part please?

I also weighed the sash using a bathroom scale. It's around 35-36 pounds.

Thanks!

Scott

5 user uploaded images

5 Replies

Home Owner from Springfield MO

May 27, 2025 12:08 pm

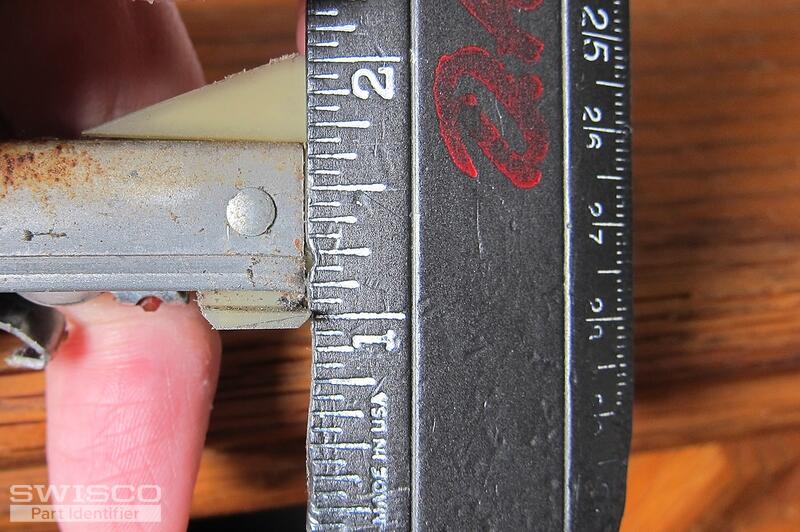

The shoe doesn't measure 1" nor does it seem to hit 1 3/32" either. It's looking around 1 1/16", so I figure I need the 385 since it's over 1". This is what I have in my cart:29" Series 385 Channel BalanceS385-29Option: 2865Is this what I need?

Casey from SWISCO

May 30, 2025 12:26 pm

Hello,

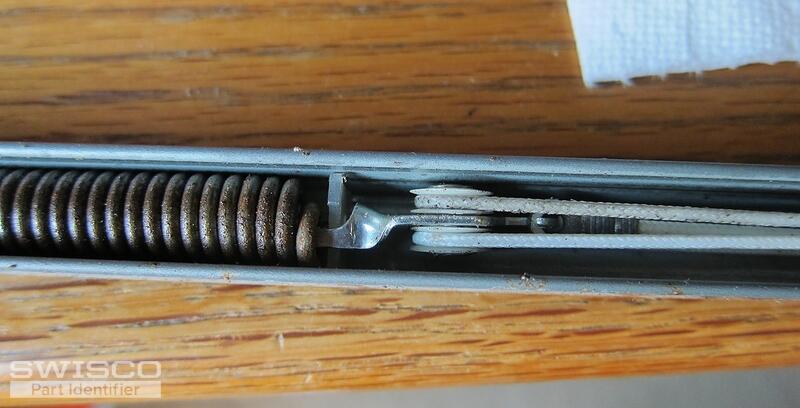

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel of an intact balance, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Quick Learner from Missouri

May 30, 2025 4:33 pm

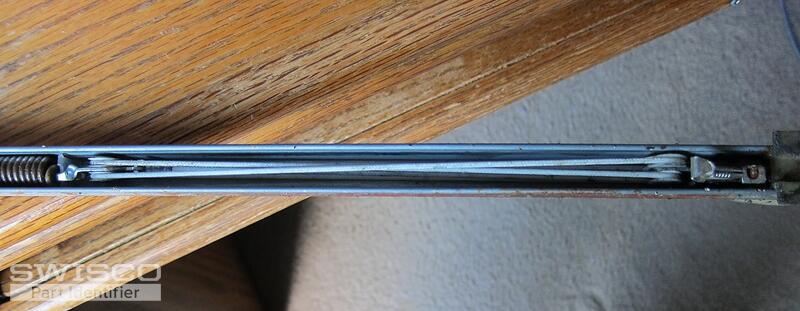

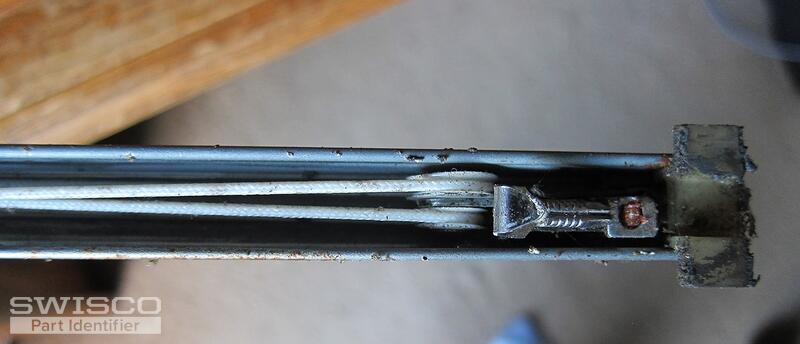

Is this what you need?

3 user uploaded images

Casey from SWISCO

Jun 2, 2025 9:05 am

That's exactly what we needed to see. If the bottom fitting measures over 1" deep, I agree that you'll most likely need the S385-29 since the shoe can wear down a bit over time. You can check a balance from another window to confirm as well.

As for the strength option, your 28 5 stamp would correspond to the 2850 option that supports a sash between 28-32 pounds. If these balances haven't worked properly from the get-go and your sash weight is exact, I agree that you would need 2865 options for a sash between 35-29 pounds.
