Window balance for Alenco window

Question

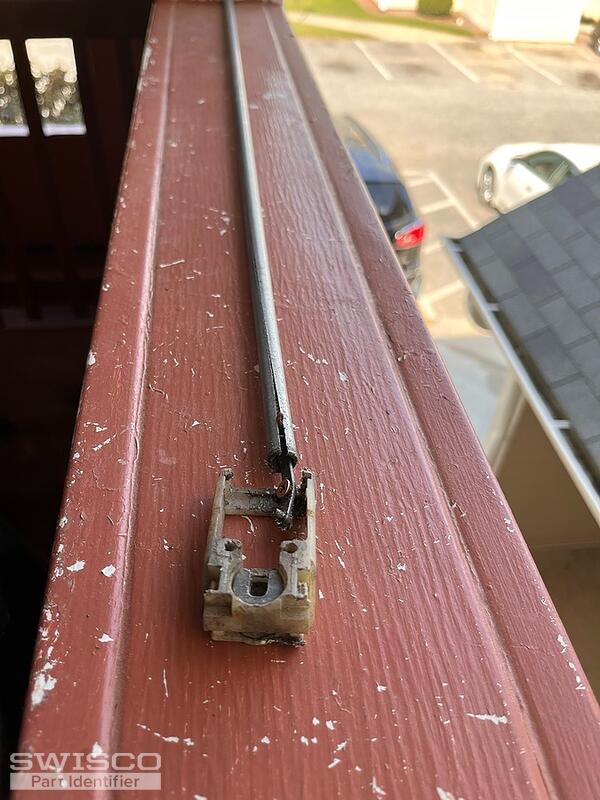

I don't have the exact measurements yet, but I'll be getting them soon.  I'm not sure what type of balance this is. Thank you!

Tom · Accepted Answer

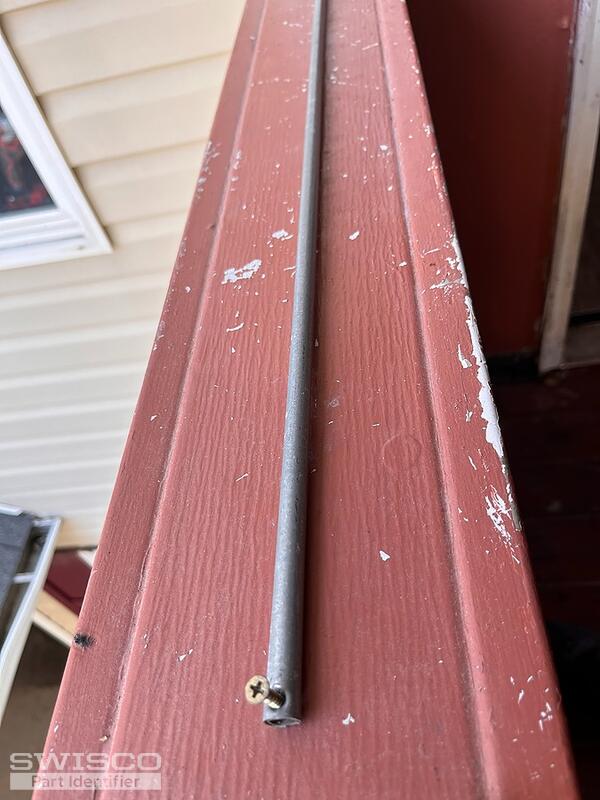

This looks like an older spiral balance for tilt windows. With that in mind, you only have two options to pick from: either the 3/8" diameter Series 900 or the 9/16" diameter Series 600. You just need to measure the diameter of the outer tube to confirm.

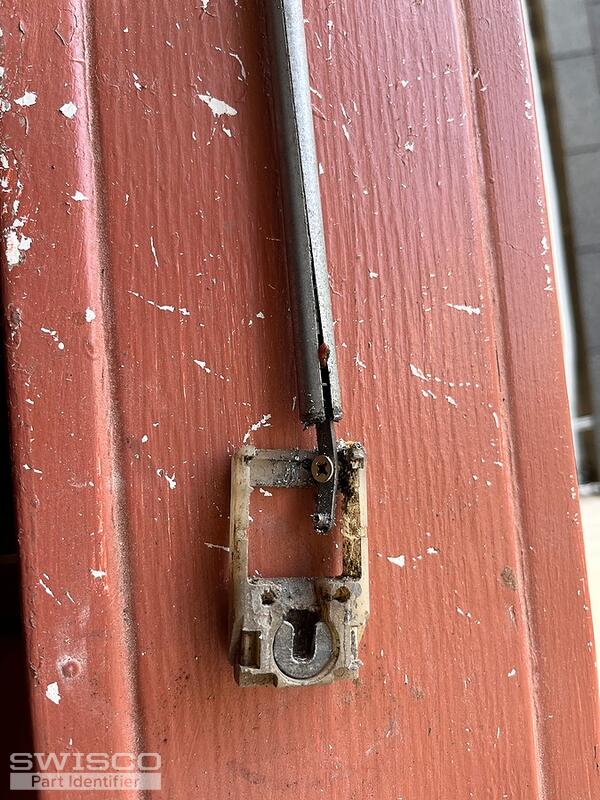

As for the pivot shoe, this is similar in design to our 15-188. I recommend reviewing our dimensions to ensure that the thickness and width align. That will be the determining factor.

Alternate image for 15-188
