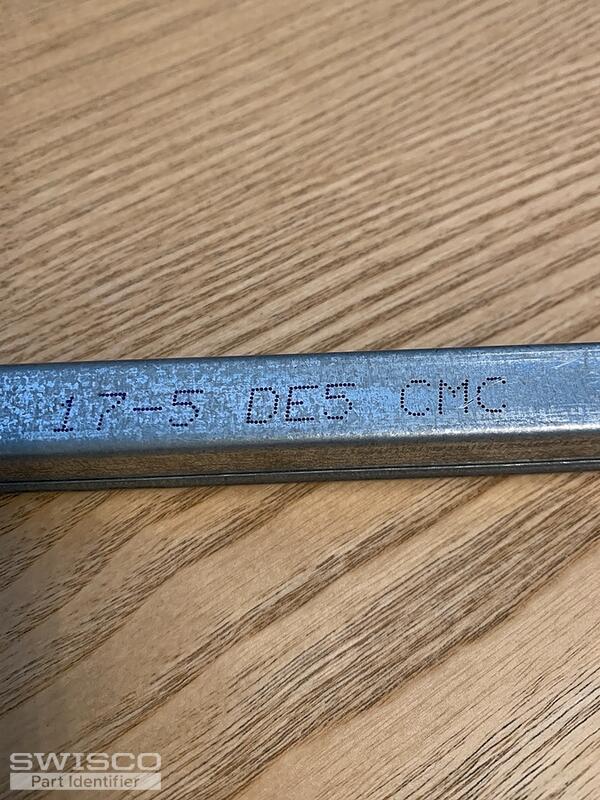

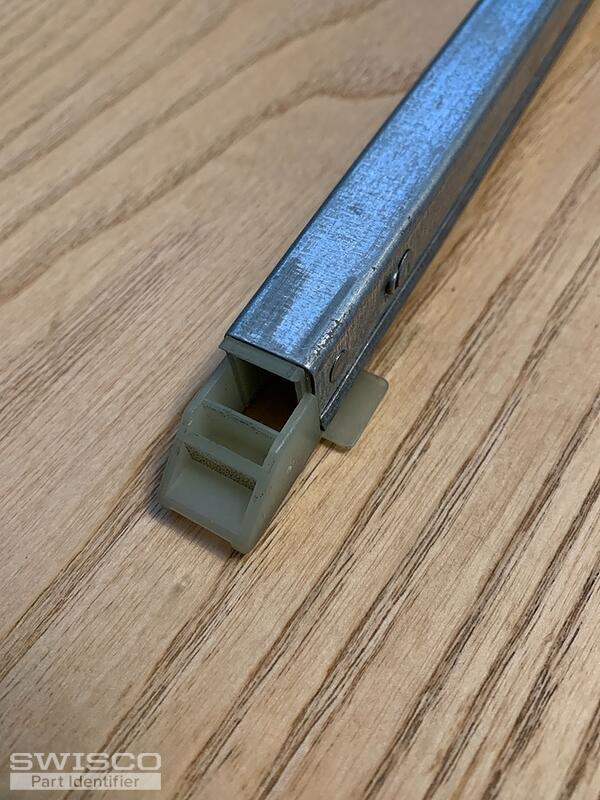

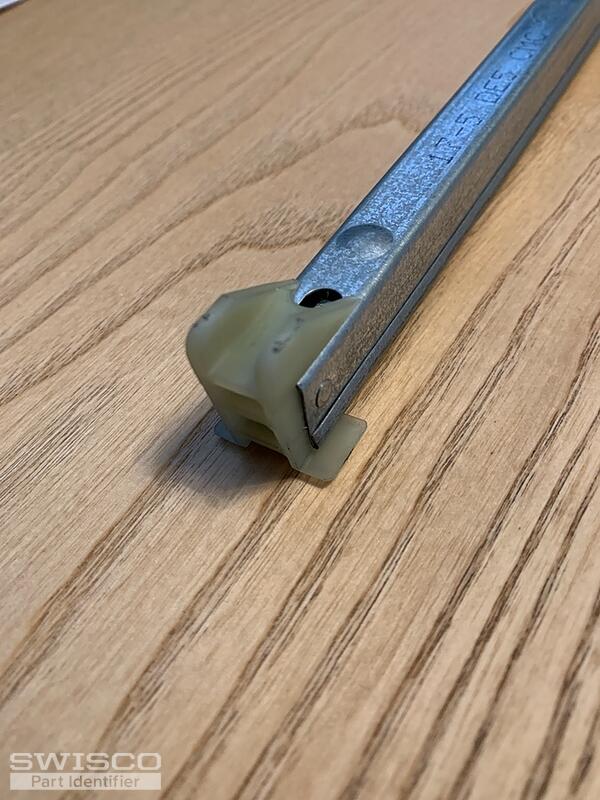

Length of metal portion (excluding plastic end pieces) is 18 inches.
Window is double pane, weighs 20 pounds.
Window balance info

Home Owner from Long Beach, CA
Sep 17, 2021 8:47 pm
5 user uploaded images
4 Replies

Emily from SWISCO
Sep 23, 2021 3:31 pm


Hey there!

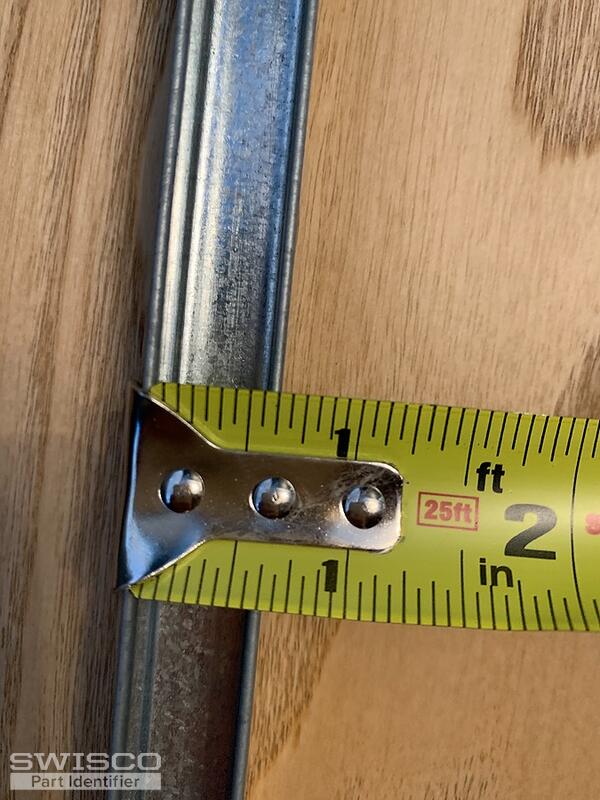

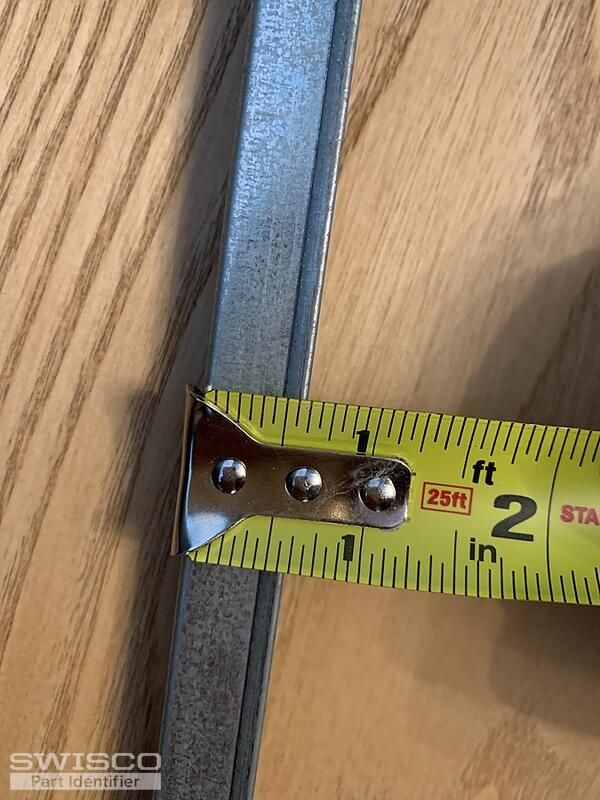

Thank you for your patience during our busy season. With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need a spring strength option of 1750.
If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Long Beach, CA
Sep 25, 2021 11:40 am
Thank you so much for your help!

Emily from SWISCO
Sep 27, 2021 9:51 am


Of course! If you have any future hardware questions, just let us know!
