Window balance k-3440

Quick Learner from Gainesville, Fl.
Jul 4, 2023 9:42 am

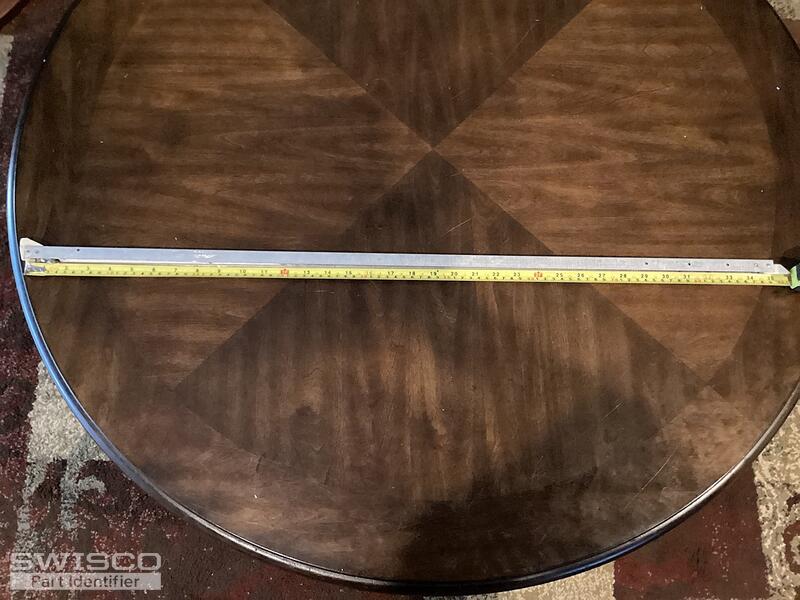

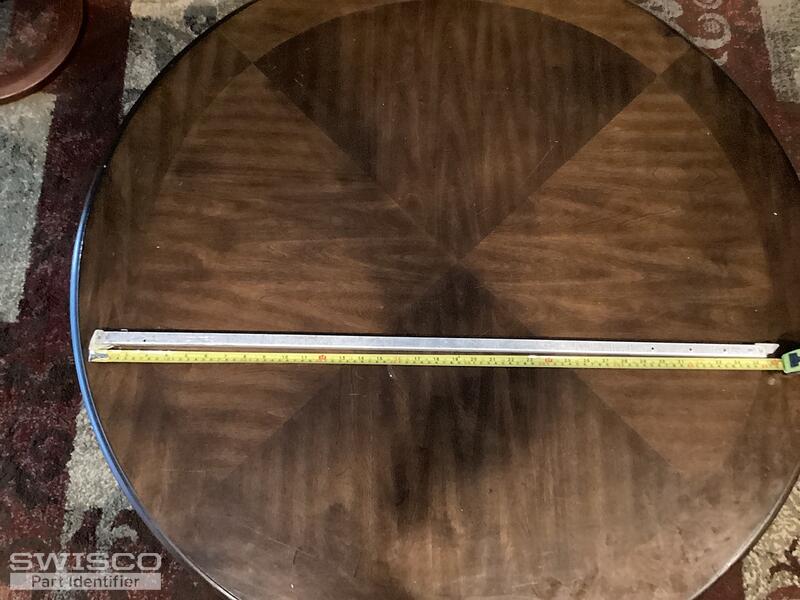

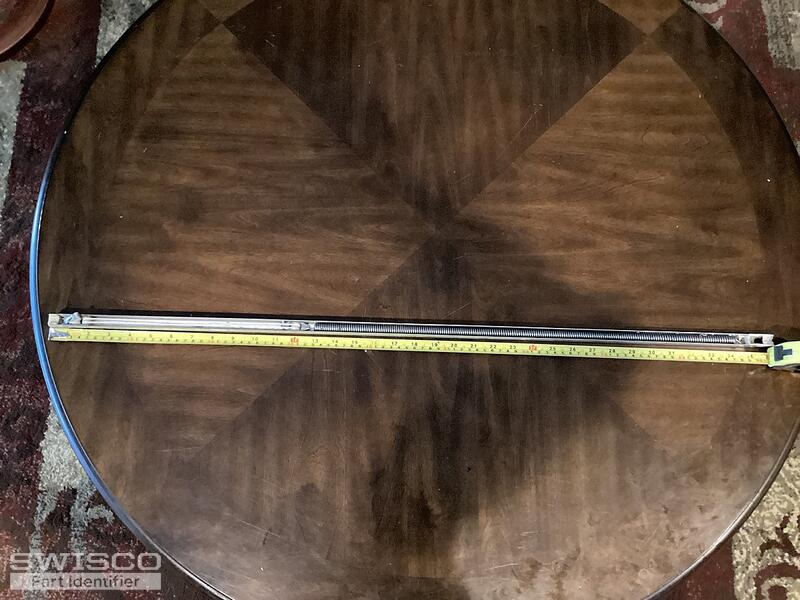

My window balance is 35" in length. It appears to be like the S390 balance as the foot cap is 1 and 1/8" long. Thanks
IMG_2812 IMG_2811 IMG_2810
3 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Jul 5, 2023 1:48 pm
SWISCO
EXPERT

Thanks for reaching out! It does look like you have the S390-35 given the length of your balance and the 1-1/8" shoe measurement. However to confirm, with certainty that this is the balance you need, I suggest double checking the measurement for the bottom shoe. Look over the dimensions from the diagram below.

You'll need to select the 3440 stamp.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
