Window balance kit

A contractor from North Myrtle beach says:
October 15, 2019
Coil balance kit and locks
And is there a trick on replacing them
Thumbnail of the uploaded file named Window 1.jpg
Thumbnail of the uploaded file named window 2.jpg
Thumbnail of the uploaded file named window 3.jpg
Thumbnail of the uploaded file named 5.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 21, 2019

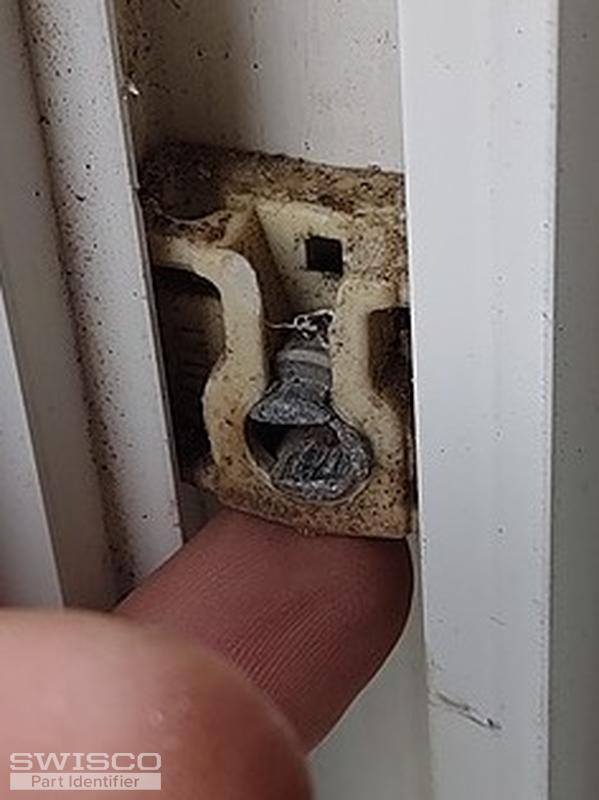

Hi there, thanks for the inquiry. To start with the keeper, look over our 90-237. For the coil balance system, it appears you have the 15-111 pivot shoe which is compatible with the Series 160 coil balance. You'll need to check the tongue of the coil for a stamped number to determine the correct option. If yours doesn't have a number, just weigh the window sash to see which option your window falls into. Let me know if you need any further clarification.
Face Mount Keeper, 1"
Face Mount Keeper, 1"
90-237
$1.67
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
