Window balance klittich

Handy Person from Tucson

Feb 11, 2018 5:09 pm

I need a pair of 1/2 in Channel balances for these Jordan windows

Bay window center
Part ID 24 3 CALDWELL GM

Guest room
Part ID 24 4 CALDWELL

7 Replies

Handy Person from Tucson

Feb 13, 2018 9:27 am

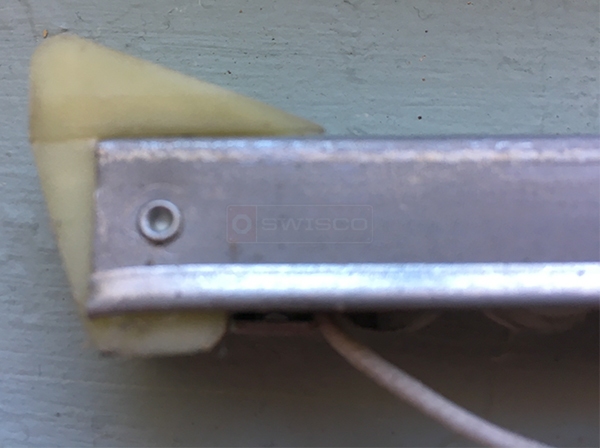

Picture of the balance ends.

User submitted photos of a window balance.

Tom from SWISCO

Feb 15, 2018 9:48 am

Only one of your images came through to us successfully. Based on this, I can't tell what type of balance you need, but it seems to be one of our half-inch channel balances. Do you see your balance among our options?

Handy Person from Tucson

Feb 17, 2018 11:19 am

Sorry, I looked through the 1/2 in channel balances and could not narrow down to a single choice.

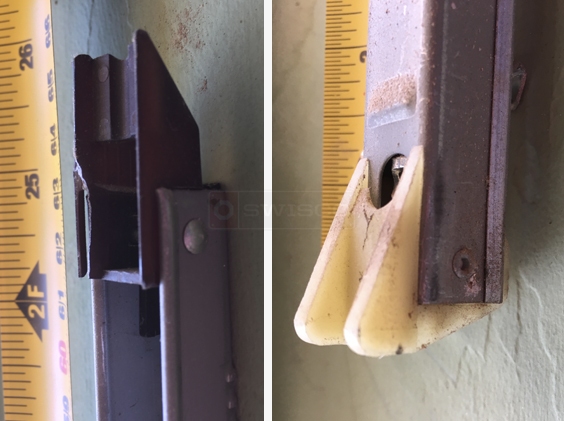

I have attached the missing picture.

Handy Person from Tucson

Feb 18, 2018 6:35 pm

After more research, I found that I need either a s351 or a s390. The s351 shoe measures 1

Handy Person from Tucson

Feb 19, 2018 10:53 am

Last post was truncated.

The question is which balance type - s351 or s390. My shoe measures 1

Tom from SWISCO

Feb 20, 2018 3:05 pm

I'm afraid your post got cut off again. I'm not sure what your shoe measures. That said, the Series 351 comes with a 15-002, which is 1" deep, and the Series 390 comes with the 15-001, which is 1-1/8" deep. Whichever one best matches yours should be the one to go with. When you measure, make sure to account for wear. In other words, keep in mind the depth may be a little less than it once may have been.
