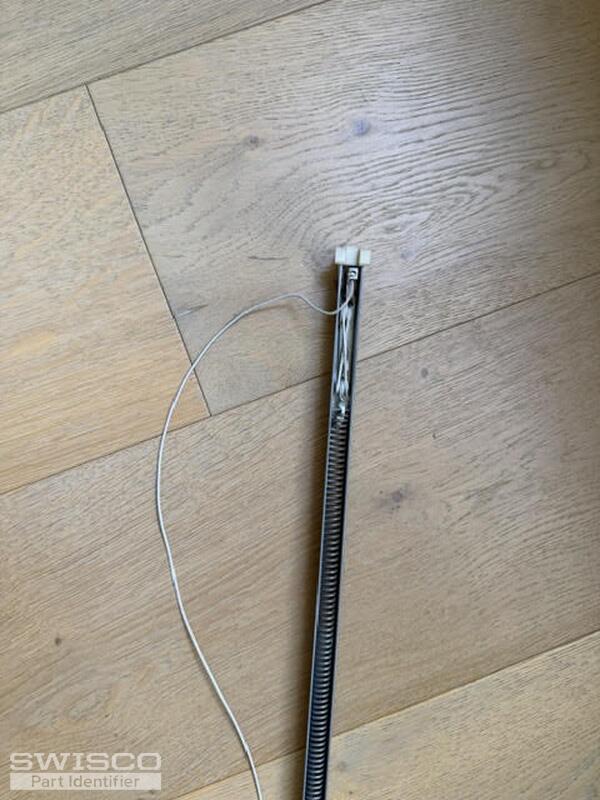

I am looking to confirm if I am ordering the correct replacement window balance for my window. Attached are some photos of the balance and details of the window for your reference.
Weight of the window is 21.4 lbs
Length of metal portion of balance is 32 inches
Heel-to-toe bottom shoe depth is 1 3/32in.
The writing on the balance says: 31 3 FS Caldwell
Window balance part confirmation
Quick Learner
Aug 25, 2026 8:44 am
4 user uploaded images
2 Replies
Casey from SWISCO
Aug 28, 2026 11:54 am
Hello,
Your photos resemble the S385-32 (3130) channel balance. Take a look and compare the specifications to your assembly. Thanks for posting!
How to measure the length of the Series 385 channel balance.
Close up view of the S385 balance shoe.
