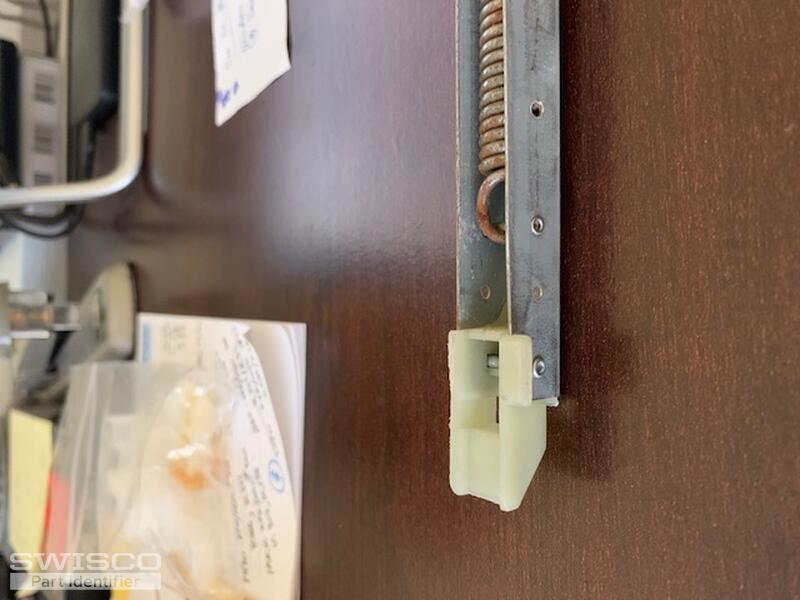

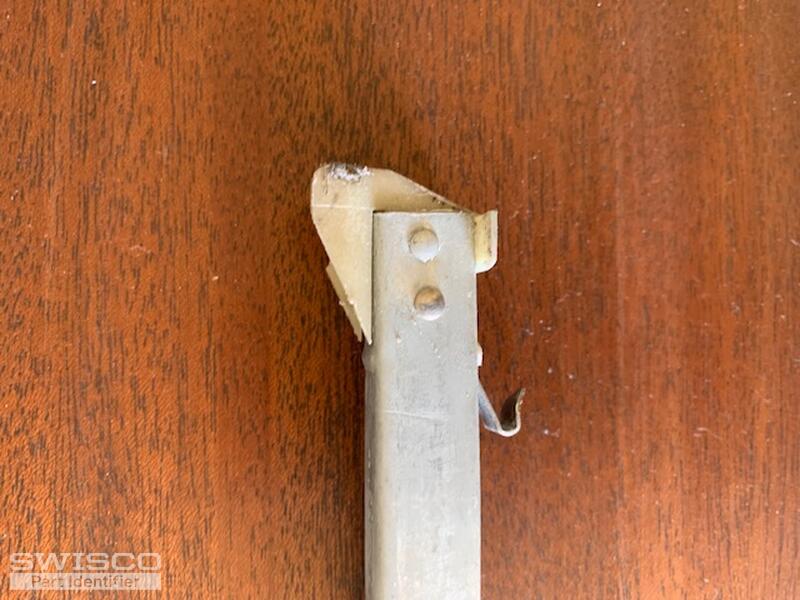

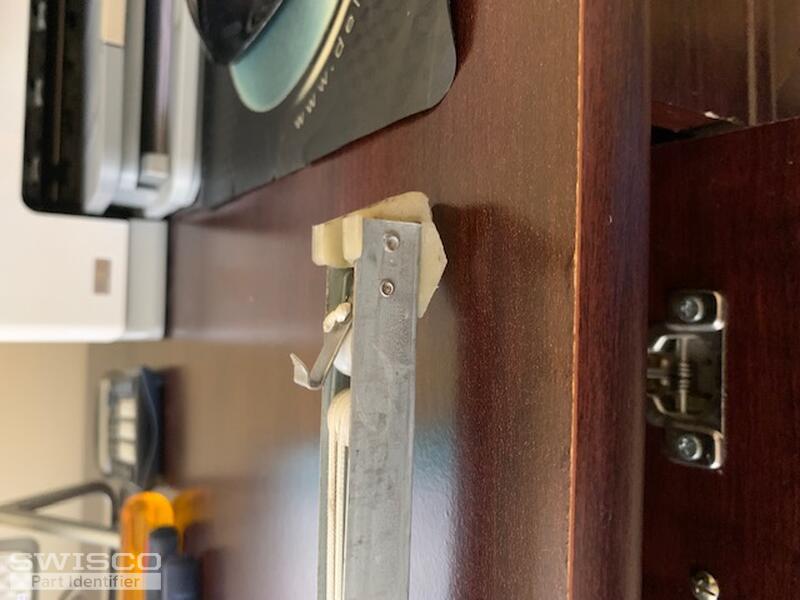

I believe my windows were made by Kinco. House built in 2003. Actual metal length of balance is 30".

5 user uploaded images

4 Replies

Casey from SWISCO

Jan 5, 2022 11:52 am

Hello,

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2950 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Mt Pleasant, SC

Jan 5, 2022 2:25 pm

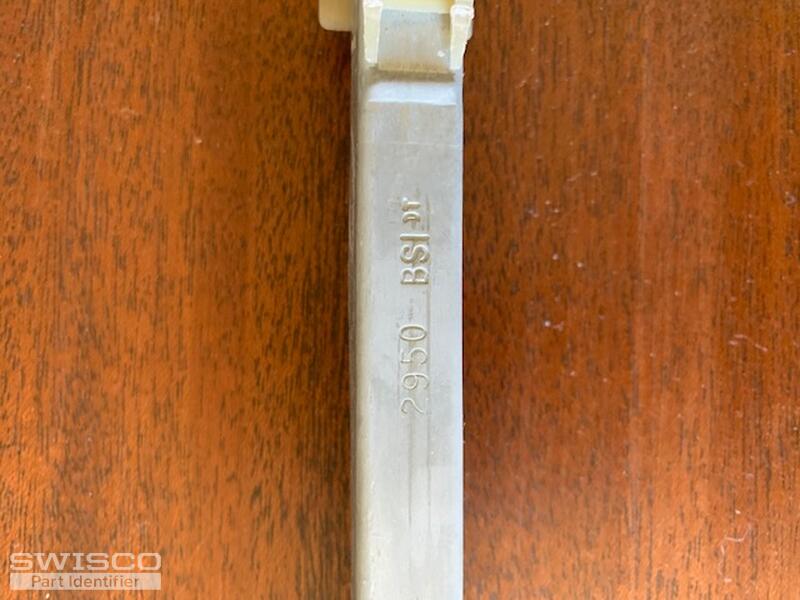

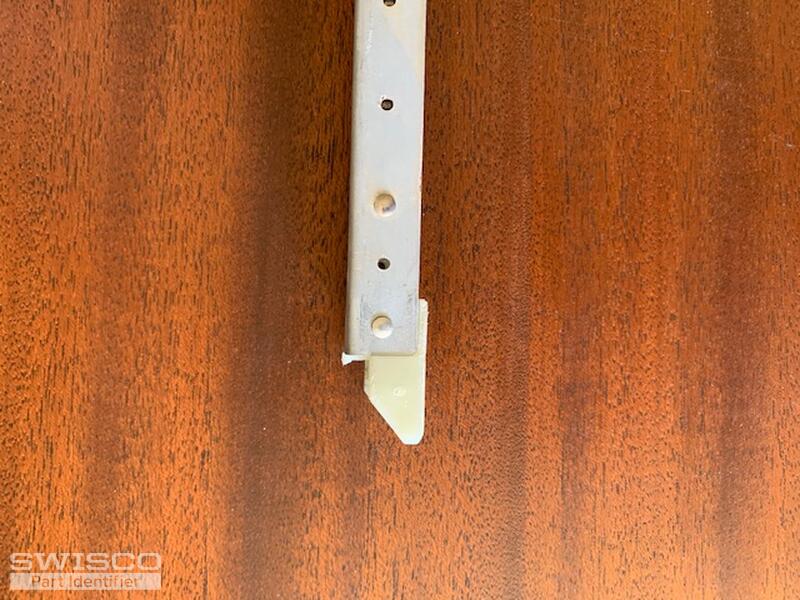

Bottom plastic guide measures 1.075" which is close to the 1 3/32". So I assume the S385 is the right series and my balance has a stamp of 2950 so would that be what I need to order?

Ken

Casey from SWISCO

Jan 5, 2022 2:50 pm

In that case, see the S385-30 channel balance with a 2950 strength option.
