Window balance replacement

A home owner from Leominster, Ma says:

August 12, 2019

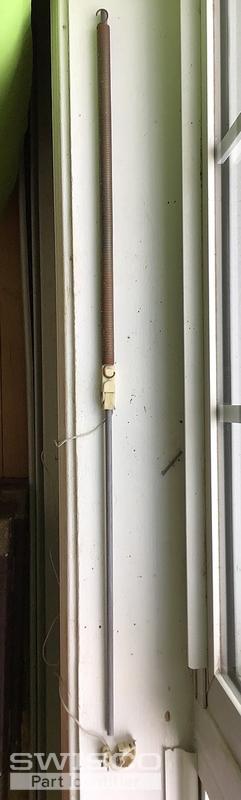

I have several windows that require balance replacement and I can't find this part. Is it possible to use a series 775 as a replacement? I would like to replace both top and bottom sash balances. One set the rod measures 27 1/4 inches one the other 25 1/4 inches, shoe size is 1 1/4 inch.The channel they sit in is just over 1/2 inch deep and 1 1/4 inches wide.

Thumbnail of the uploaded file named 17A6B8F8-1C2F-42F1-88D6-ABDDD04272FE.jpeg

Thumbnail of the uploaded file named A7D1A76F-83E3-4516-A351-33058E8C41E6.jpeg

Thumbnail of the uploaded file named 1E7B28D3-EE0A-484C-94C0-C90F4EAED9EA.jpeg

Thumbnail of the uploaded file named 159B5218-2B56-4F02-A794-50F65174EB29.jpeg

Bob from SWISCO responded:

August 15, 2019

Thanks for writing in. Yes, the Series 775 can replace these old balances. Double-check your measurements, as this should be a 1:1 replacement. If the rods are 25" and 27" respectively, then you'll need the S775-25 and S775-27. You will need to obtain the exact weight of each window sash to know what stamp options to select, along with the 1-1/4" shoe.

25" Series 775 Balance

S775-25

$21.81

27" Series 775 Balance

S775-27

$21.91

How to install a S775 balance

GUIDE

READ >
