Window balance replacement

Quick Learner from Port Saint Lucie Fl

Jul 19, 2023 7:17 pm

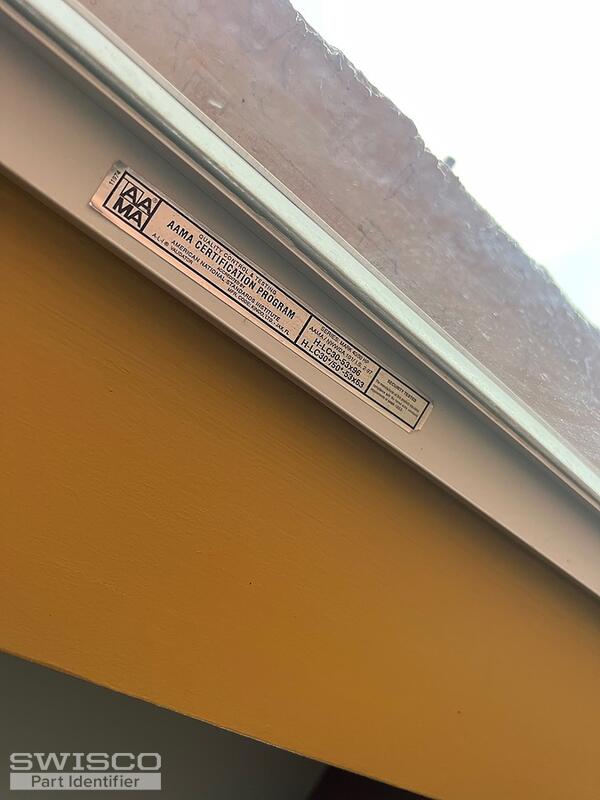

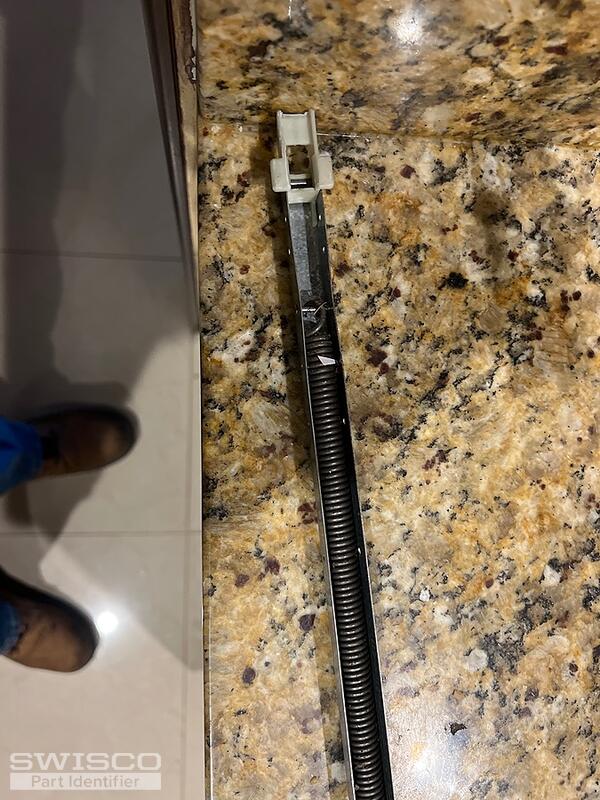

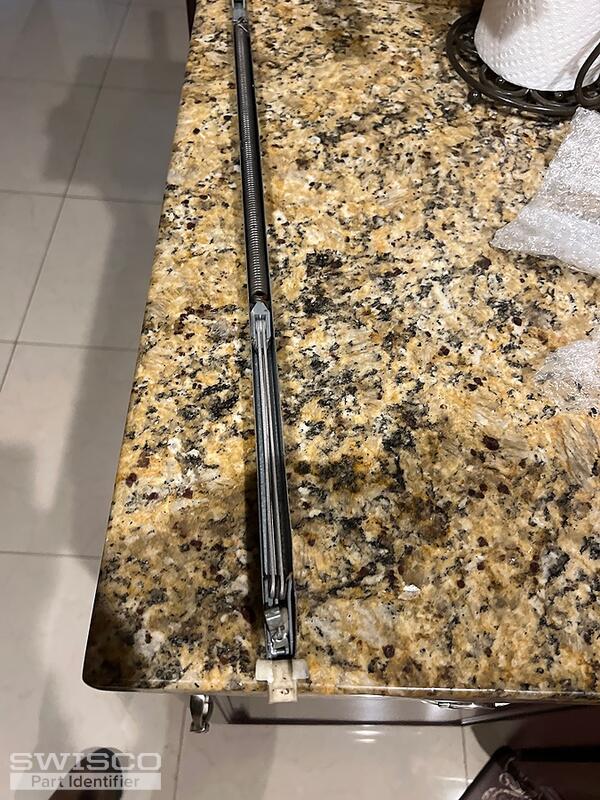

I need two balances like this ones can you tell me which ones I should get?

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Jul 20, 2023 12:09 pm

SWISCO

EXPERT

Hello,

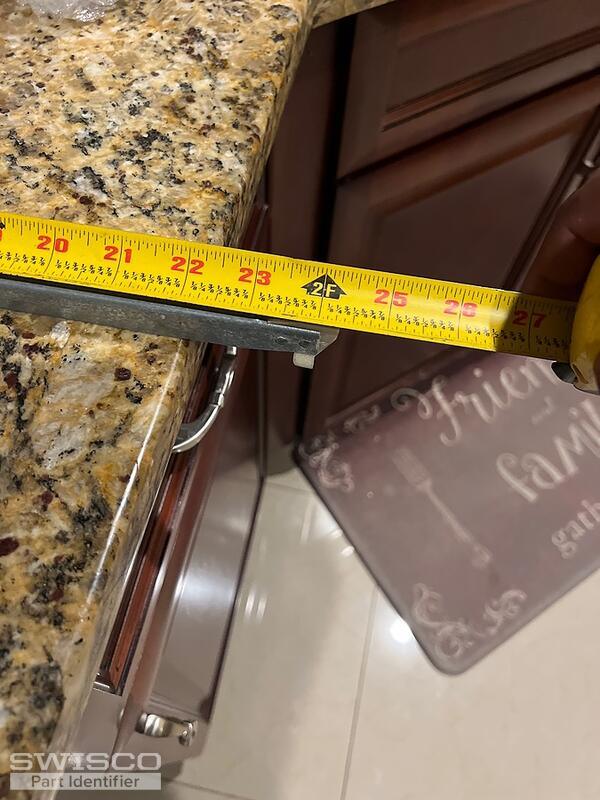

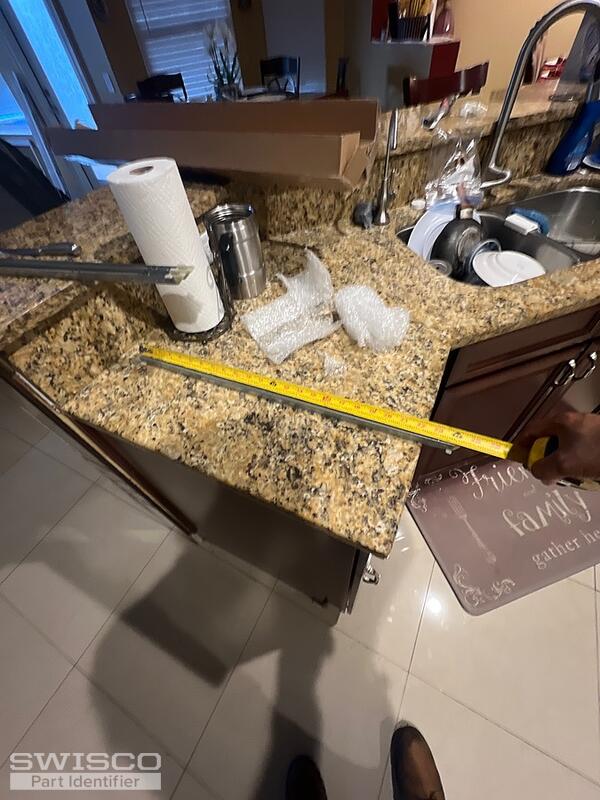

With this combination of attachments, you could have either the S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to locate the numbers stamped on your metal channel to choose the corresponding spring strength option for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.
