Window balance replacement

Quick Learner from USA

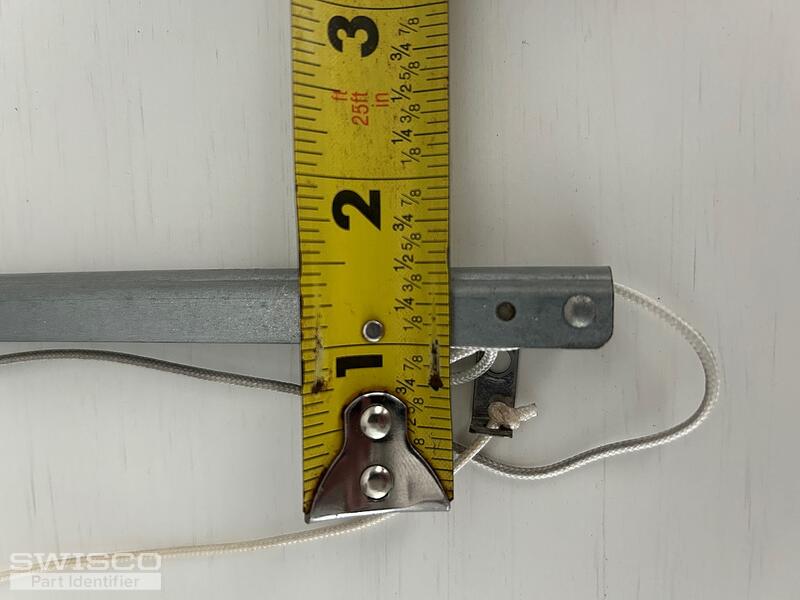

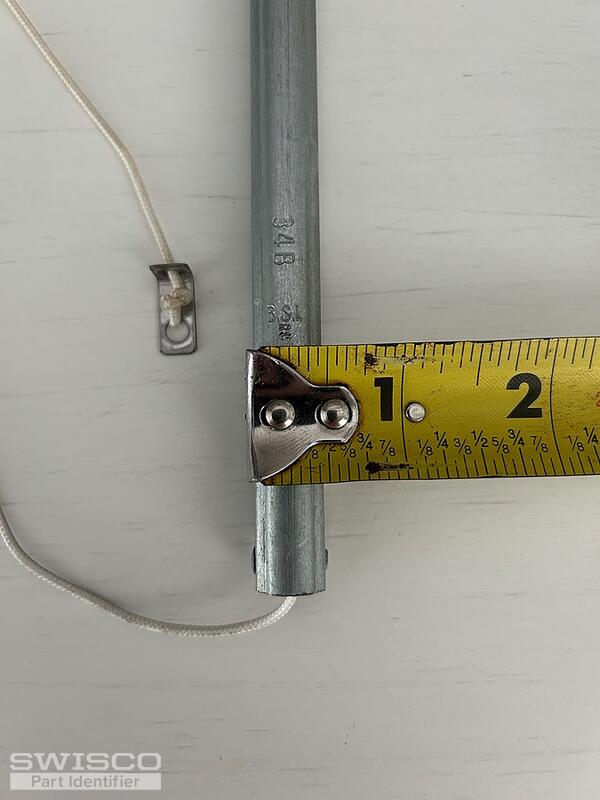

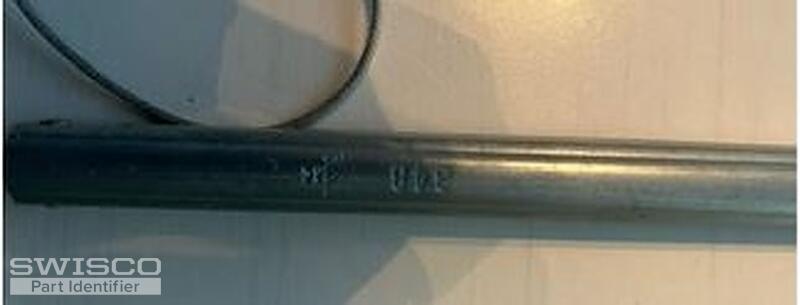

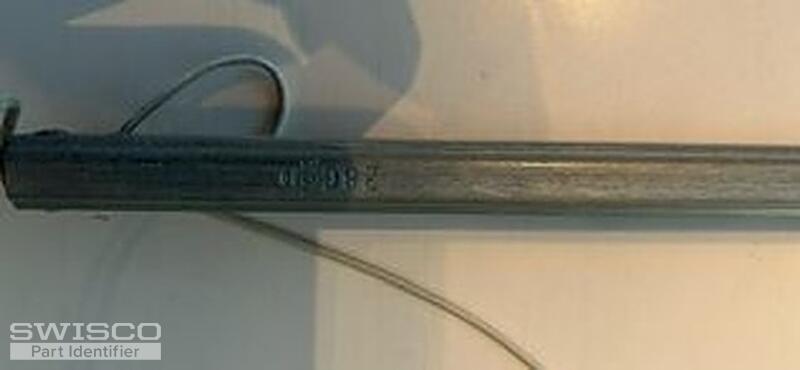

I'm looking for 28C and 34B ribbed balance 1/2 in by 1/2 in with 1 in wide shoe (#15-194) and top screw clip

Does it matter if the metal is ribbed or plain?
Thanks


Yes both are ribbed and from tilt window
I'll need 4 of each (8 total) if available
5 user uploaded images
6 Replies
Quick Learner from USA
2 more photos.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

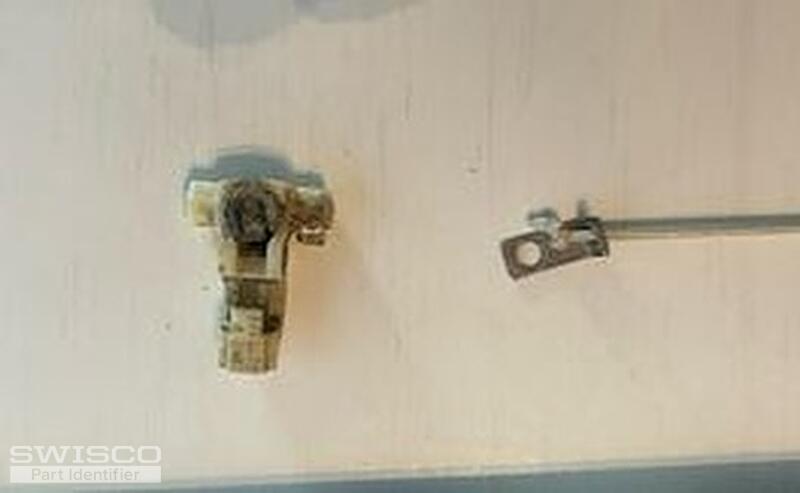

Thank you for reaching out to us. Yes, it indeed matters if your old channel is ribbed. What you have here is a "skinny" ribbed balance that uses the 15-230 T-lock shoe, not the 15-194. This balance configuration isn't a part of our stock catalog but we can still help via custom order. However, your metal channel should be 3/8" wide. Can you double-check that for us?

Quick Learner from USA
Thanks
It's close
I think 3/8 will work
2 user uploaded images
Quick Learner from USA

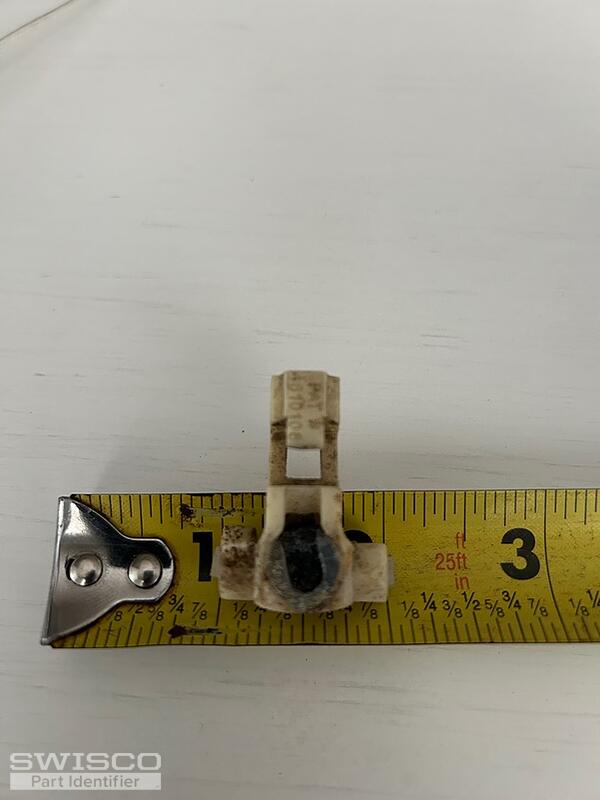

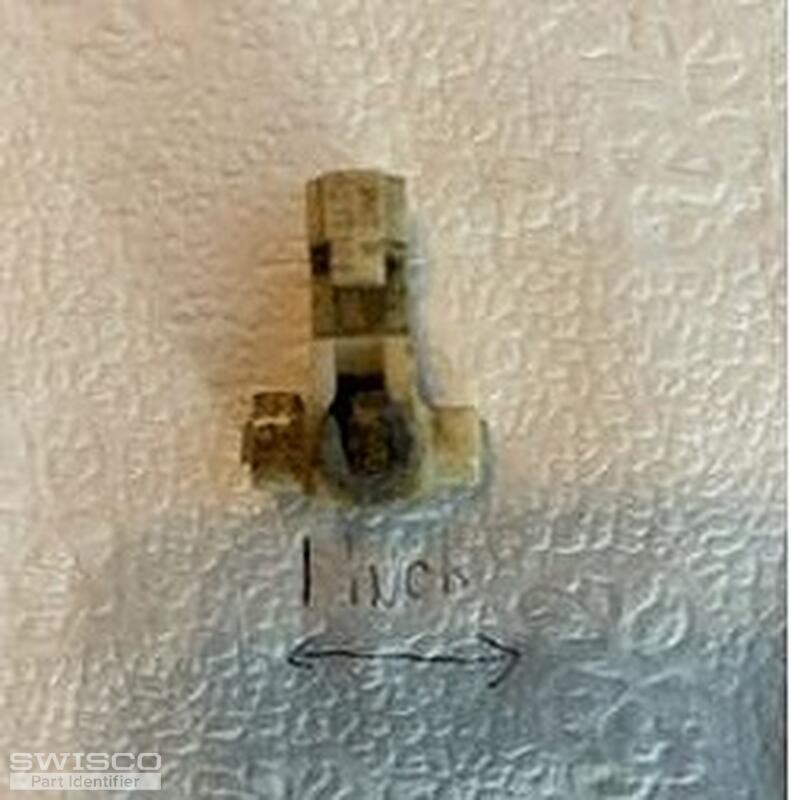

1 inch shoe
Closed in back
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Sounds good! I will email you a purchase link and price quote for (4) balances with the 28C stamp and (4) with the 34B stamp that you can use to place an order on our website. Please note that there is a 5-6 week lead time and it may take a bit longer due to the holidays.

Please let us know if you have any questions!
