Window balance replacement

Quick Learner

Jul 7, 2025 3:46 pm

I have two windows that won't stay up and it appears the balance coil broke( the plastic piece). Believe I would need four sets (one on each side of the window). Seeing if you guys could perhaps help me figure out which parts I need

2 user uploaded images

6 Replies

Casey from SWISCO

Jul 9, 2025 11:29 am

Hello,

Your photos resemble the 15-180 Pivot Shoe, which uses the Series 190 Coil Balance springs sold separately. You'll need to check the original coils for stamps to choose the corresponding strength options. Take a look and let us know if you have any other questions. Thanks for posting!

Alternate image for 15-180

Home Owner

Jul 14, 2025 2:02 pm

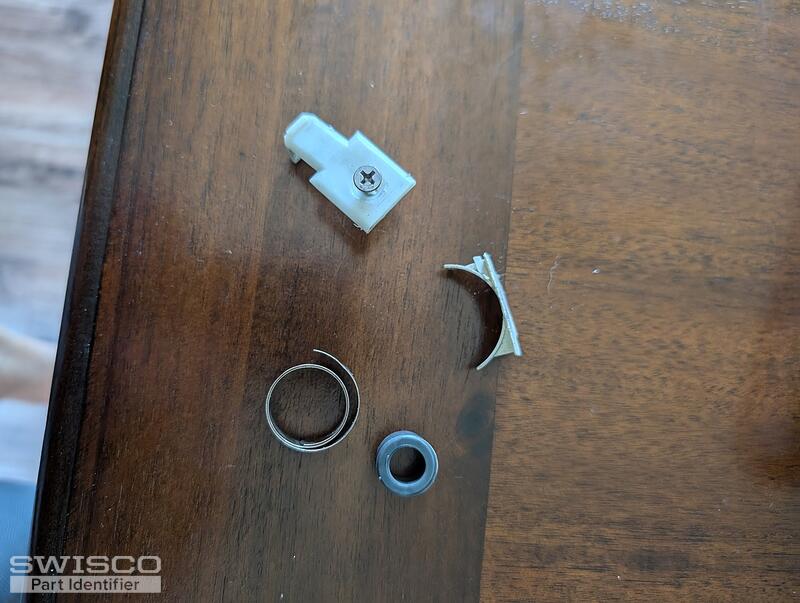

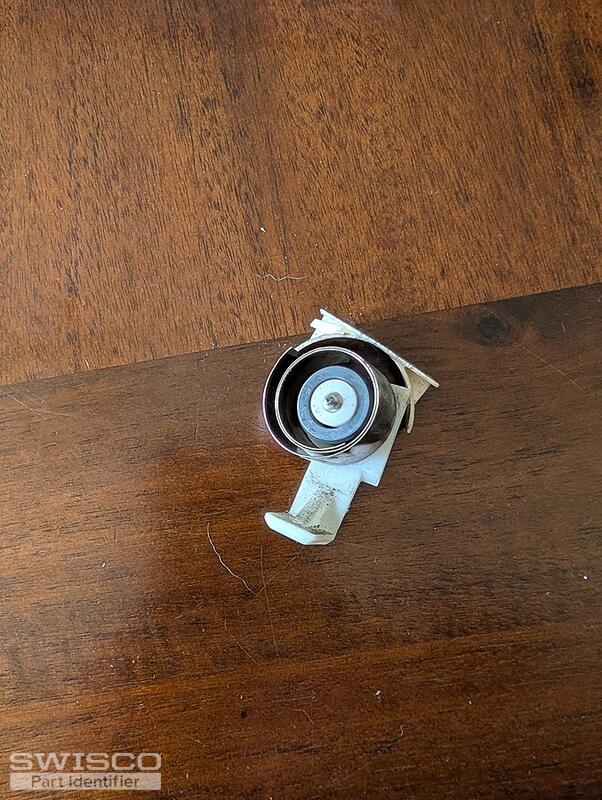

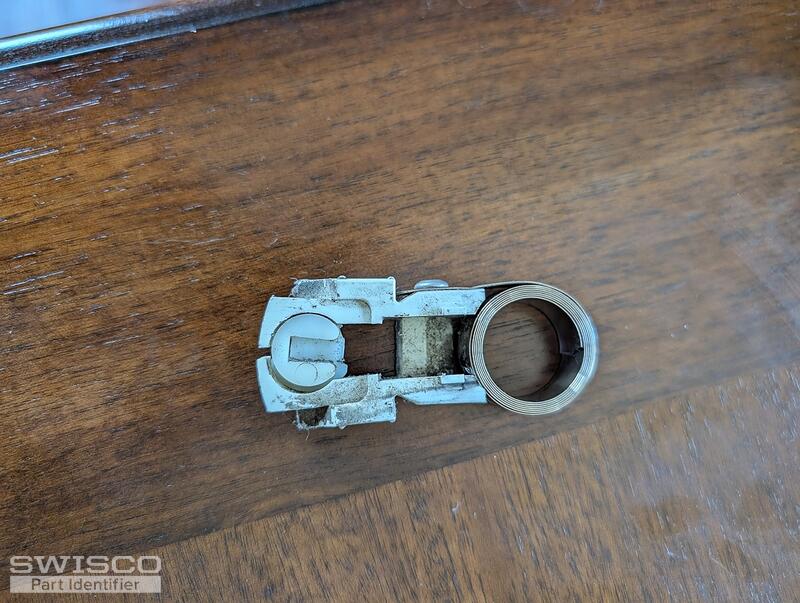

That looks right with the pivot shoe. The coil spring I attached a photo, it has a 9 on it with the end pointing away from you like the picture I attached. But if end is pointing towards mean it is a 6. So not sure which coil spring I need. Also do I need new coil spring ( they look intact, only the pivot shoe has cracked?

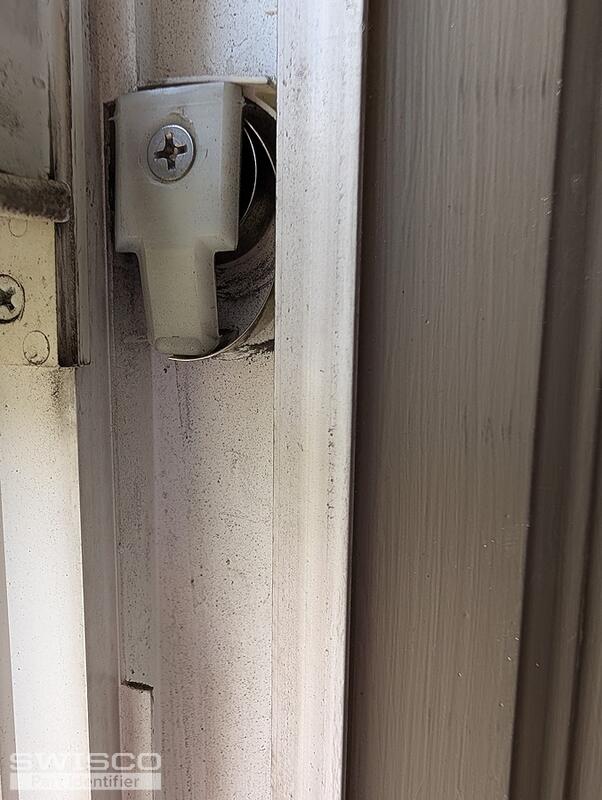

The other pictures show the top part or perhaps stopper from video I watched. Does that need replaced or is that ok, any advice helps

5 user uploaded images

Casey from SWISCO

Jul 14, 2025 2:38 pm

It looks like your coil spring is also broken in half, so they'll need to be replaced as well. Since it's unclear if the stamp is a 6 or 9, I'd recommend weighing the sash. We can use the weight to calculate the strength options needed for your replacements.

If they're still in good condition, you can reuse the 15-186 clip and 15-182 bushing.

Home Owner

Jul 14, 2025 4:06 pm

Thanks Casey, they window weighs 19 pounds

Casey from SWISCO

Jul 15, 2025 8:07 am

In that case, I'd suggest using one S190-940 coil on each side.
