Window balance replacement help

Question

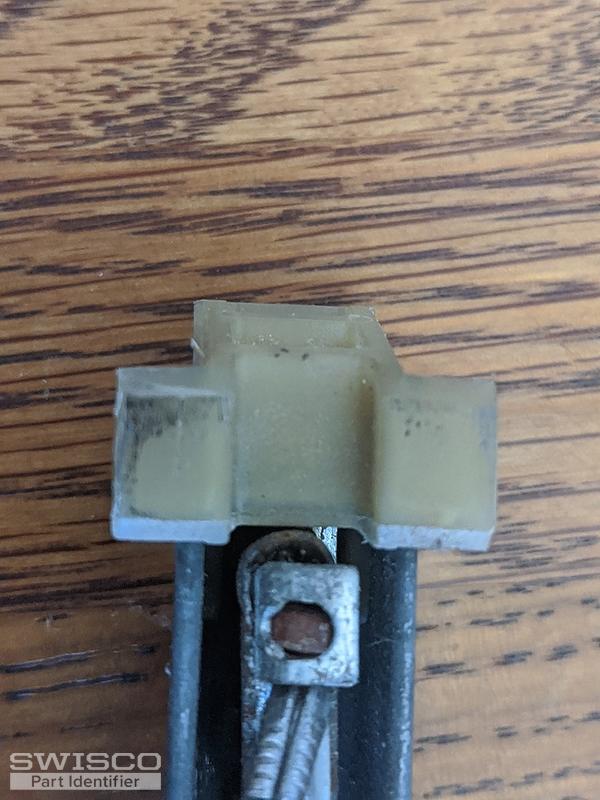

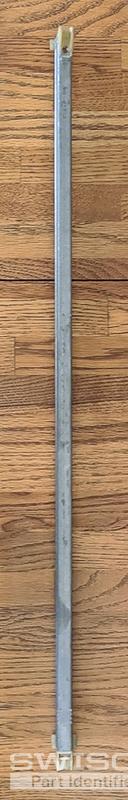

The number on the part is 26 4 FJ. They are 27" long and 1/2" deep. The sash ways 17.5 pounds. Can you help me figure out if this is a 380 or 385 and how much weight?

Casey · Accepted Answer

Hello,

I agree that with ith this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2640 spring strength option for your replacement balances based on your (26 4) stamp.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
