Window balance replacements

Quick Learner from Gilbert, AZ

Feb 6, 2025 2:07 pm

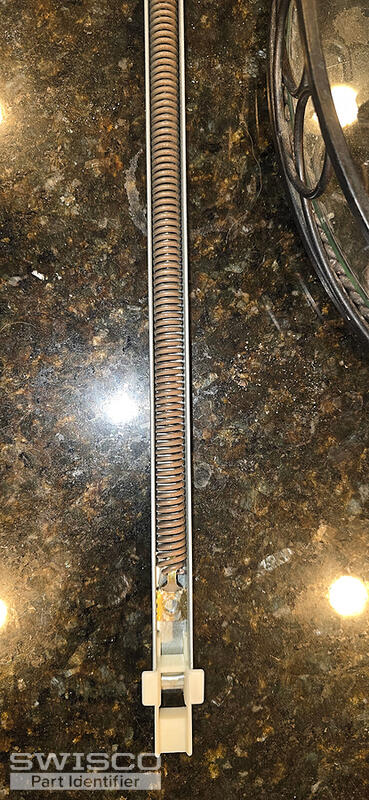

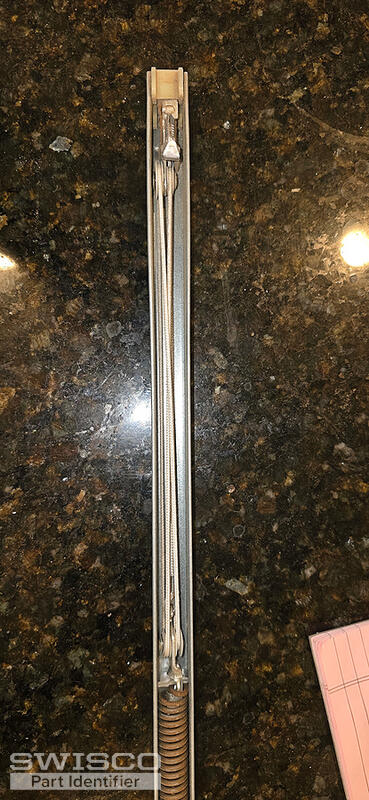

I have two windows that both need to be repaired (new balances needed). Attached are the relevant photos that I believe you need. If there is anything else needed to correctly match these up please let me know.
Thanks,Corey

5 user uploaded images

4 Replies

Lauren from SWISCO

Feb 6, 2025 3:12 pm

Hello, thank you for posting,

We can assist with new balances, but to confirm the series needed, are you able to provide a picture of the inside of the metal channel where we can view the connection point between the spring and pulley system? From there we can confirm the correct fit for your window. Thank you!

Quick Learner from Gilbert, AZ

Feb 6, 2025 3:55 pm

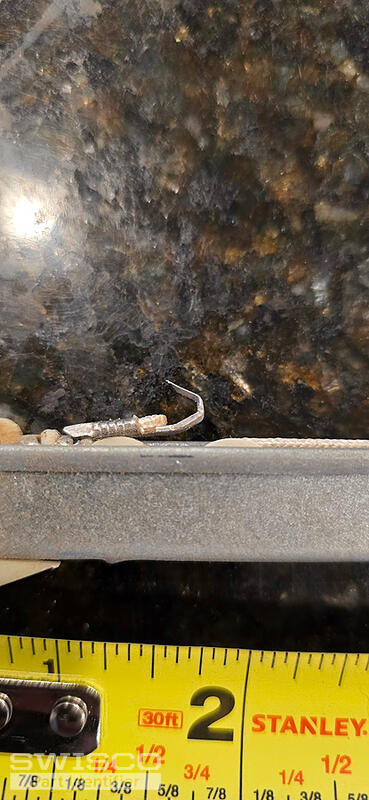

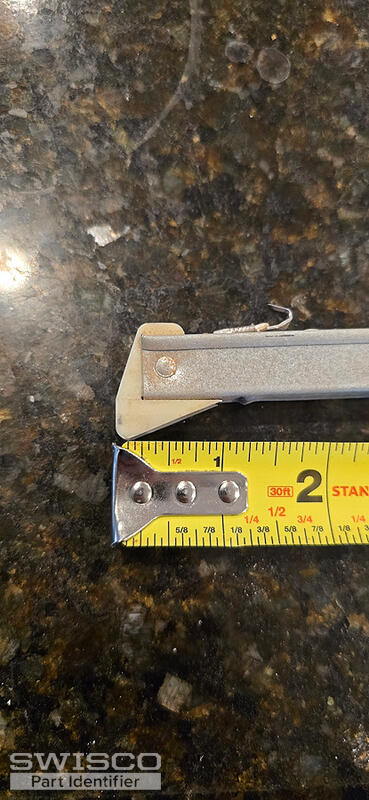

Is this what you are asking for.......

2 user uploaded images

Lauren from SWISCO

Feb 7, 2025 8:01 am

Perfect, thank you,

Please see the S395-29 channel balance. The length of the metal channel excluding the nylon attachments should measure 29 inches long and you will need a 2830 stamp option. Let us know if you have any additional questions!
