Window balance, shoe and pivot

A home owner from Fl says:
May 15, 2020

Please quote 6 complete balance, 2 shoes and 1 pivot

Regards,

Sikandar

Thumbnail of the uploaded file named 5AB06CCF-12A2-474F-8C43-C925DB35B090.jpeg
Thumbnail of the uploaded file named 25908E30-BA29-4A6A-9DC9-3B9BDEB50087.jpeg
Thumbnail of the uploaded file named 3030DC07-7837-4981-A24E-66DFC92FEB61.jpeg

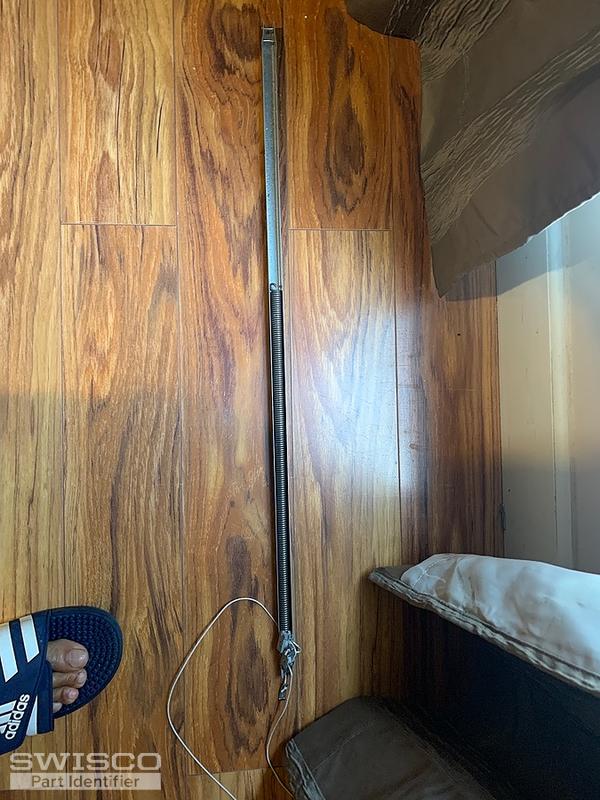

Thumbnail of the uploaded file named C381B6CC-C13C-4589-81B5-7A986AED6C84.jpeg

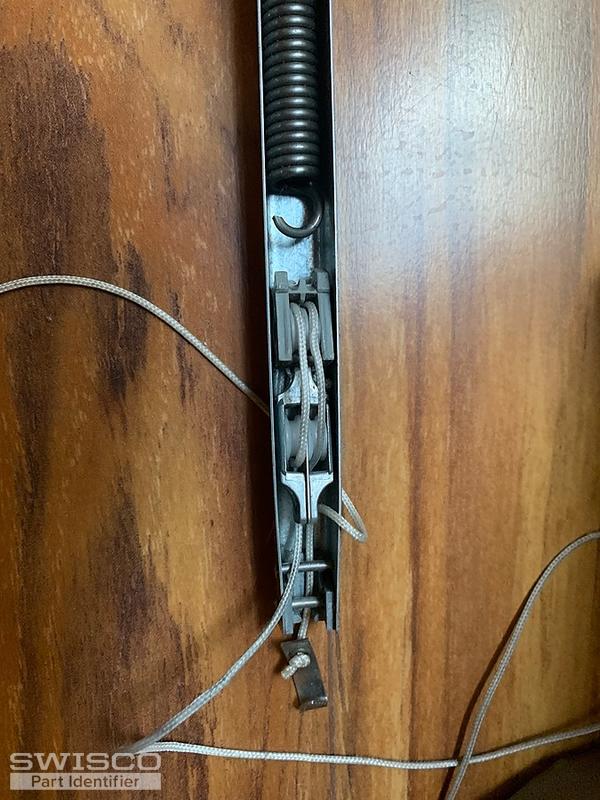

Thumbnail of the uploaded file named C5485062-59AF-4020-842D-476BF62F65A4.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 19, 2020

This balance is not a standard setup and will have to be custom made. Before I go any further, can you tell me the exact weight of the sash that it supports? I'd also like to see a closer picture of the top end, where those rivets are.

The pivot shoe is a match for our 15-105 but the pivot bar is discontinued and no longer made. You may be able to use the 26-042 as a substitute, but I cannot guarantee that it will work.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-105
$6.45
Pivot Bar, 3"
Pivot Bar, 3"
26-042
$2.75
