Window balance single hung.

Handy Person from Arcata, CA
Have two windows same size.  Need four of same size.
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

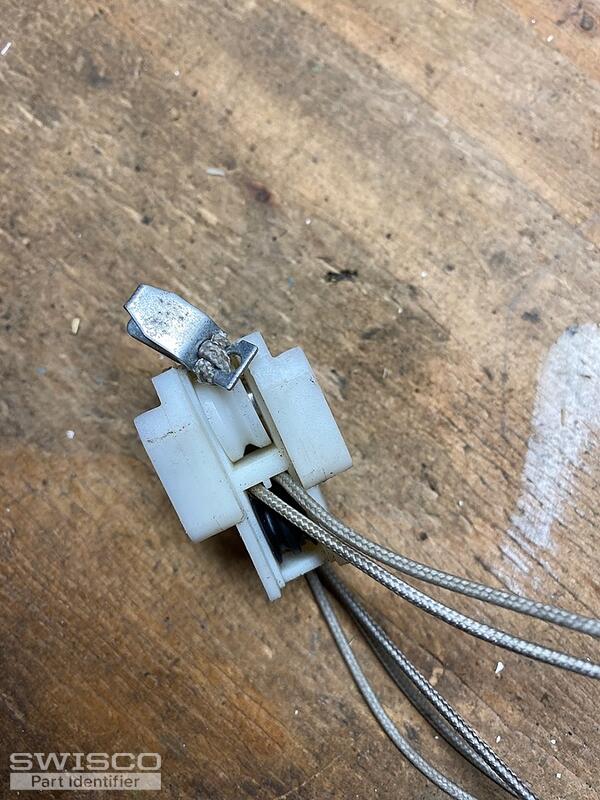

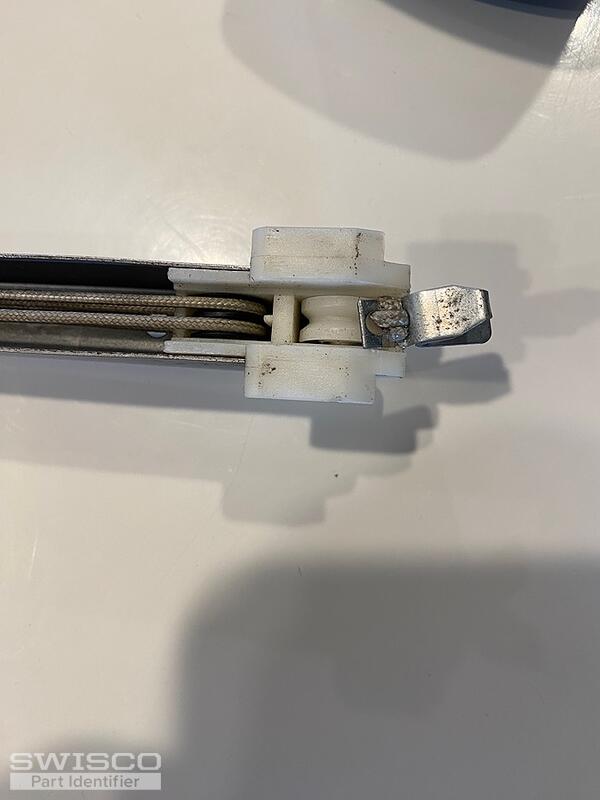

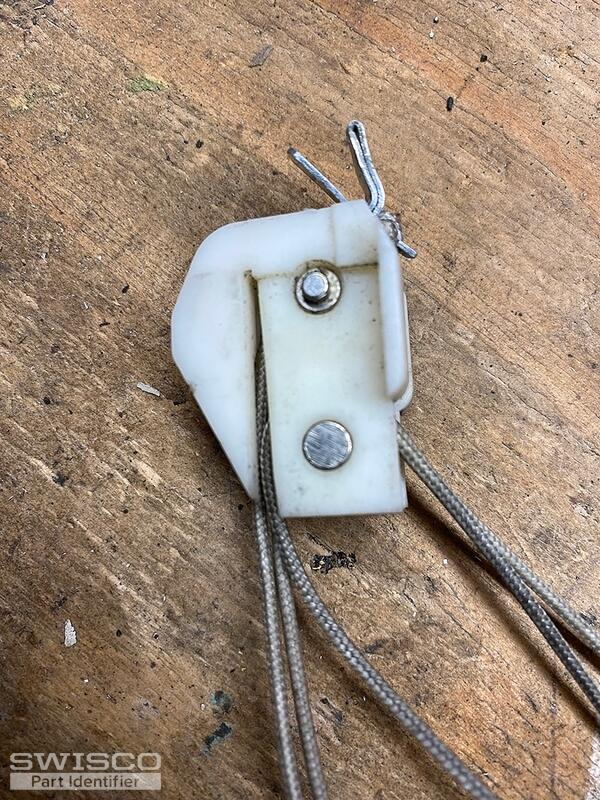

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 7/8" which is what makes it custom. For example, the metal channel should measure 14-7/8" long. Can you confirm that for us? Can you also show us a photo of the top fitting for this balance?

Handy Person from Arcata, CA

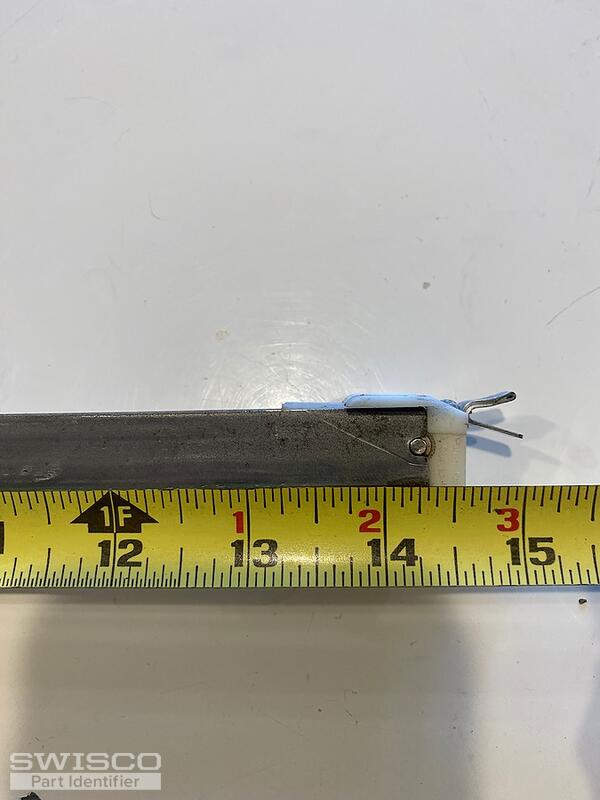

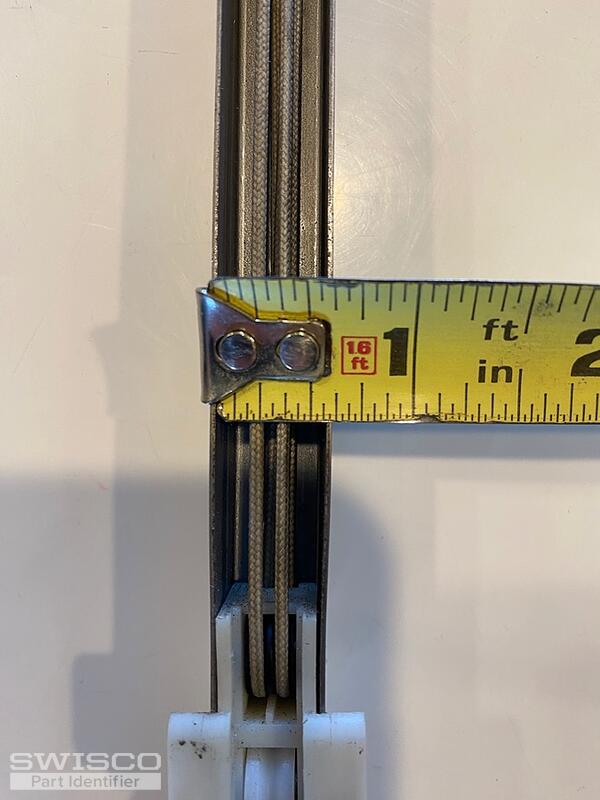

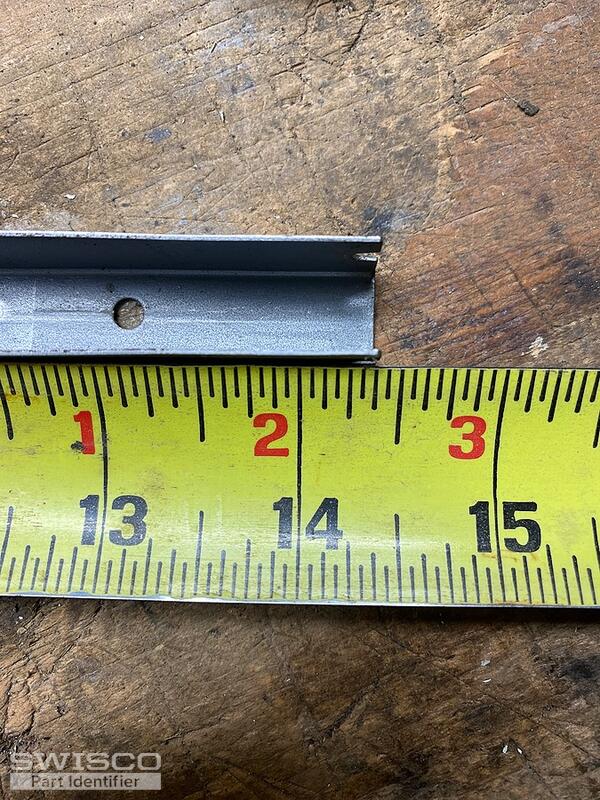

Thanks for getting back to me.  The metal channel itself is 14-3/8 inches.  The total length of the balance with ends is 15-1/2 inches.

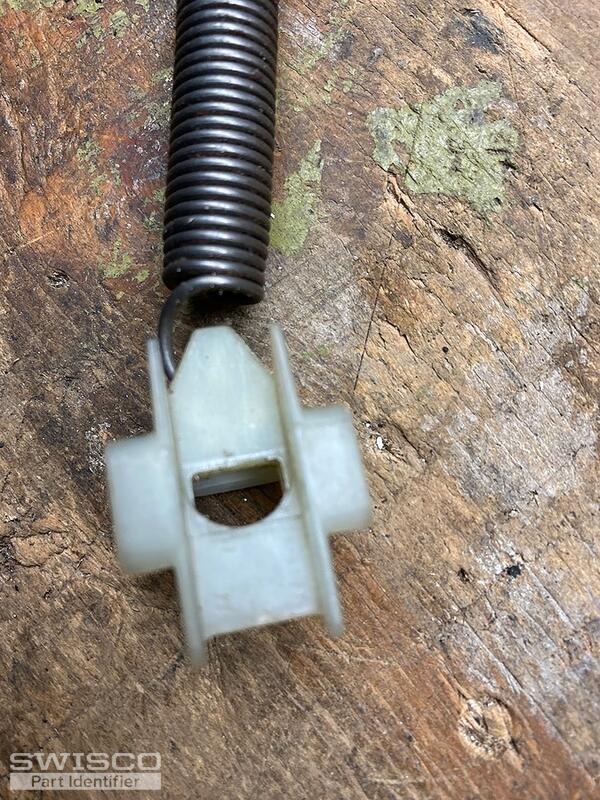

Photos attached.
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hmm, I wasn't expecting that measurement. Our balances are only designed to replace those with metal channel lengths that match. I know it seems like a small measurement but these are precise systems and custom orders are nonrefundable so we aren't optimistic they'd work.

Let us know if you're still interested and we can send over a purchase link and price quote.
