The metal u channel is 37" long.

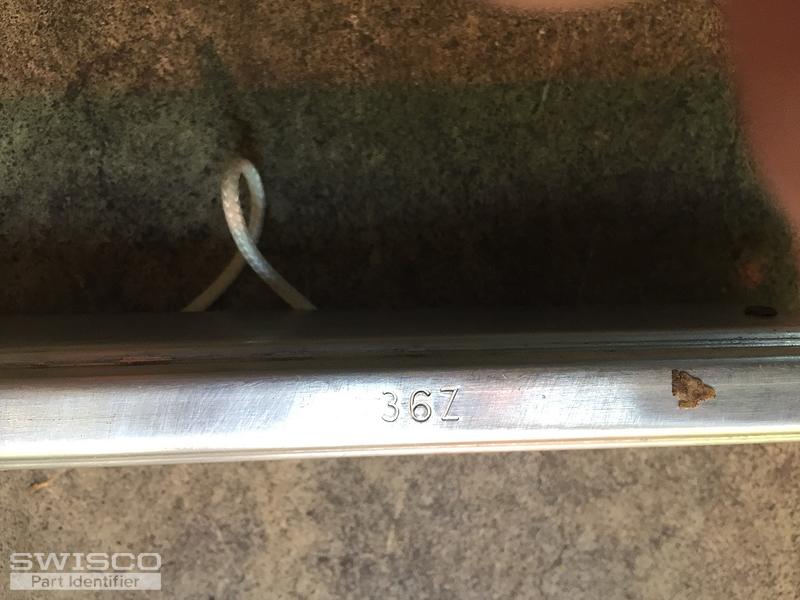

Only marking on channel is "36Z"

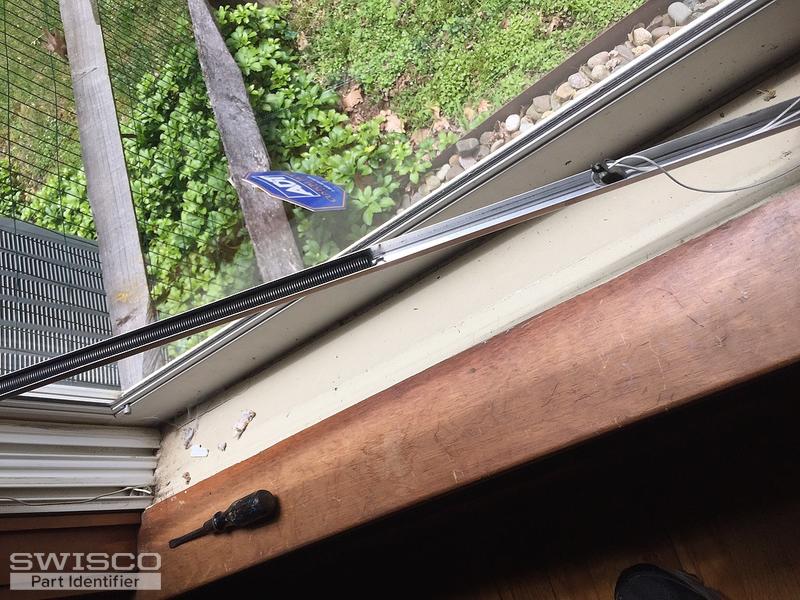

The pulley ear that connects to the spring broke out.
The plastic stops at the top of the track on both sides are broken.
The width of the track is 9/16".
The window itself has triangled studs one one each side.
Are the parts available for the window balance system or are the assemblies available,
Thank You,
Jay
Window balance tracks
Quick Learner from Pa
Jun 17, 2020 12:45 pm
4 user uploaded images
4 Replies
Tom from SWISCO
Jun 22, 2020 11:32 am

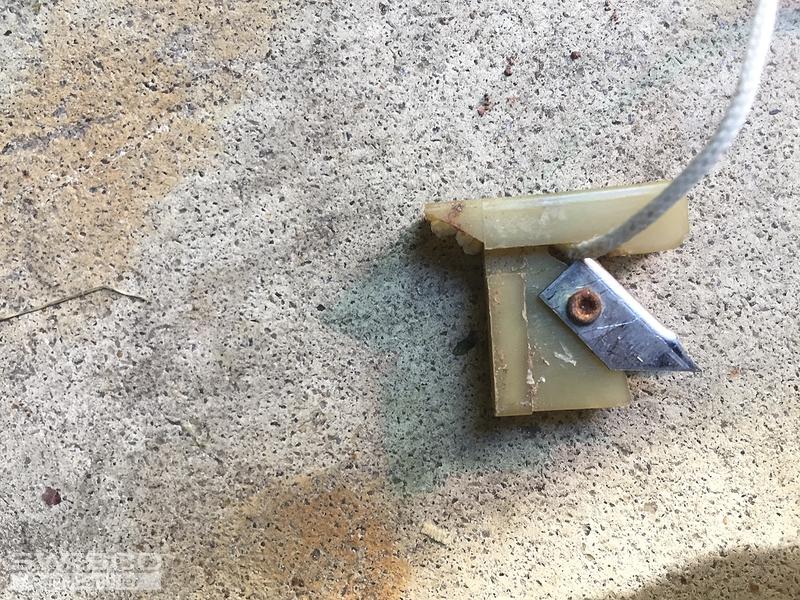

Hello, Jay. We may have a replacement for this balance, but I can't tell what type you have from this photo. It's too damaged to identify. Do you have an identical window in the house that has undamaged parts? If so, please remove one balance form that window and take a couple more pictures for us to review. I specifically need to see the top end, bottom end, the shoe at the end of the cord, and the stamp. Thank you!
Quick Learner from Pa
Jun 22, 2020 12:20 pm
Tom,

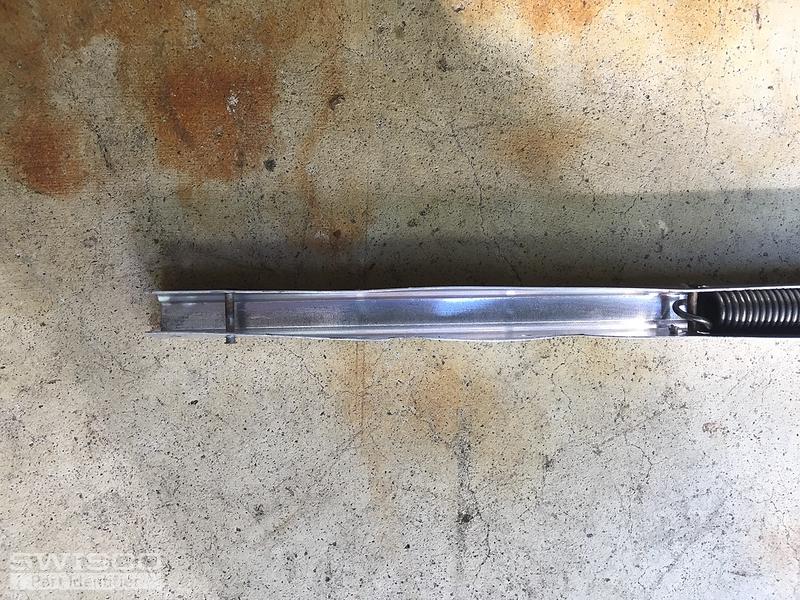

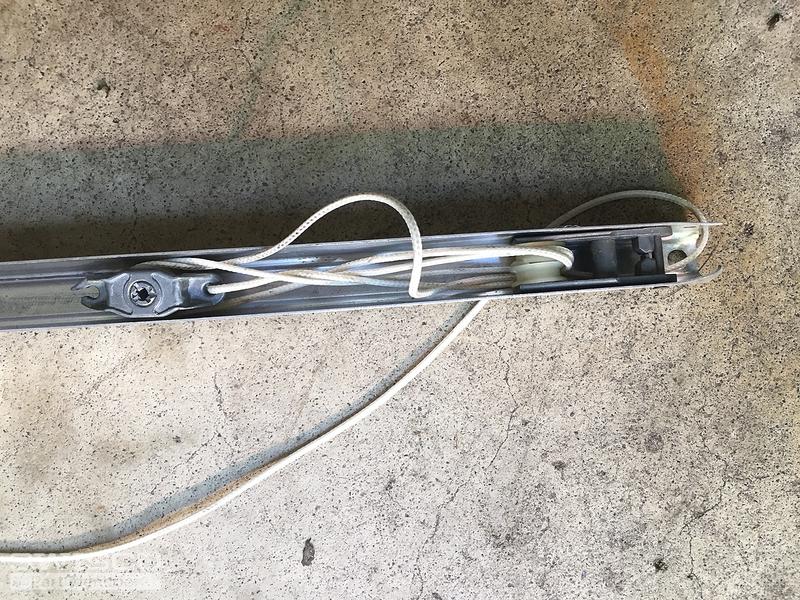

I took closer pics of the balance channel I removed. As you can see, the eye hole broke out which caused the problem to start with.
Let me know if you need anything else.
Thank You,
Jay
I took closer pics of the balance channel I removed. As you can see, the eye hole broke out which caused the problem to start with.
Let me know if you need anything else.
Thank You,
Jay
4 user uploaded images
Tom from SWISCO
Jun 22, 2020 1:16 pm
Thank you! These pictures are a huge help. Your balance looks like it'd be a good match for our S751-37. Look it over and see if you agree. The only thing I'm not sure about is the stamp. 36Z doesn't match any of ours, but one of them may still work regardless. I recommend weighing your sash on a scale and referring to the chart on the S751-37 store page to confirm which of ours will work.
