Window balance weights

Home Owner from South Lyon, MI

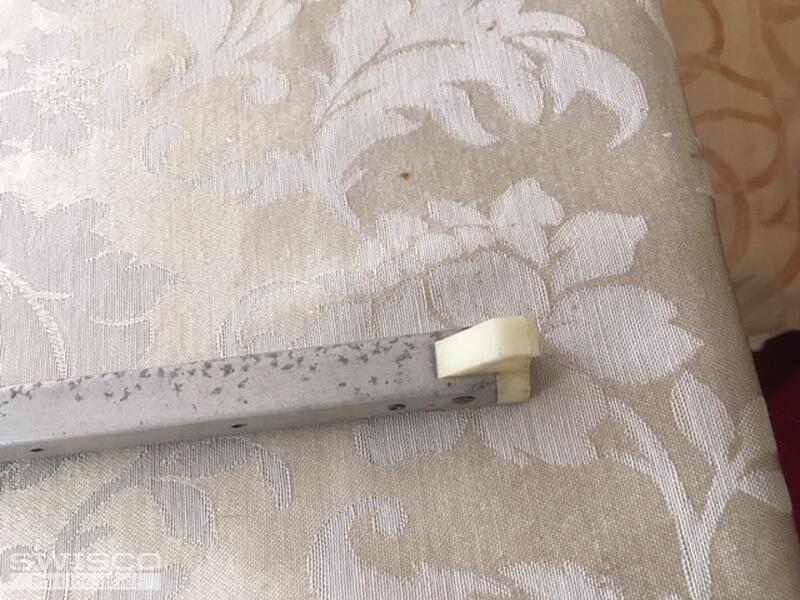

I would like to identify the type of mechanism for my windows, see pictures.
The total measured length is 23.3 inches and includes the two end hooks.
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

We can help but this will have to be a custom order as we don't have a stock balance with this configuration. Before we go any further, I'll need you to confirm the depth of your bottom shoe. It should be either our 15-001 or 15-002 but you'll need to measure as shown below and let me know which is best. Can you also tell me how many balances you'll need? Finally, we'll need you to confirm the length of your metal channel. Make sure to not include the end fittings in this measurement!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Home Owner from South Lyon, MI
Hi,
Thank you for your response.
The depth of the bottom shoe is 1 1/8 "
The length of the metal channel is 23"
I would need 24 pieces, for 12 windows.
Emily
Emily from SWISCO
SWISCO
Expert

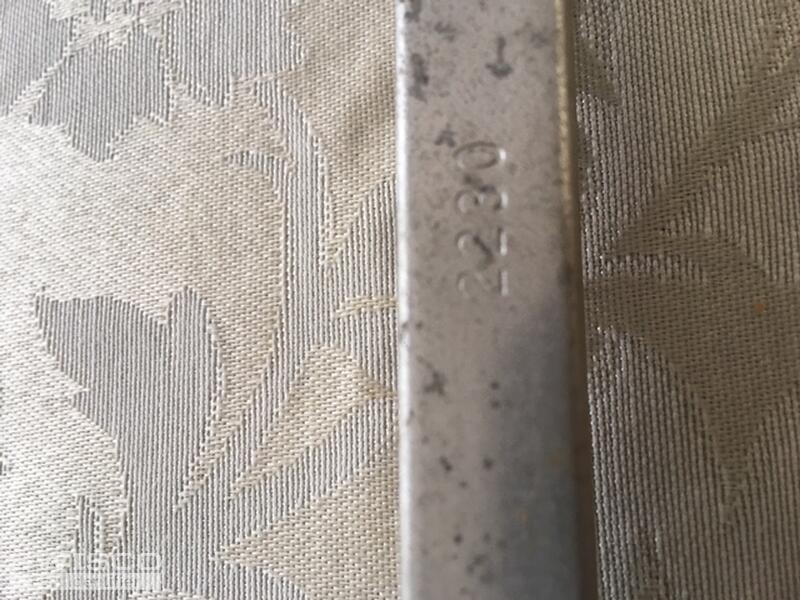

Thanks very much! To outline this for you, we'll be using a 23" long channel with the 19-015 top, 15-001 bottom fitting and 2230 stamp. With that said, I'm going to email you a purchase link and price quote for 24 balances that you can use to place an order on our website. Let me know if you have any questions!
