Window balancer

Home Owner from La Jolla CA 92037
Jun 28, 2024 2:26 am

Hi,

Would you please help with the parts?

Thank you,

Thanh

IMG_9942 IMG_8837
2 user uploaded images
8 Replies
Casey
Casey from SWISCO
Jun 28, 2024 2:54 pm
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but we would need to see the balance fully removed from the window to compare to our inventory. Please make sure to include both end fittings and the clip at the end of the pulley cord. Thank you!

Home Owner from La Jolla CA 92037
Jun 28, 2024 11:58 pm
Hello Casey,

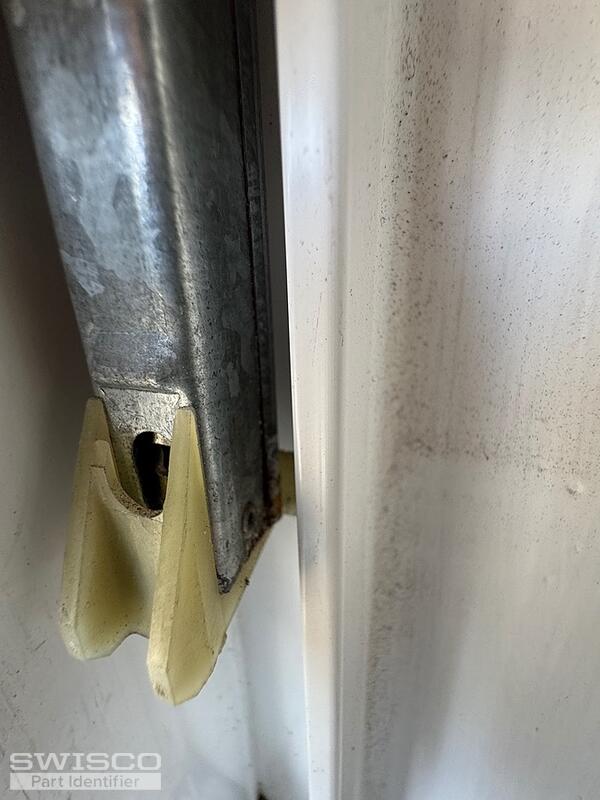

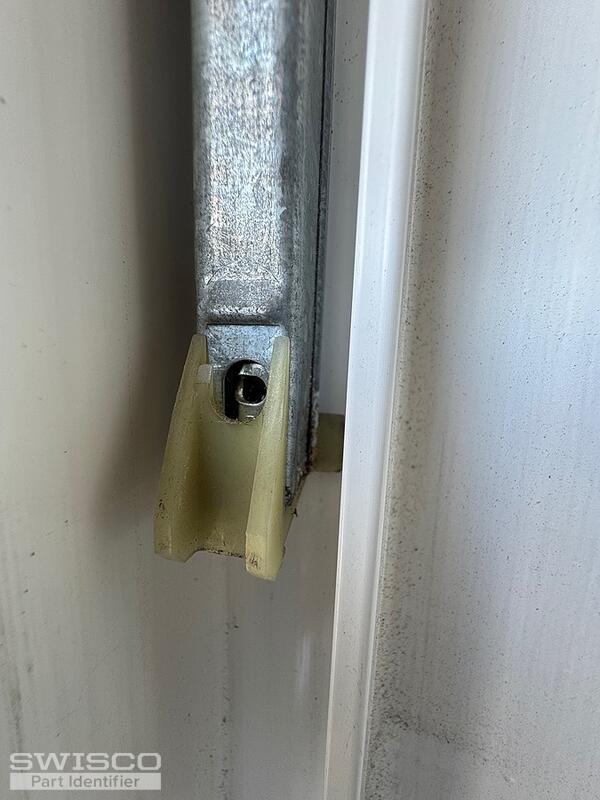

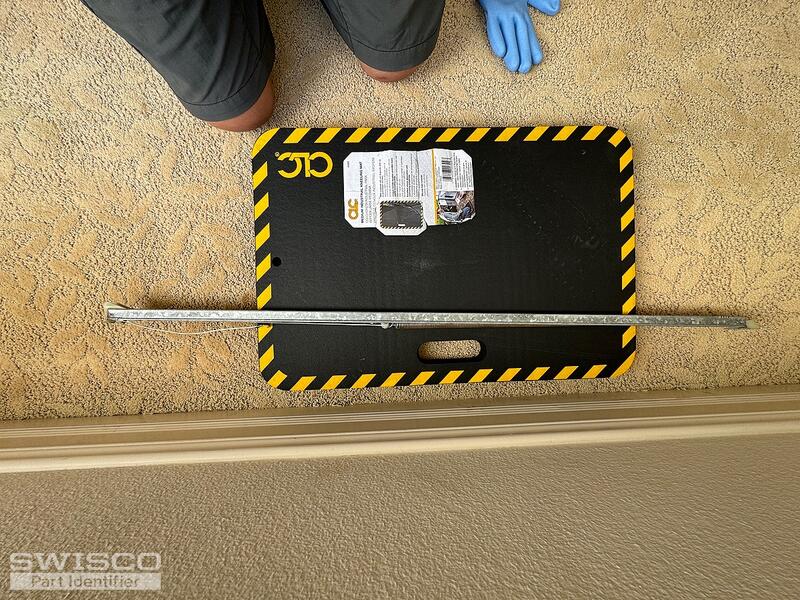

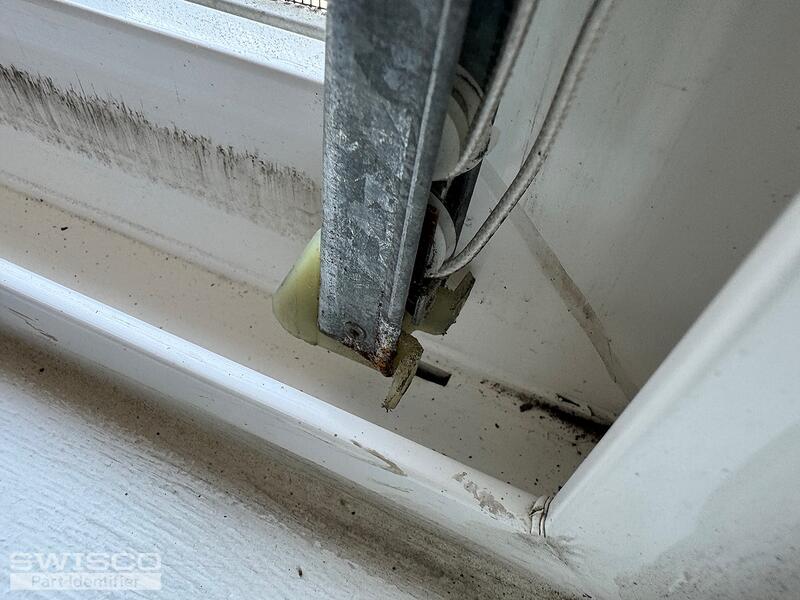

I am sending more pictures.
Thank you.
Thanh
IMG_9944 IMG_9941 IMG_8839 IMG_8836 IMG_8844
5 user uploaded images
Casey
Casey from SWISCO
Jul 1, 2024 8:43 am
SWISCO
EXPERT

Thanks for getting back to us, but I cannot confirm if your top fitting has wings like the bottom while it is still inside the window jamb. If you could confirm, that would help us narrow down your options.

Home Owner from La Jolla CA 92037
Jul 1, 2024 2:48 pm
Hello Casey,

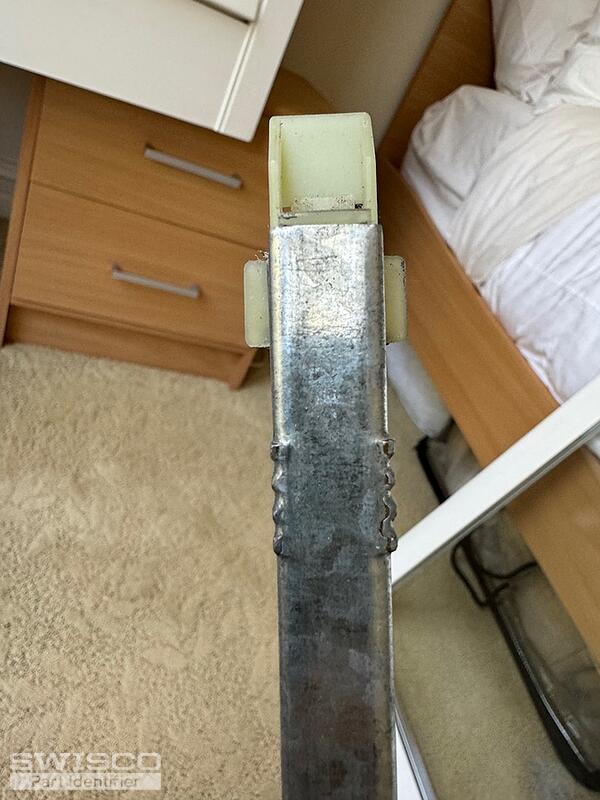

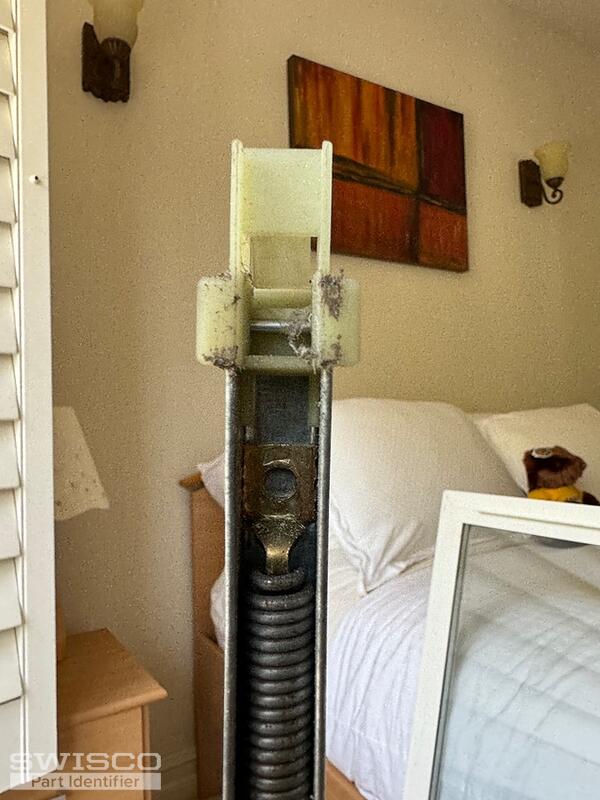

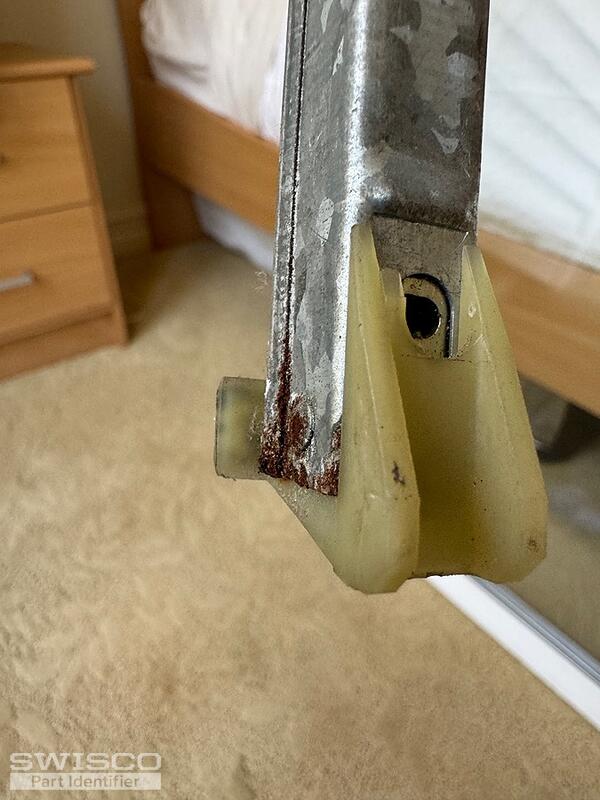

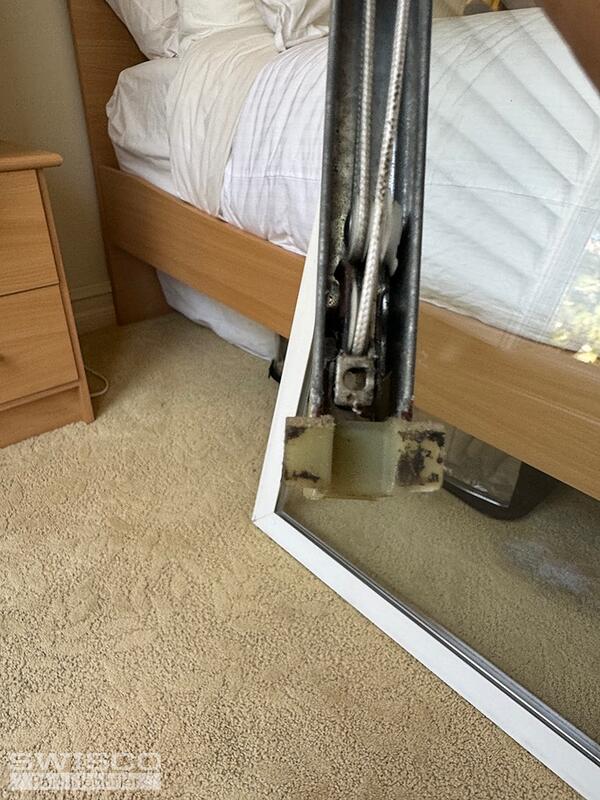

The top does have wings like the bottom. Please see attached pictures for the top and bottom.
Thanks so much.
Thanh
IMG_0406 IMG_0412 IMG_0409 IMG_0411
4 user uploaded images
Casey
Casey from SWISCO
Jul 1, 2024 3:29 pm
SWISCO
EXPERT

With this combination of attachments, you could have either the S380-34 or S385-34 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 3330 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Home Owner from La Jolla CA 92037
Jul 1, 2024 5:49 pm
Hello Casey,
Isn't ok if I can buy one of each and return the not used one?
Thanks so much for your expertise.
Thanh
Home Owner from La Jolla CA 92037
Jul 1, 2024 9:38 pm
Hello Casey,
I measured and it is 1 inch so I will order 380 x 2 with 3330 option.
Thanks so much.
Thanh
Casey
Casey from SWISCO
Jul 2, 2024 8:02 am
SWISCO
EXPERT

Great, I'm happy to hear that you were able to determine the correct match. If you run into any issues, our return policy can be found here
