Window balancer "32 4 HQ CALDWELL" : SWISCO.com

Quick Learner from CA

Aug 9, 2023 2:26 pm

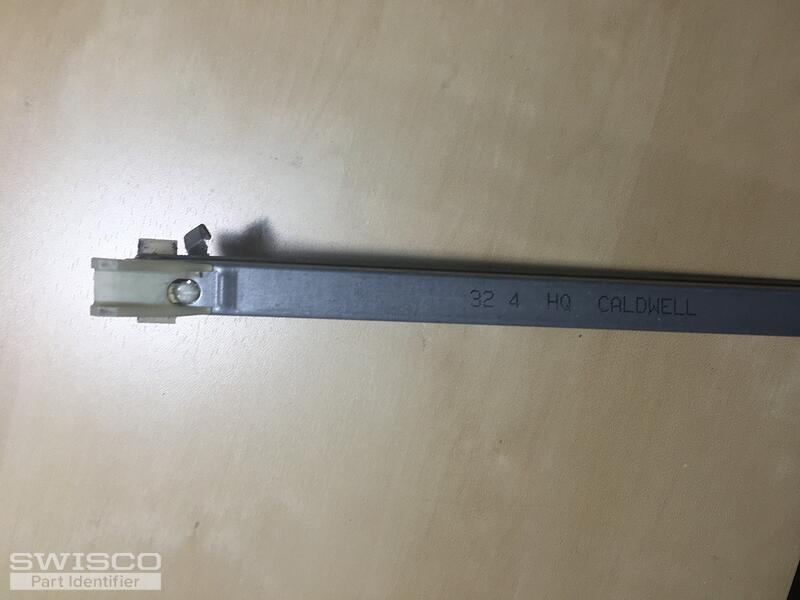

Hi, to replace window balancer. It has "32 4 HQ CALDWELL" printed on the side. Could you please show me which part should i pick?
Thanks.
Warren

2 user uploaded images

5 Replies

Quick Learner from CA

Aug 9, 2023 2:50 pm

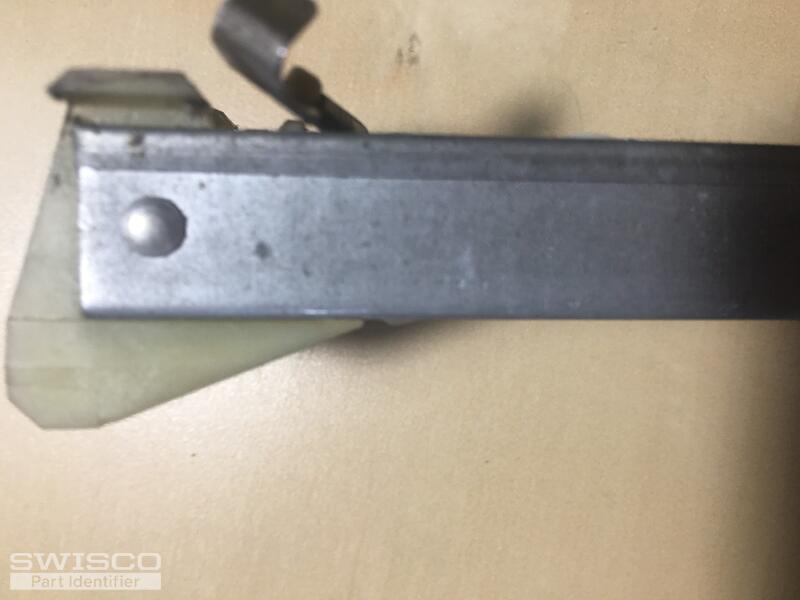

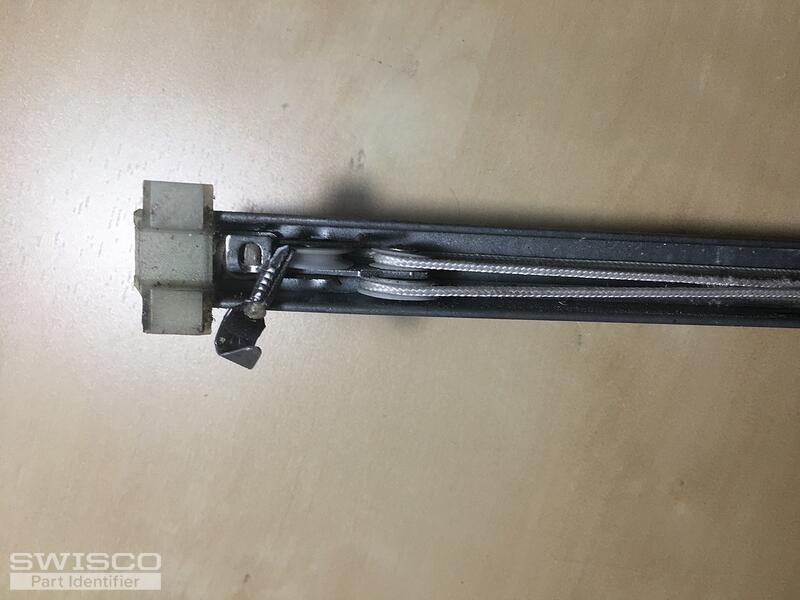

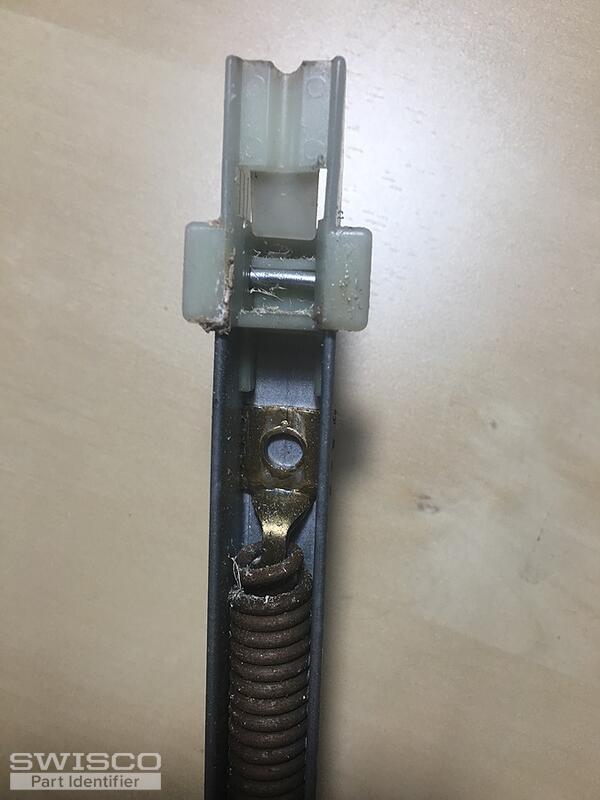

Adding 5 more pictures.
Thanks.
Warren

5 user uploaded images

Emily from SWISCO

Aug 11, 2023 11:23 am

Hello, Warren.

I recommend you take a look at the S380-33 or S385-33 channel balances depending on the depth of the bottom fitting. I also recommend the 3240 option based on your 32 4 stamp. If you have any questions just let me know!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from CA

Aug 14, 2023 8:03 pm

Emily:
Thanks very much. Does the S380-33 includes the end-piece 15-005? Like to make sure I don't need to order any additional part(s) separately.
Thanks.
Warren

Emily from SWISCO

Aug 15, 2023 7:49 am

Yes! The Series 380 comes fully assembled with both the top and bottom fittings.
